Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Body and Frame >> Paint, Striping and Decals >> Paint >> Locations

Paint: Locations

BODY COLORING

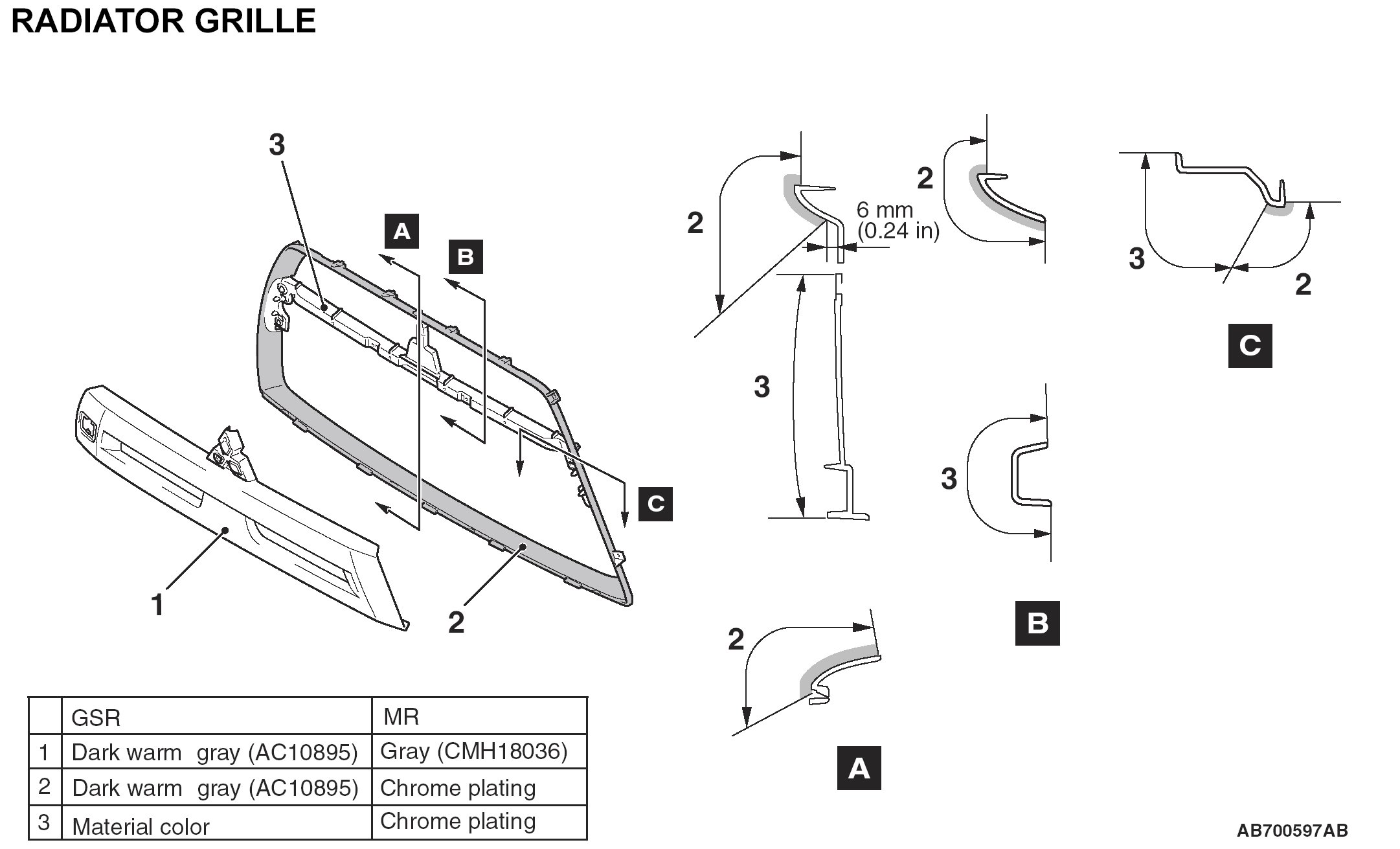

RADIATOR GRILLE

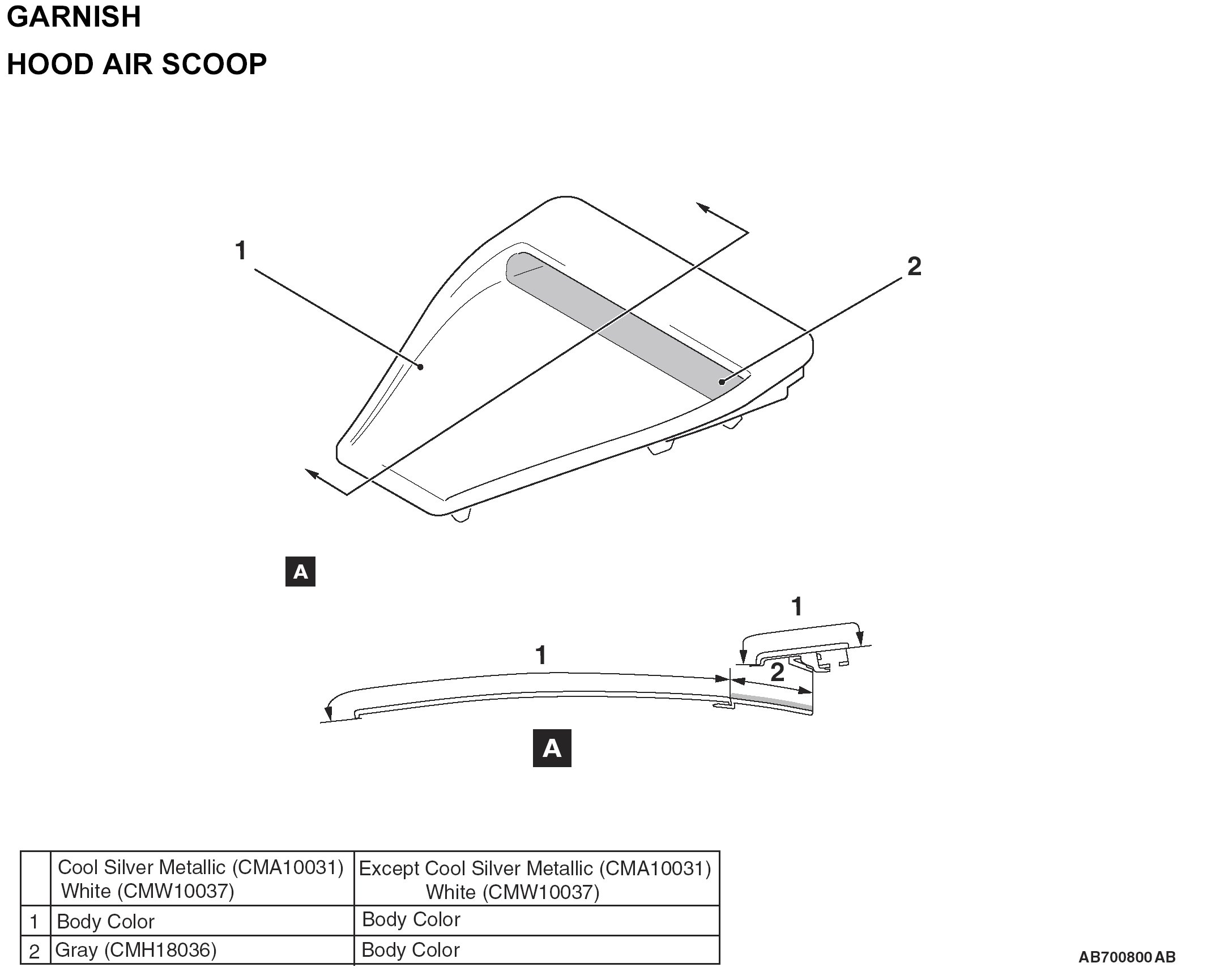

GARNISH

HOOD AIR SCOOP

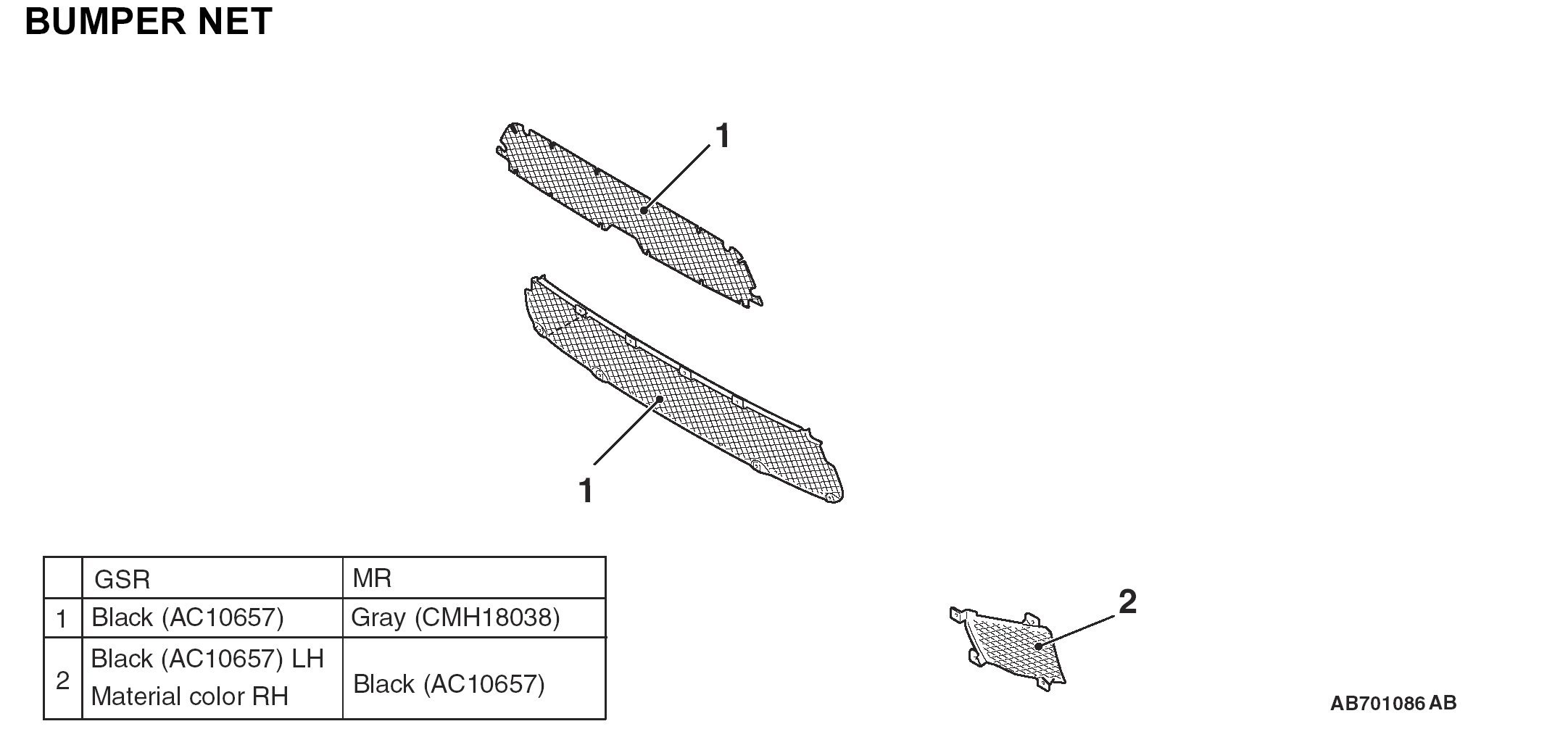

BUMPER NET

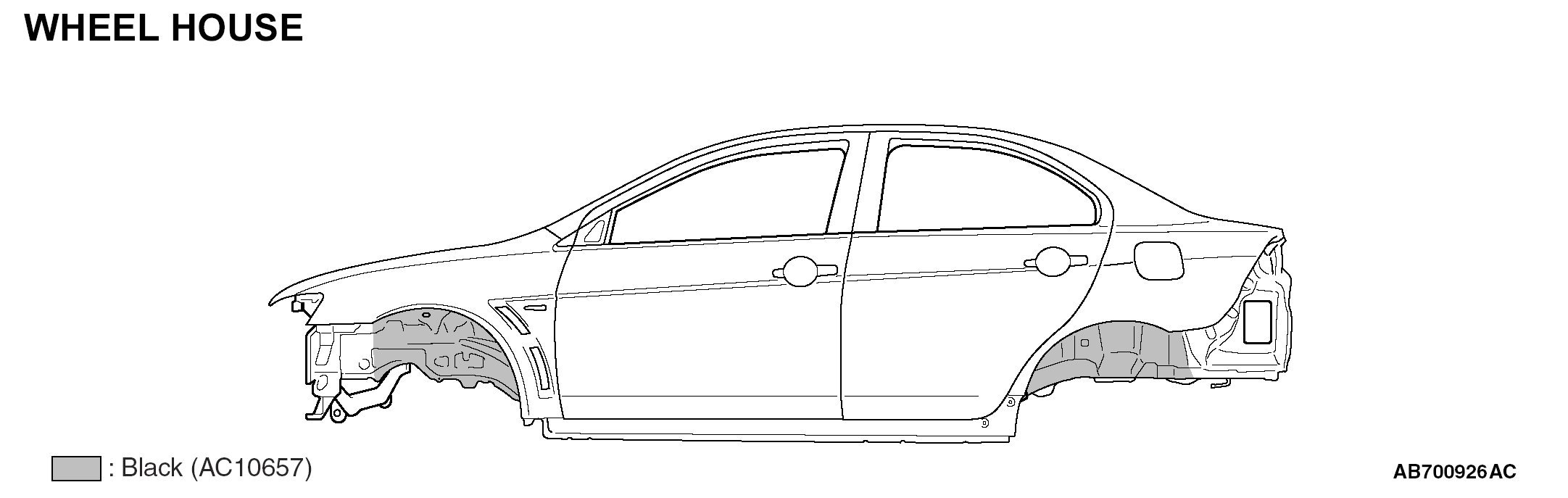

WHEEL HOUSE
