Component Tests and General Diagnostics

INSPECTION

REMOTE CONTROLLED MIRROR OPERATION CHECK

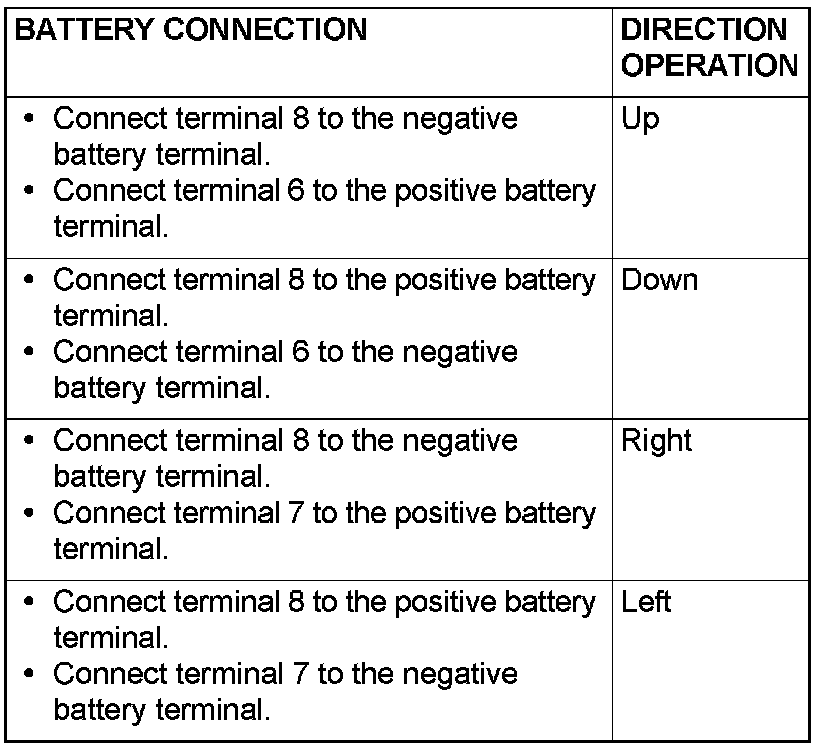

Check that the mirror moves as described in the table when each terminal is connected to the battery.

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK

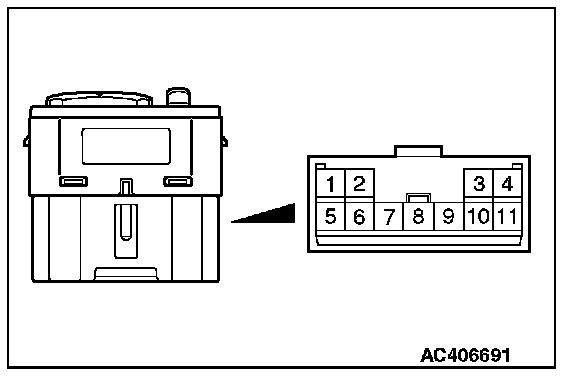

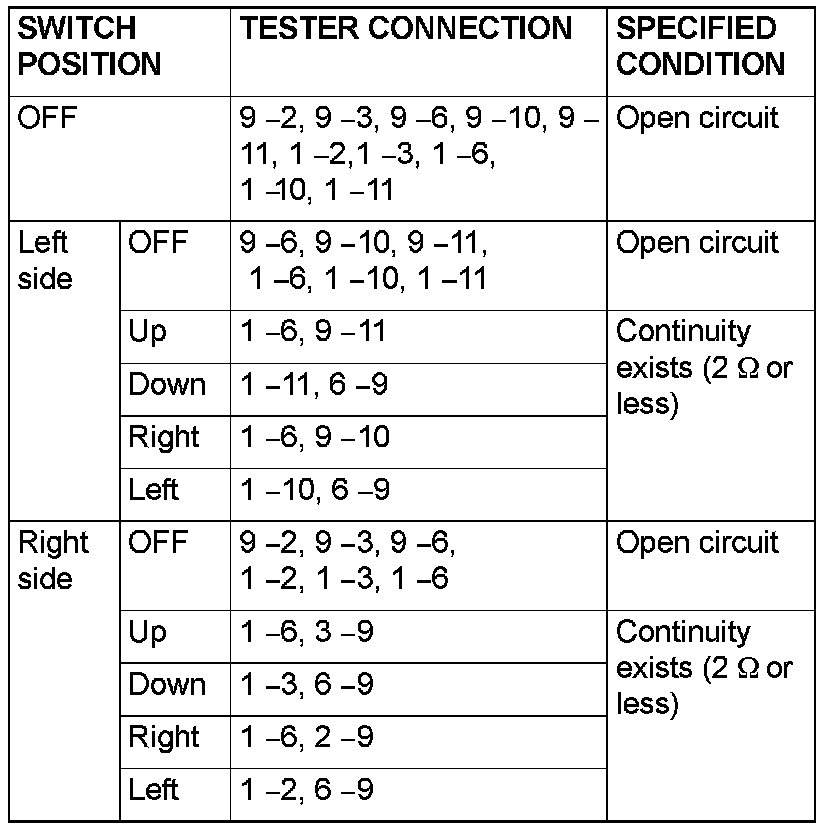

Check the continuity between the switch terminals.

HEATED DOOR MIRROR CHECK

CAUTION: When relocating the car between locations with extremely different temperatures (warm and cold), leave the car in the location for a while to adapt to the temperature prior to checking it.

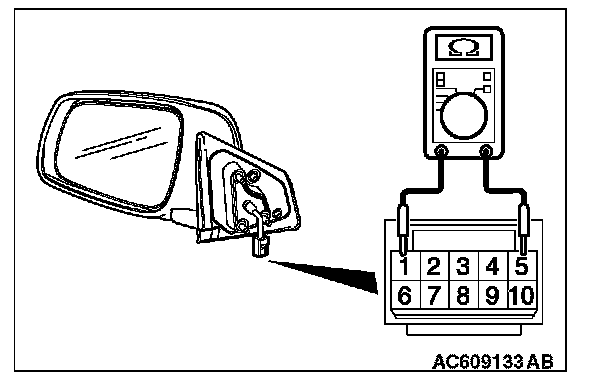

Check that the resistance value between the connector terminals is at the standard value.

Standard value: 8.4 ± 1.2 Ohms at 25°C (77°F)
