Symptom Chart

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

TROUBLE SYMPTOM CHART

CAUTION: During diagnosis, a diagnostic trouble code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, check all systems for diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

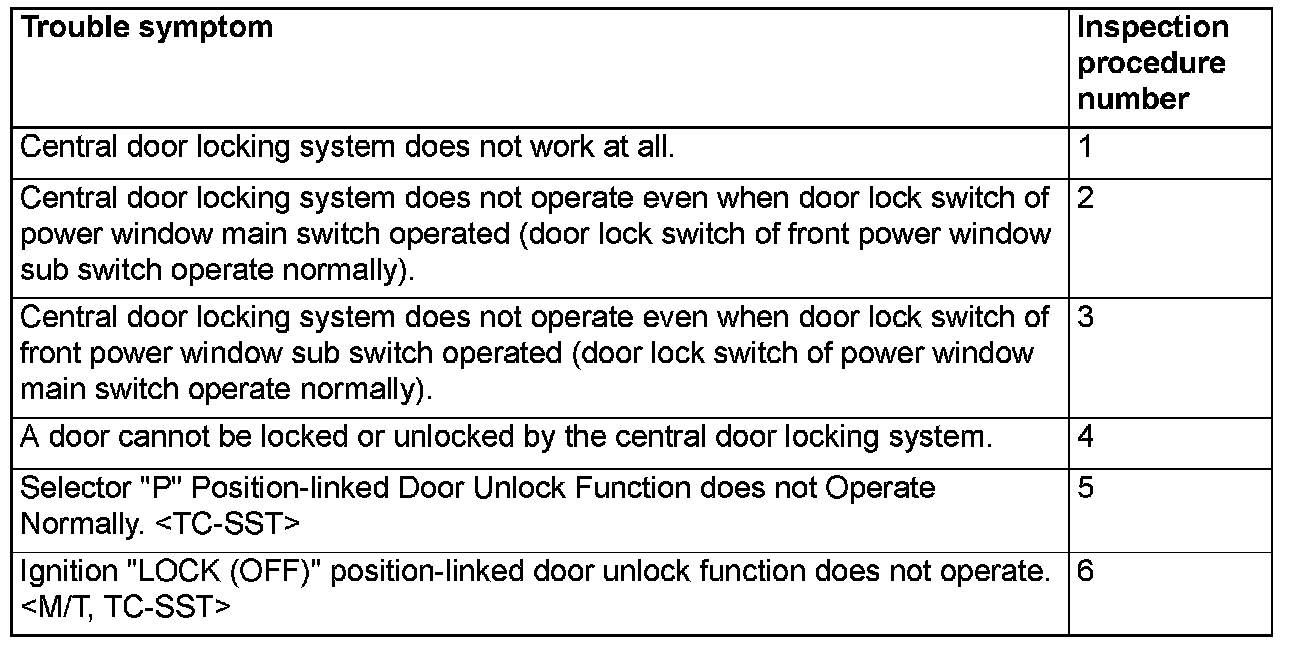

Trouble Symptom Chart:
