Power Door Lock Switch
>>
Testing and Inspection
>>

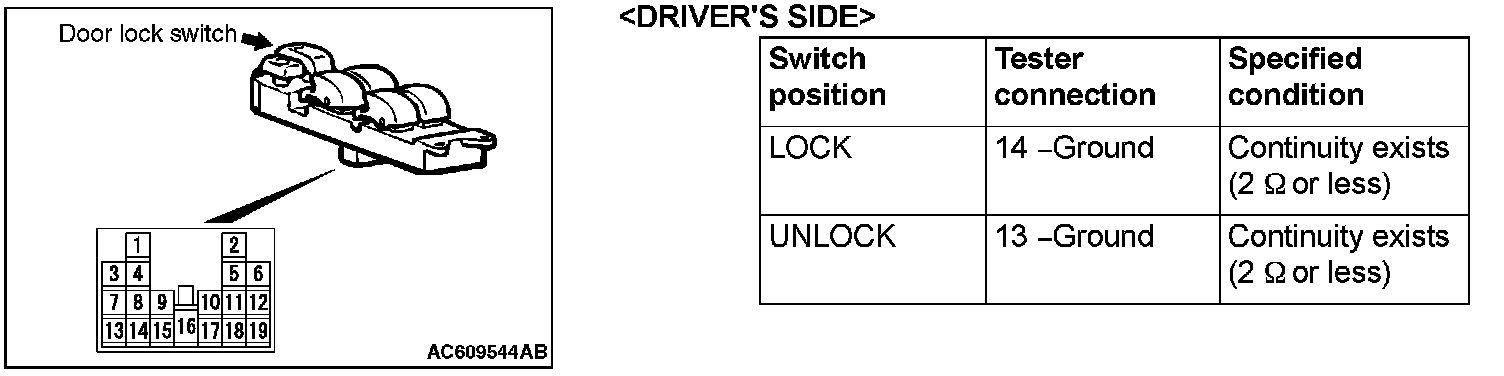

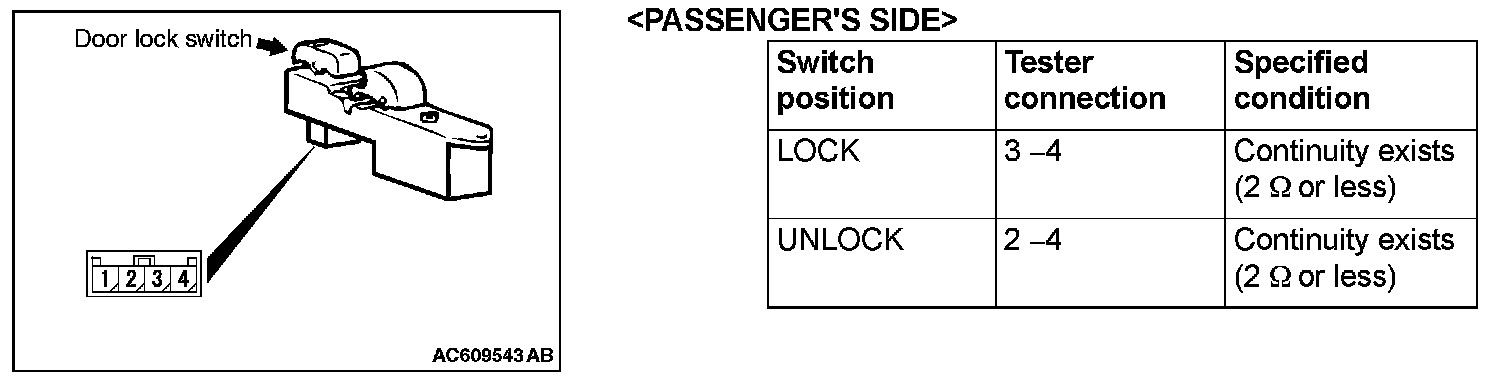

Central Door Lock Switch Continuity Check
Central Door Lock Switch Continuity Check
CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK
Remove the
power window switch
.
