Inspection Procedure 12

Inspection Procedure 12: Front Passenger's Door Unlock Sensor Does Not Work.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

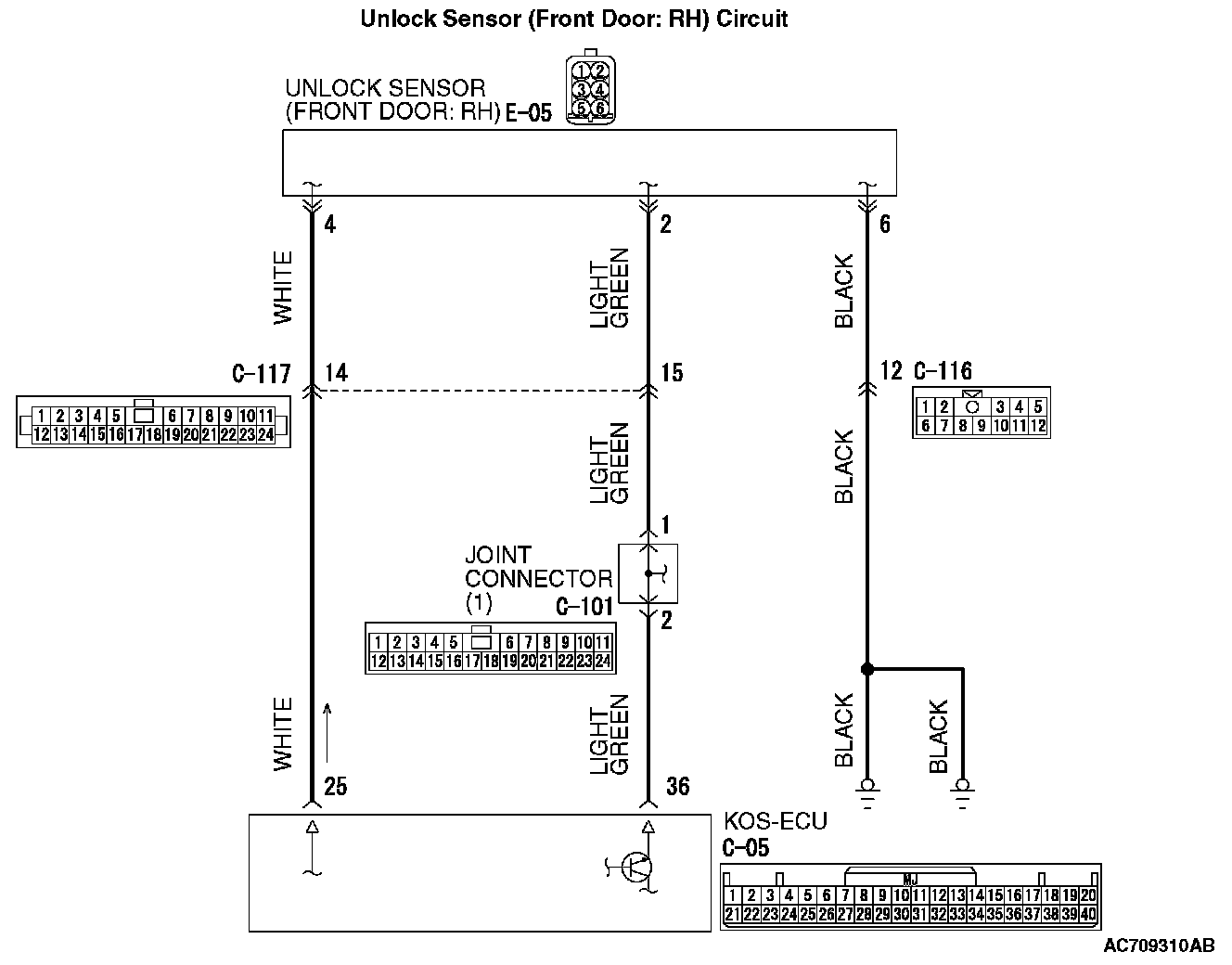

Unlock Sensor (Front Door: RH) Circuit (Part 1):

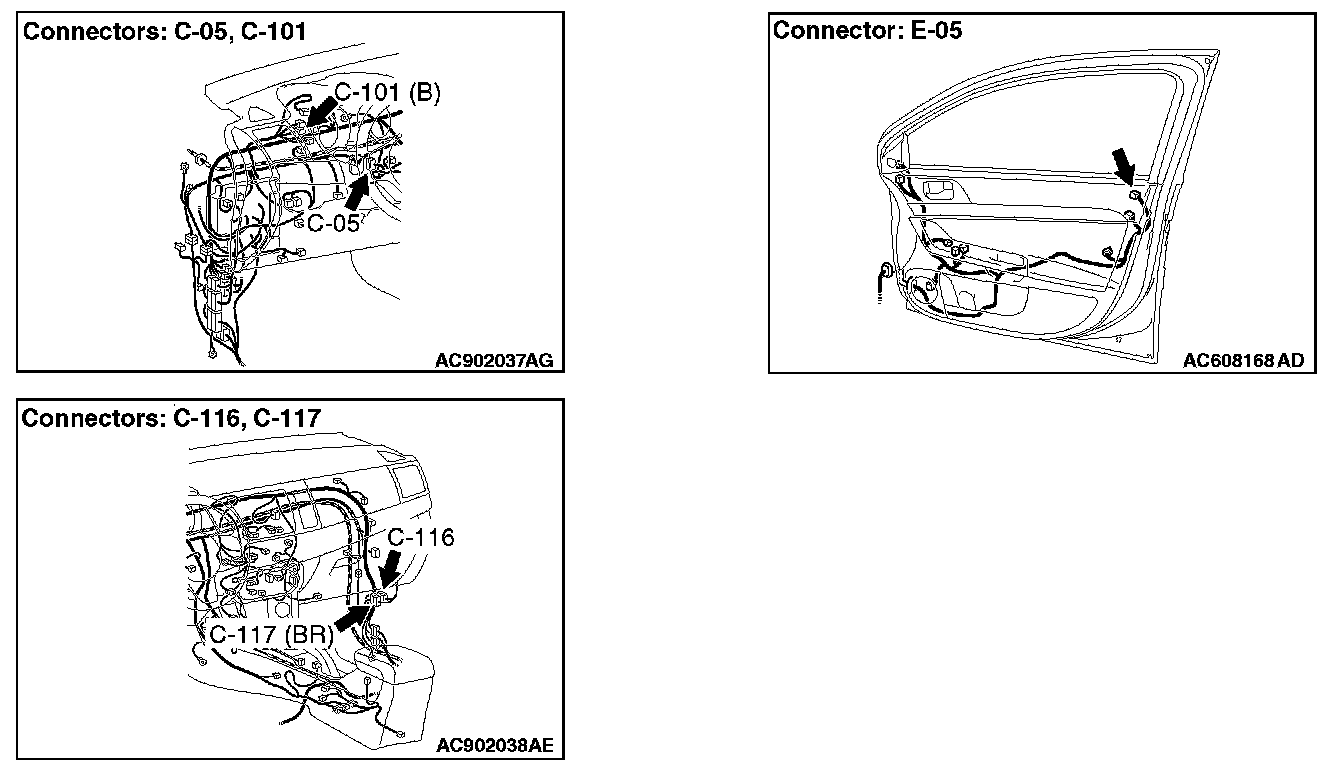

Unlock Sensor (Front Door: RH) Circuit (Part 2):

TROUBLESHOOTING HINTS
- Malfunction of the exterior transmitter antenna assembly (front passenger's side)
- Malfunction of the unlock switch (front door: RH)
- Damaged wiring harness and connectors
- Malfunction of the KOS-ECU

DIAGNOSIS

Required Special Tools:
- MB992006: Extra fine probe
- MB991223: Harness set
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.







1. Connect scan tool MB991958. Refer to "How to connect scan tool (M.U.T.-III)." How To Connect The Scan Tool (M.U.T.-III)
2. Turn the ignition switch to the "ON" position.
3. Check whether the KOS-ECU related DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the KOS-ECU. Diagnostic Trouble Code Descriptions

NO : Go to Step 2.

STEP 2. Check KOS-ECU connector C-05 and unlock sensor (front door: RH) connector E-05 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are KOS-ECU connector C-05 and unlock sensor (front door: RH) connector E-05 in good condition?

YES : Go to Step 3.

NO : Repair or replace the damaged component(s). Check that the passenger's door unlock sensor works normally.

STEP 3. Check the wiring harness between KOS-ECU connector C-05 (terminal Nos. 25 and 36) and unlock sensor (front door: RH) connector E-05 (terminal Nos. 4 and 2), and between unlock sensor (front door: RH) connector E-05 (terminal No.6) and ground.

- Check the signal and ground wires for open circuit.

NOTE: Also check joint connector (1) C-101, intermediate connectors C-116, C-117 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If joint connector (1) C-101, intermediate connectors C-116, C-117 is damaged, repair or replace the damaged component(s).

Q: Are the wiring harness between KOS-ECU connector C-05 (terminal Nos. 25 and 36) and unlock sensor (front door: RH) connector E-05 (terminal Nos. 4 and 2), and between unlock sensor (front door: RH) connector E-05 (terminal No.6) and ground in good condition?

YES : Go to Step 4.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Check that the passenger's door unlock sensor works normally.

STEP 4. KOS communication test

Using scan tool (M.U.T-III), perform the antenna communication test to check that the exterior transmitter antenna (passenger's side) communicates normally.

Q: Is the check result normal?

YES : Go to Step 5.

NO : Perform troubleshooting for the diagnostic trouble code No.B240B. B240B

STEP 5. Check of the troubles

Operate the unlock sensor (front door: RH) and check that the door can be locked.

Q: Is the check result normal?

YES : The diagnosis is complete.

NO : Replace KOS-ECU and register the ID codes.
