Console: Service and Repair

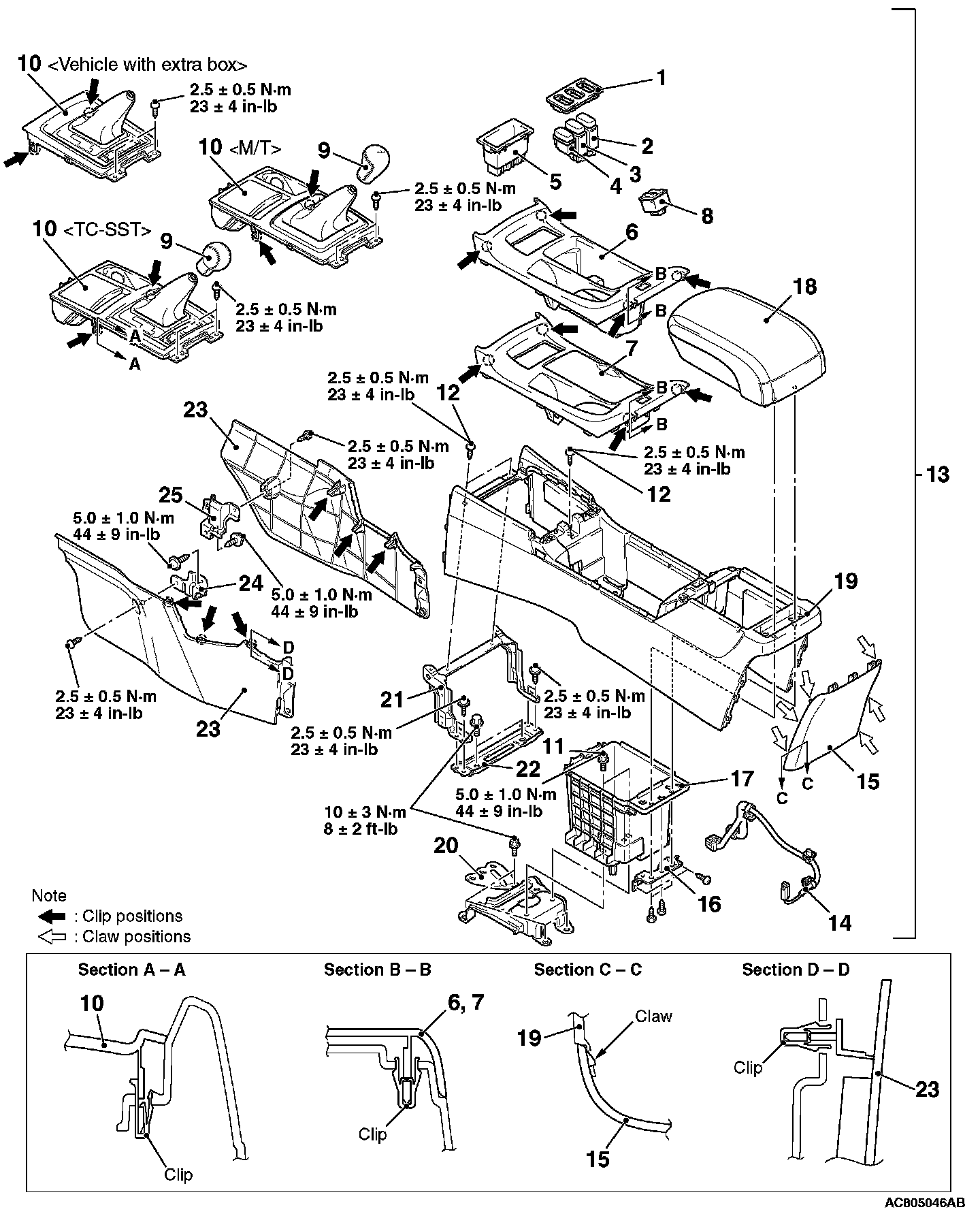

FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

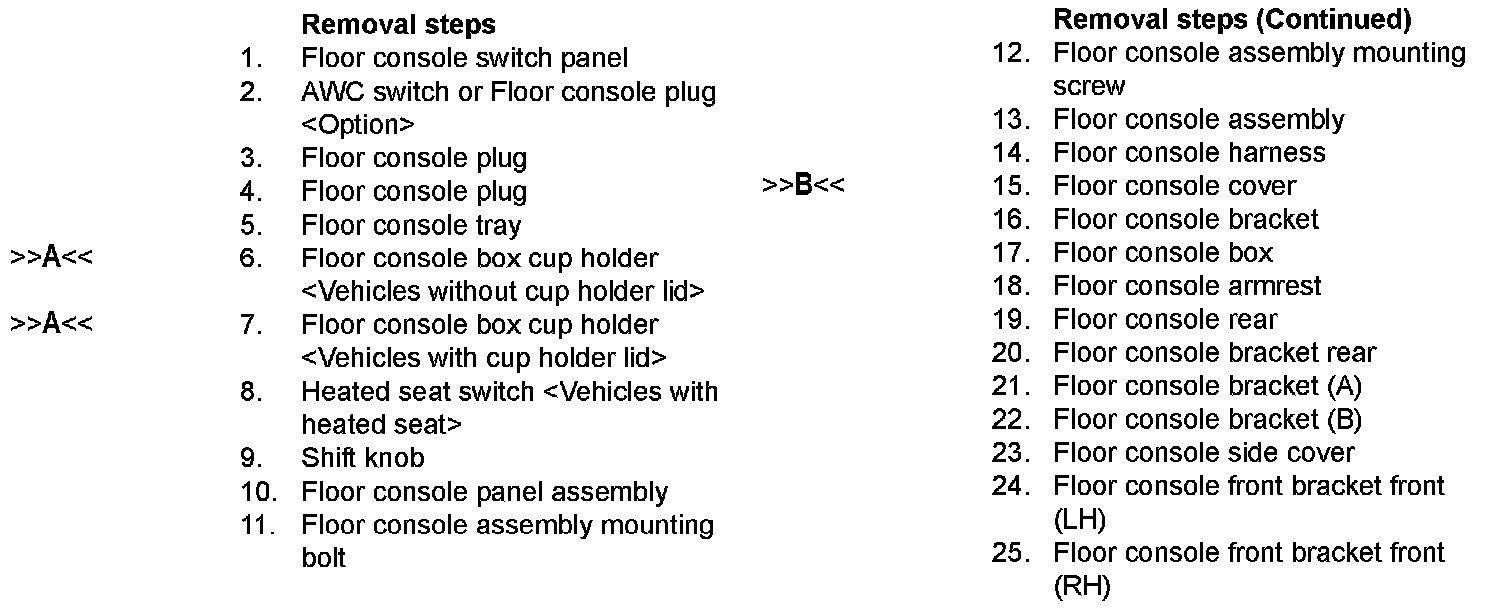

Removal Steps 1-25:

REASSEMBLY SERVICE POINTS

]]A[[ FLOOR CONSOLE BOX CUP HOLDER REASSEMBLY

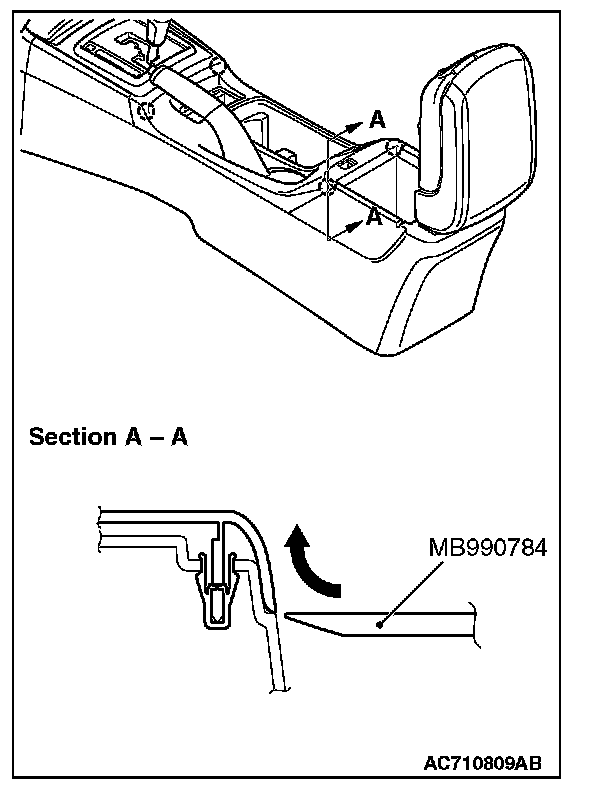

Remove by using special tool MB990784 (ornament remover) as shown in the figure.

]]B[[ FLOOR CONSOLE COVER REASSEMBLY

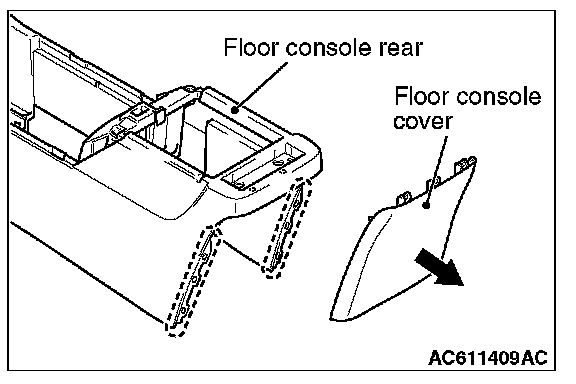

Floor console rear ends (shown in the dotted lines) may damage when removing the floor console cover. You can neglect this damage and floor console rear is reusable.
