Symptom Related Diagnostic Procedures

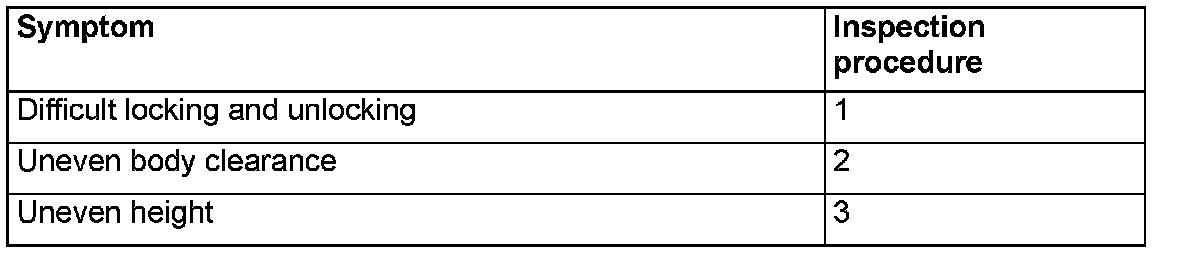

TROUBLE SYMPTOM CHARTTrouble Symptom Chart:
SYMPTOM PROCEDURES
INSPECTION PROCEDURE 1: Difficult Locking and Unlocking
DIAGNOSIS
STEP 1. Check the release cable routing condition.
Q: Is the release cable routing condition good?
YES: Go to Step 3.
NO: Repair the release cable routing, then go to Step 2.
STEP 2. Check the engagement of the trunk lid latch and trunk lid striker.
Q: Are the trunk lid latch and trunk lid striker engaged correctly?
YES: Then go to Step 3.
NO: Adjust the trunk lid striker.
STEP 3. Retest the system.
Q: Does the trunk lid lock operate easily?
YES: The procedure is complete.
NO: Return to Step 1.
INSPECTION PROCEDURE 2: Uneven Body Clearance
DIAGNOSIS
STEP 1. Check the clearance around the trunk lid.
Q: Are the apertures between the trunk lid and the adjacent body panels aligned correctly?
YES: Then go to Step 2.
NO: Adjust the trunk lid panel assembly.
STEP 2. Retest the system.
Q: Are the clearances between the body panels even?
YES: The procedure is complete.
NO: Return to Step 1.
INSPECTION PROCEDURE 3: Uneven Height
DIAGNOSIS
STEP 1. Check the trunk lid height.
Q: Is the trunk lid hinge height proper?
YES: Then go to Step 2.
NO: Adjust the trunk lid hinge.
STEP 2. Retest the system.
Q: Are the trunk lid and body height even?
YES: The procedure is complete.
NO: Return to Step 1.
