Trunk / Liftgate: Service and Repair
TRUNK LIDREMOVAL AND INSTALLATION
CAUTION:
- Do not disassemble or throw the trunk lid gas spring into fire.
- Punch a hole in the trunk lid gas spring before disposal to release the gas inside.
- Ensure the trunk lid gas spring piston rod does not come into contact with foreign material.

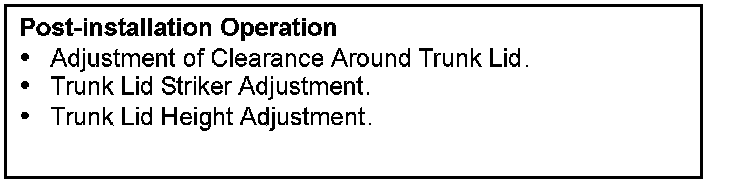

Post-installation Operation:

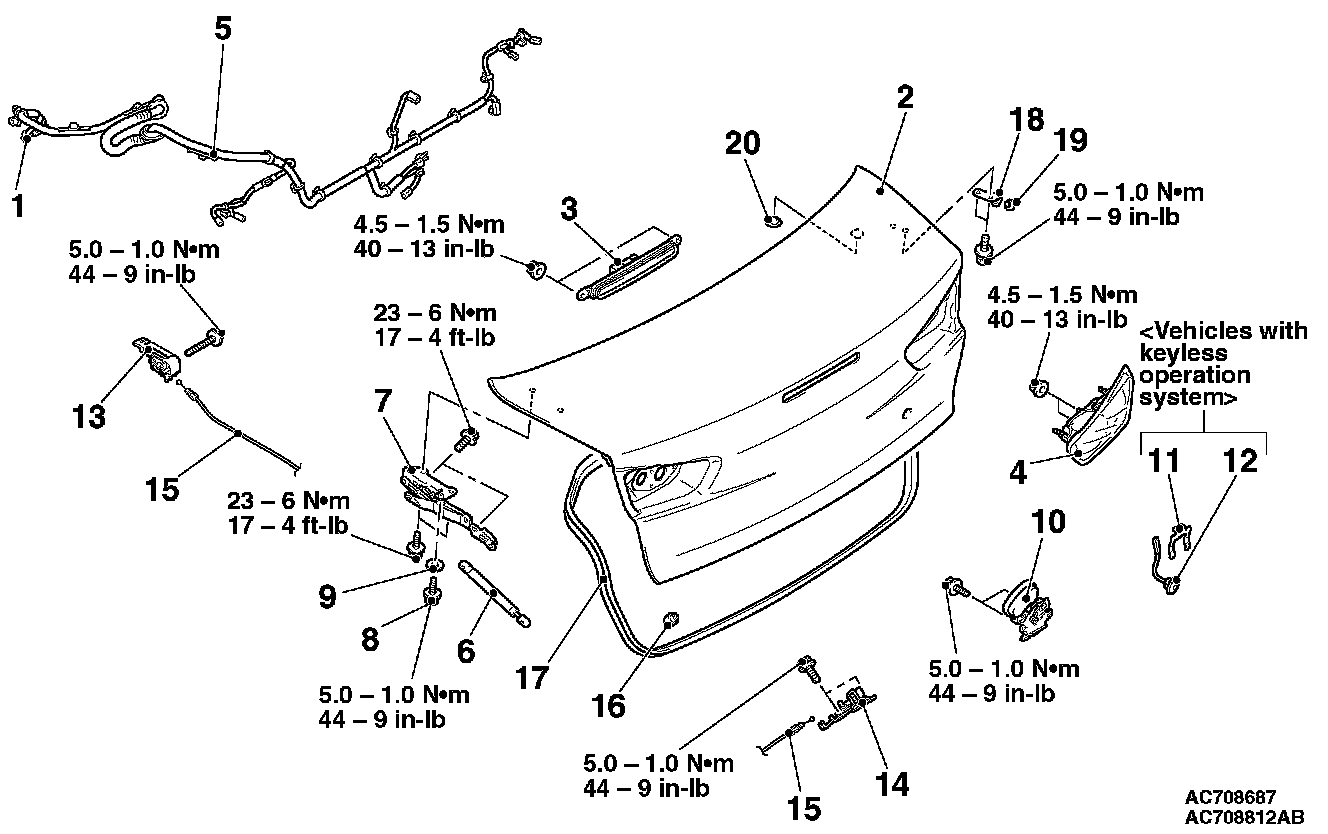

Removal Steps 1-20 (Part 1):

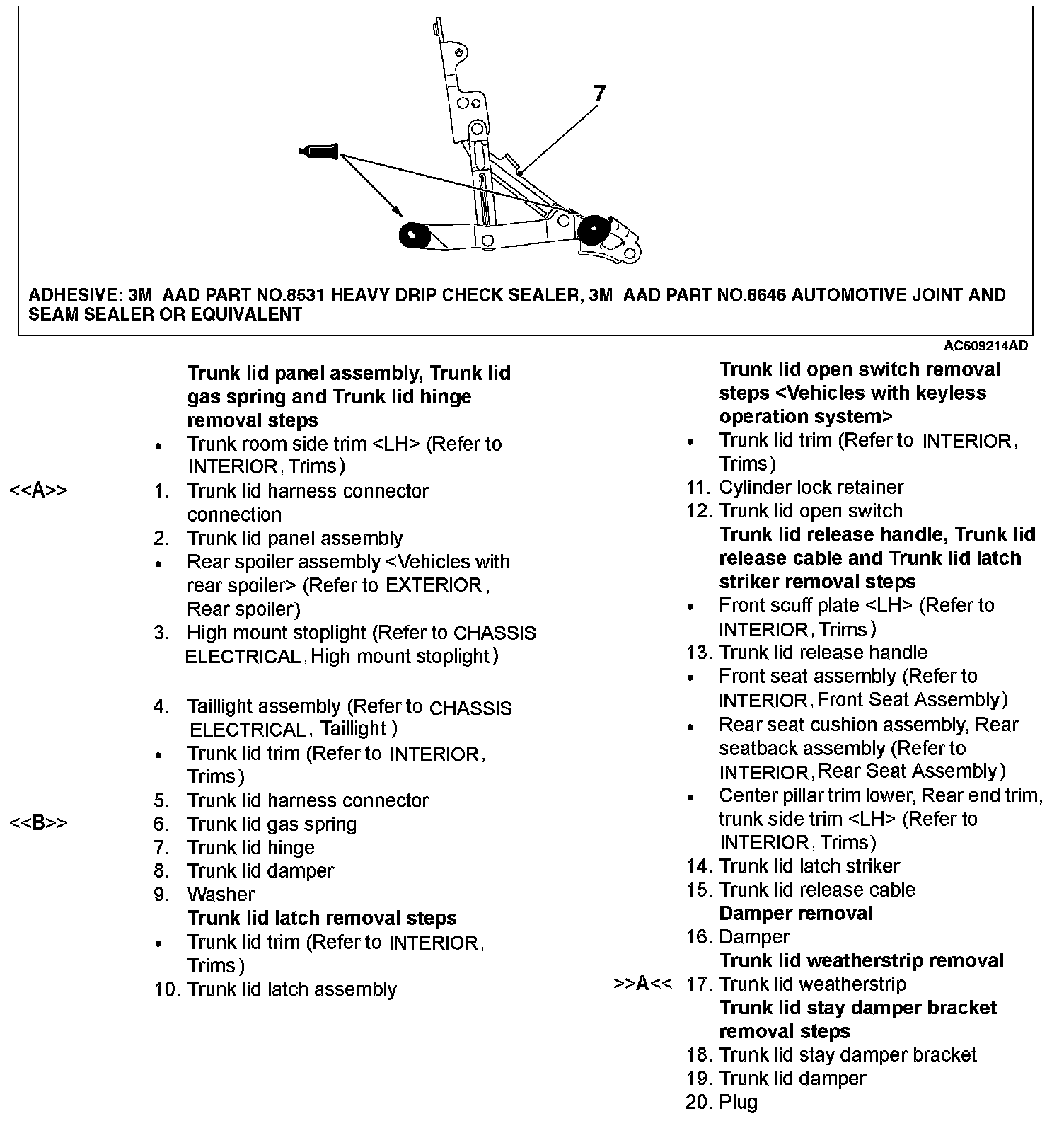

Removal Steps 1-20 (Part 2):
REMOVAL SERVICE POINTS

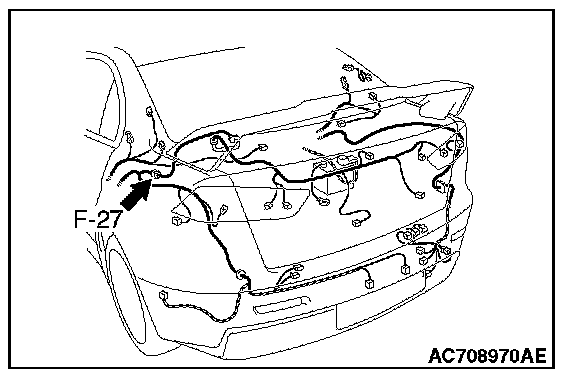

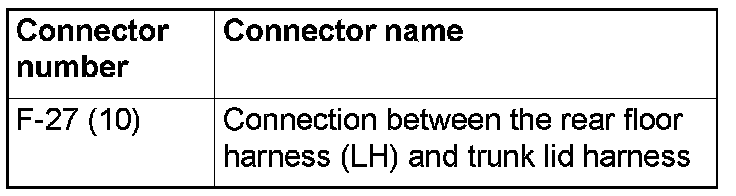

[[A]] TRUNK LID HARNESS CONNECTOR CONNECTION REMOVAL
Disconnect the trunk lid harness connector.

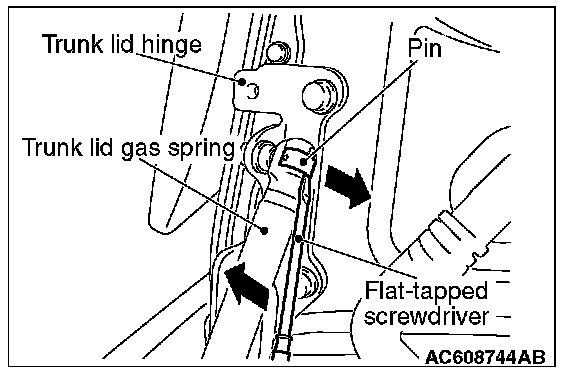

[[B]] TRUNK LID GAS SPRING REMOVAL
As shown in the figure, slide the pin upward, then remove the trunk lid gas spring in the direction of the arrow to unscrew the trunk lid hinge.
INSTALLATION SERVICE POINT

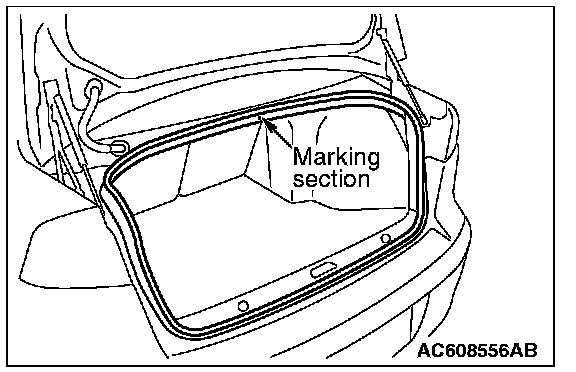

]]A[[ TRUNK LID WEATHERSTRIP INSTALLATION
Install the trunk lid weatherstrip so that the marking are aligned with the body center line.
