FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2010
>>
Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
HOOD
HOOD
REMOVAL AND INSTALLATION

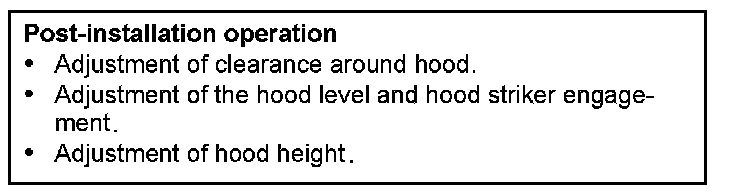

Post-installation Operation:

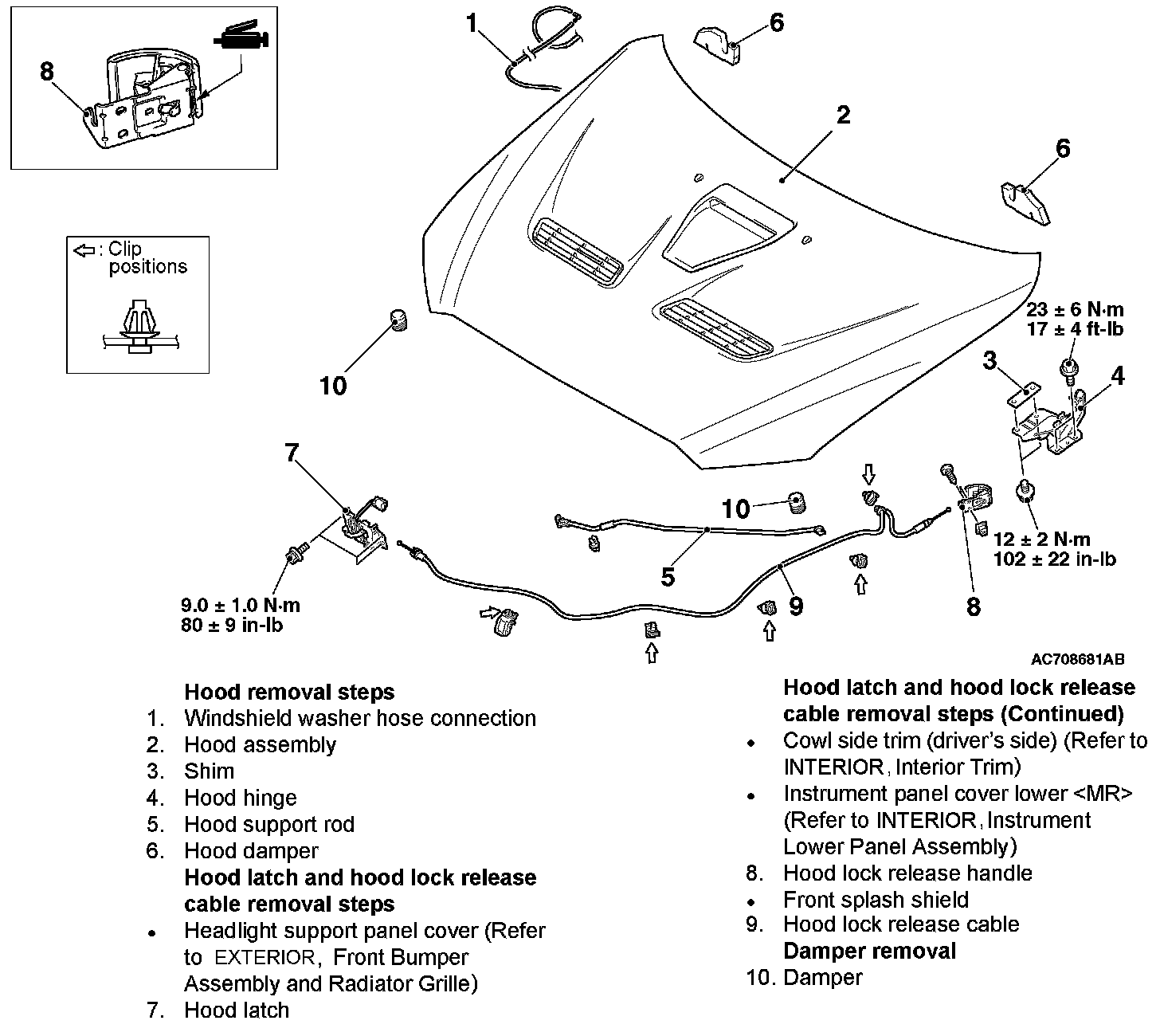

Removal Steps 1-10:
