Front Door: Service and Repair

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

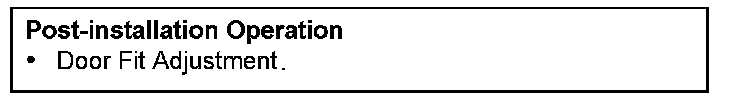

Post-installation Operation:

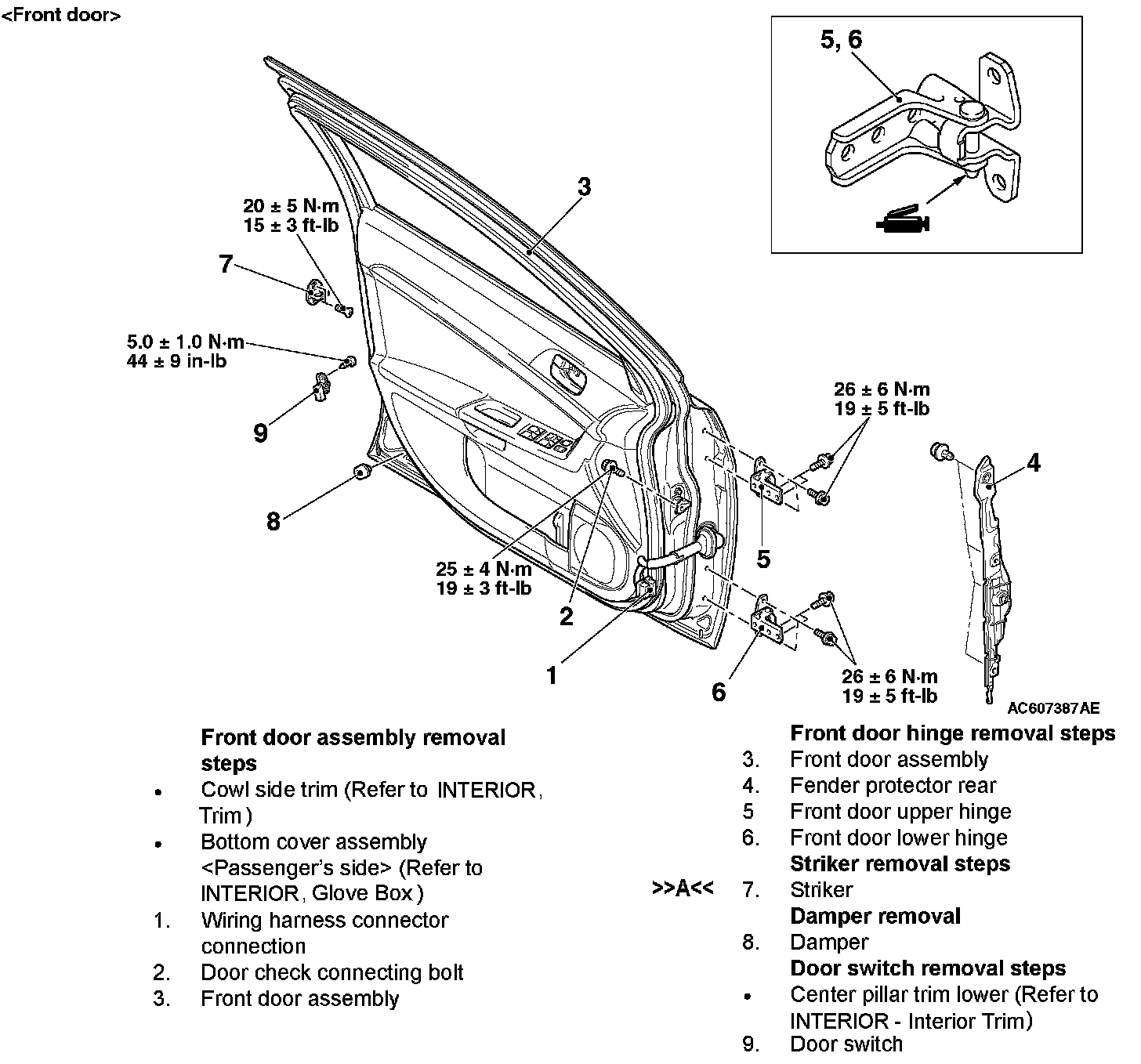

Removal Steps 1-9:

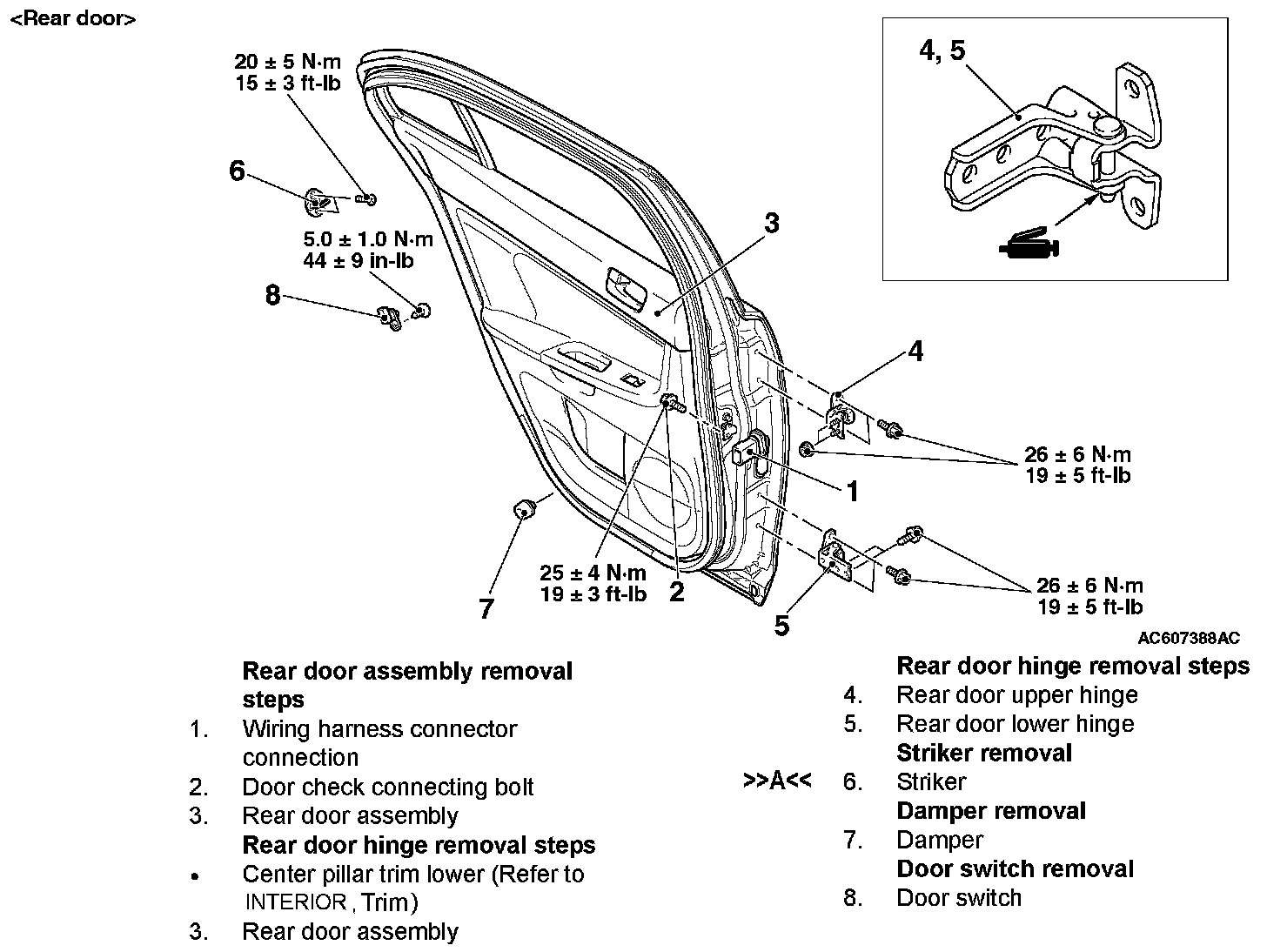

Removal Steps 1-8:

INSTALLATION SERVICE POINT

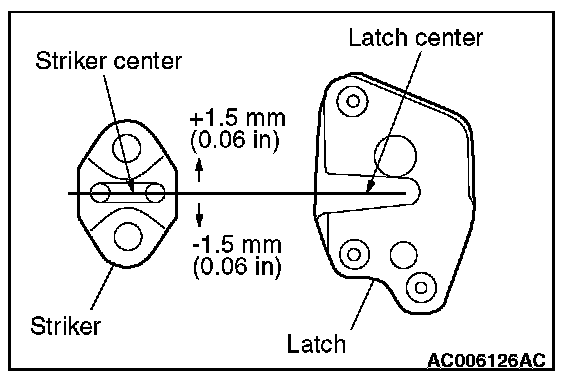

]]A[[ STRIKER INSTALLATION







Align the center of the striker and latch within ± 1.5 mm (0.06 inch), and install.
