Front Door Panel: Service and Repair

DOOR TRIM

REMOVAL AND INSTALLATION

[Front door trim]


Removal Steps 1-14:

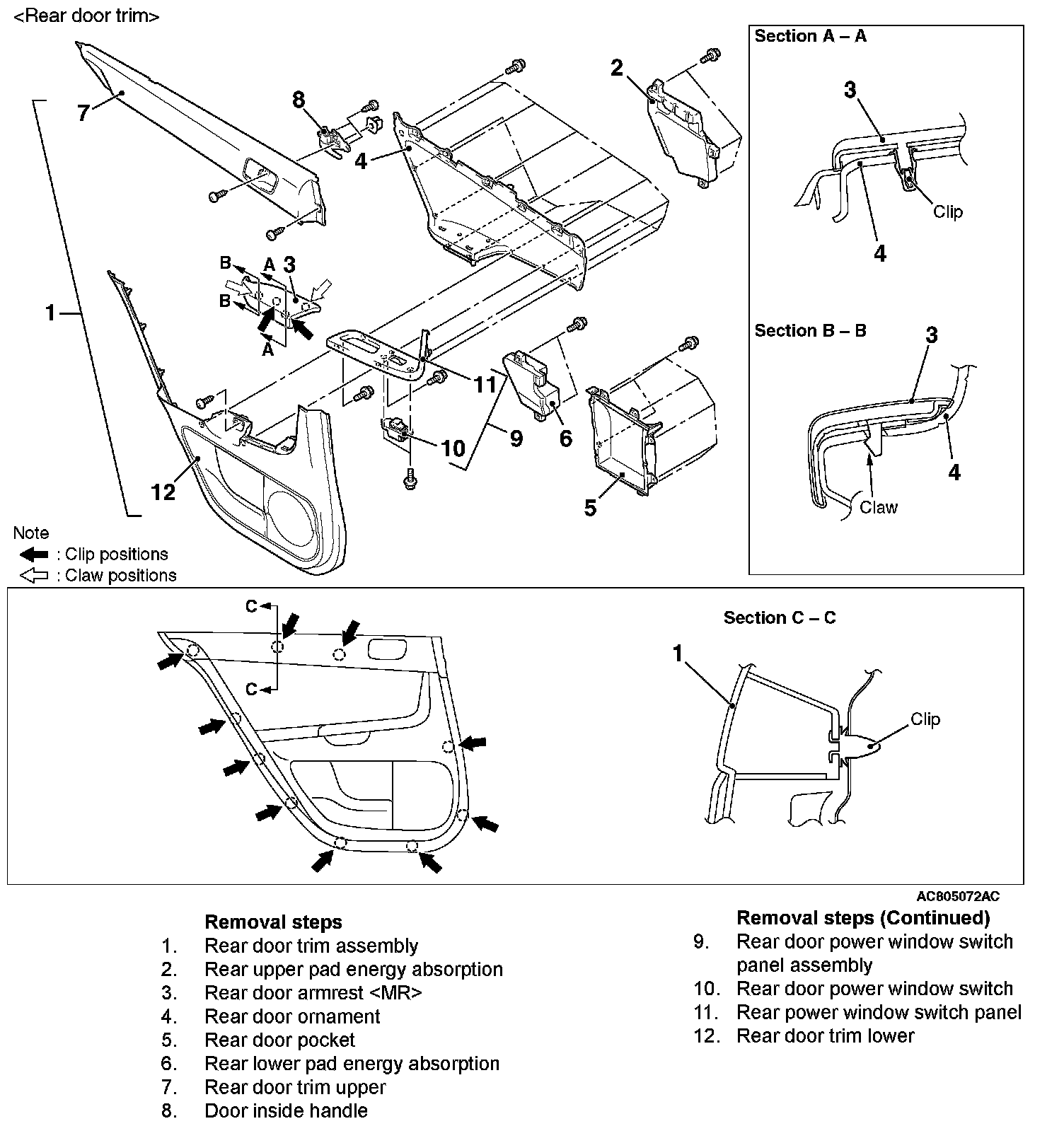

[Rear door trim]


Removal Steps 1-12:






Required Special Tool:
- MB990784: Ornament Remover
