Rear Bumper: Service and Repair

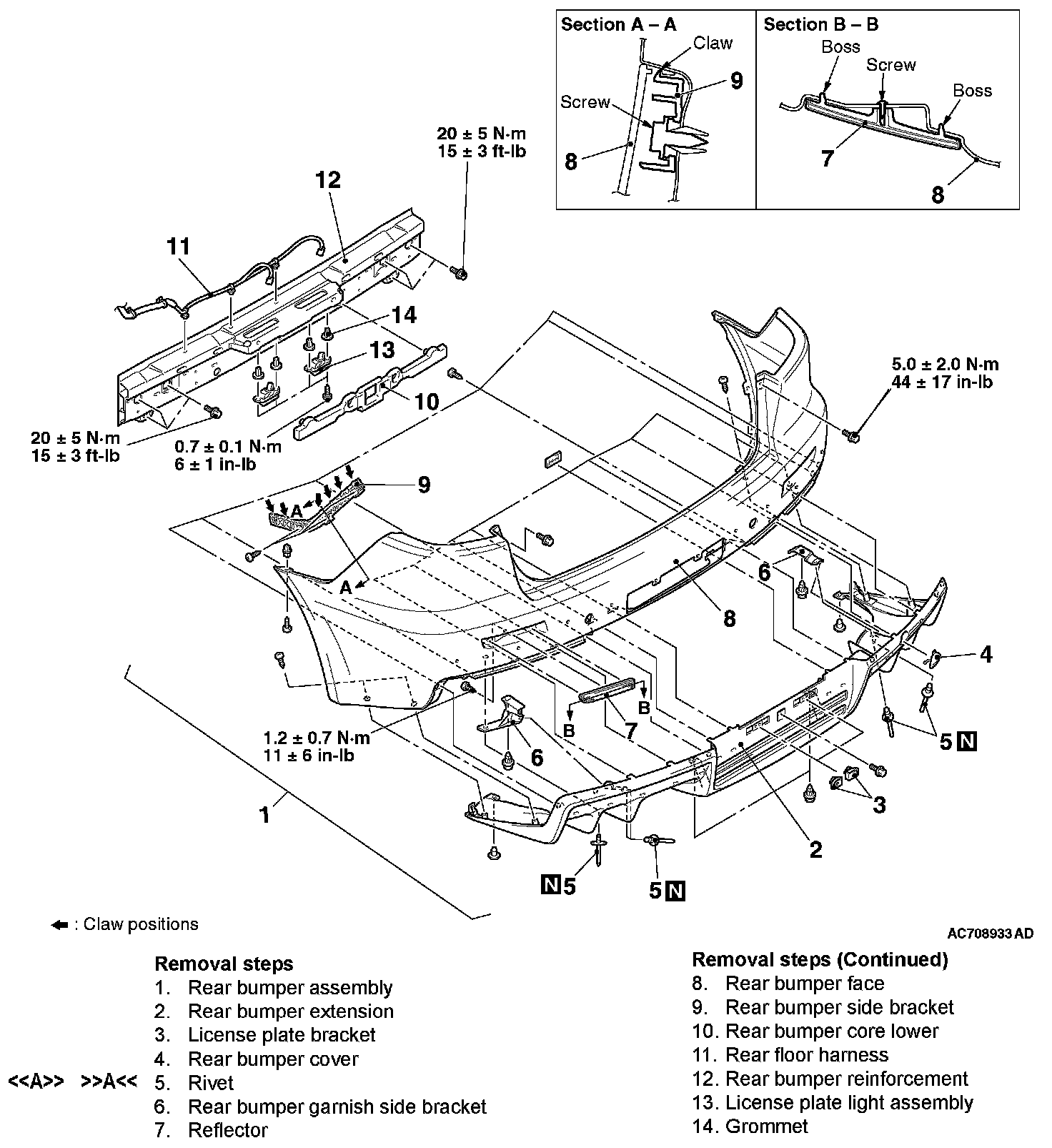

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

Pre-removal And Post-installation Operation:

Removal Steps 1-14:

REMOVAL SERVICE POINT

[[A]] RIVETS REMOVAL

Refer to FRONT BUMPER DISASSEMBLY SERVICE POINT.

INSTALLATION SERVICE POINT

]]A[[ RIVETS INSTALLATION

Refer to FRONT BUMPER ASSEMBLY SERVICE POINT.
