FRONT
BUMPER
ASSEMBLY AND RADIATOR GRILLE
REMOVAL AND INSTALLATION

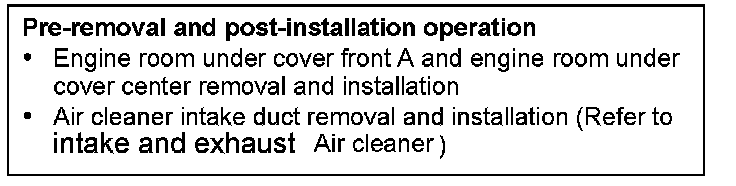

Pre-removal And Post-installation Operation:

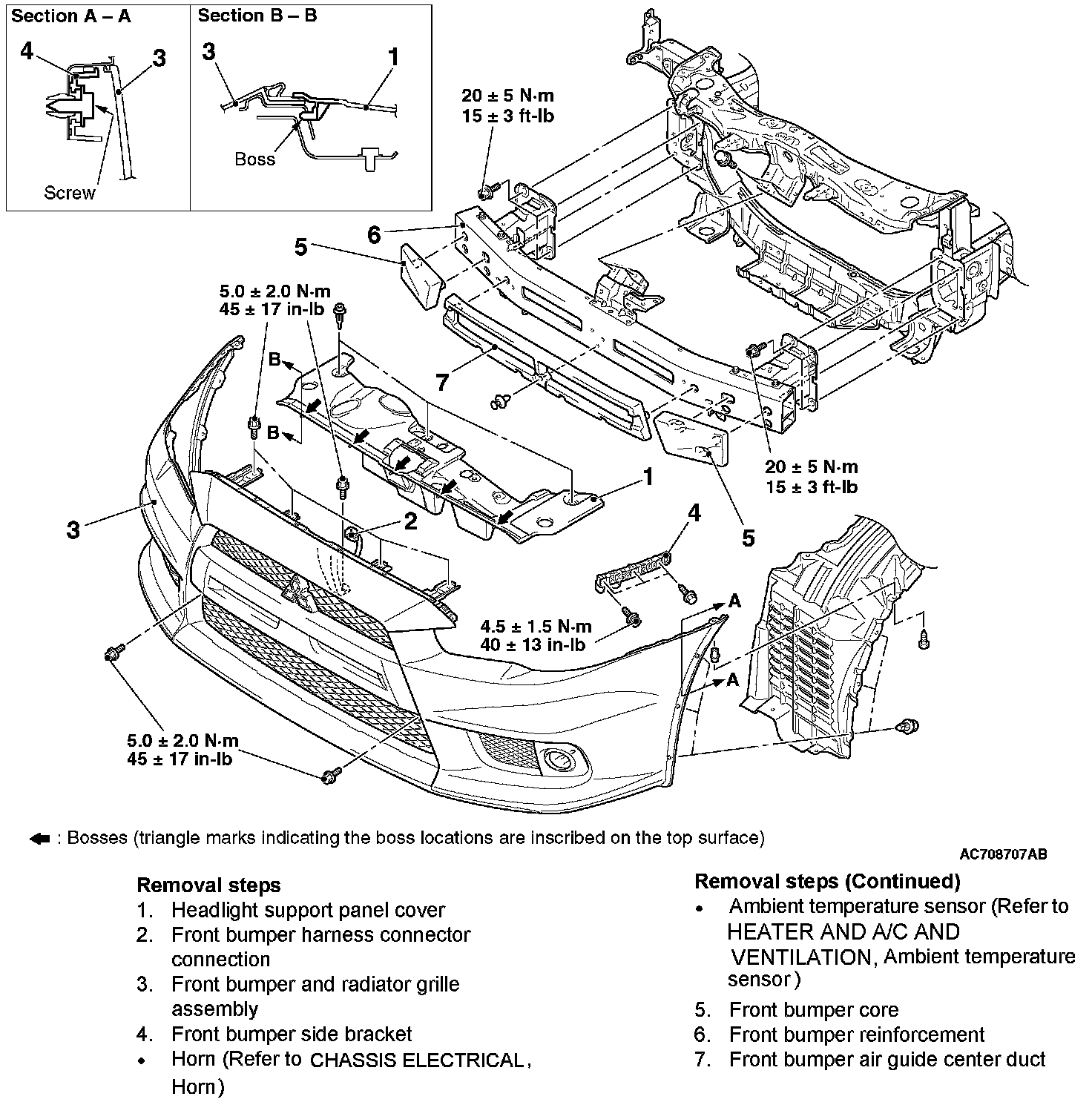

Removal Steps 1-7:
