Overhaul

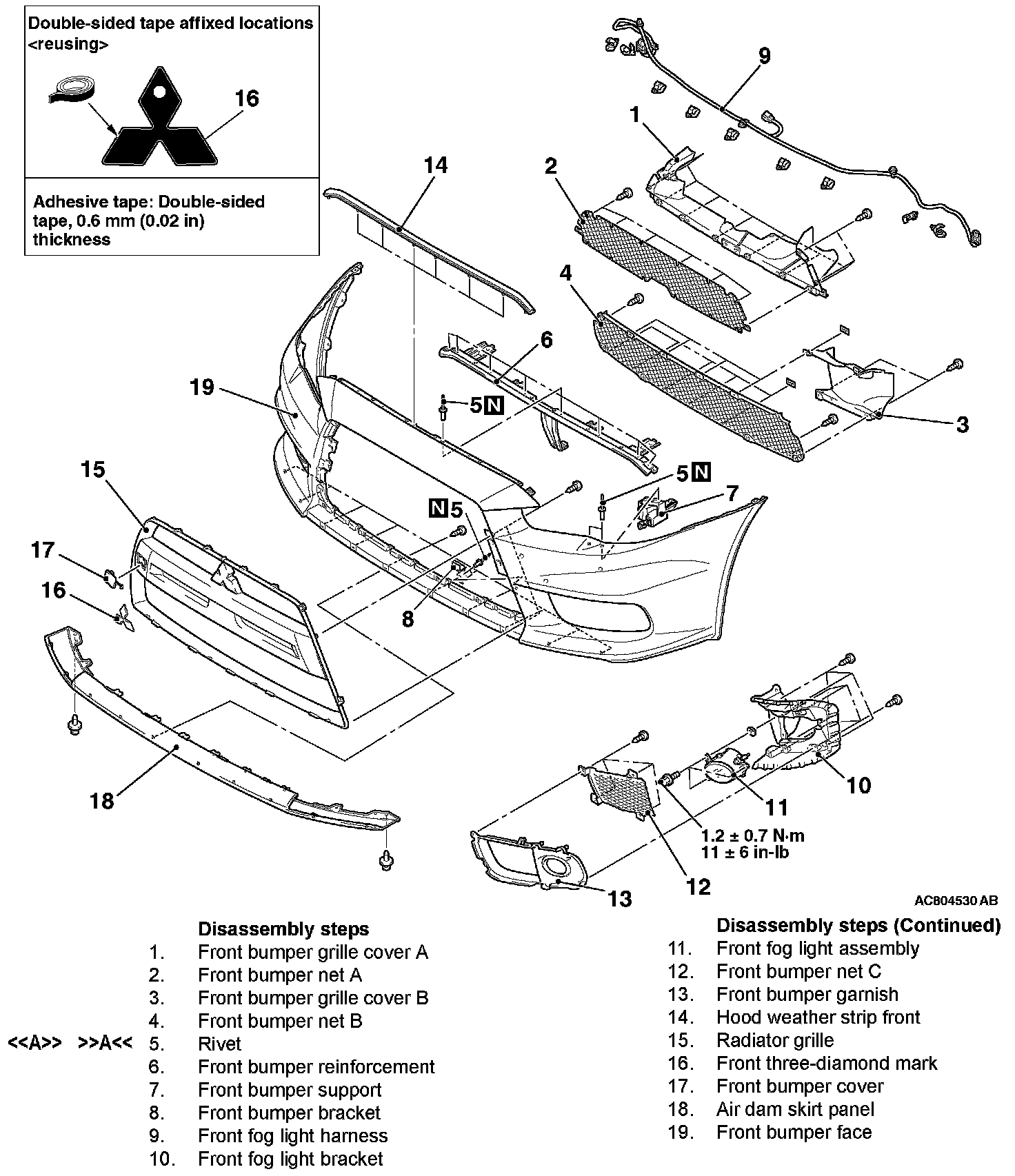

FRONT BUMPER ASSEMBLY AND RADIATOR GRILLEDISASSEMBLY AND ASSEMBLY
Disassembly steps 1-19:
DISASSEMBLY SERVICE POINT

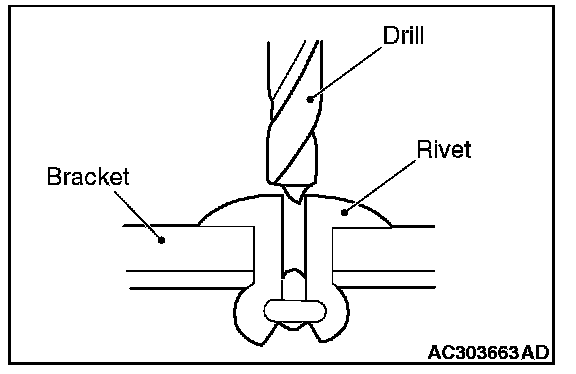

[[A]] RIVETS REMOVAL
Use a drill [(Dia 4.0 mm(0.16 in)] to make a hole in the rivet to break it, and remove the rivet.
ASSEMBLY SERVICE POINT

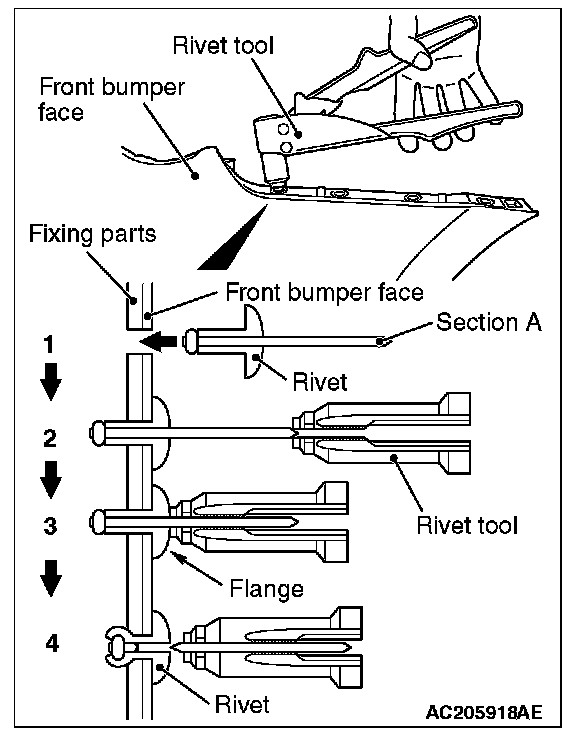

]]A[[ RIVETS INSTALLATION
Use a rivet tool to connect the parts with rivets by the following procedures.
1. Insert the rivet into a corresponding location.
2. Set the rivet tool at a section A of rivet.
3. While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4. Thin part of section A of the rivet will be cut off and the parts is fixed in position.
