Removal and Replacement

WCM

REMOVAL AND INSTALLATION

CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table.

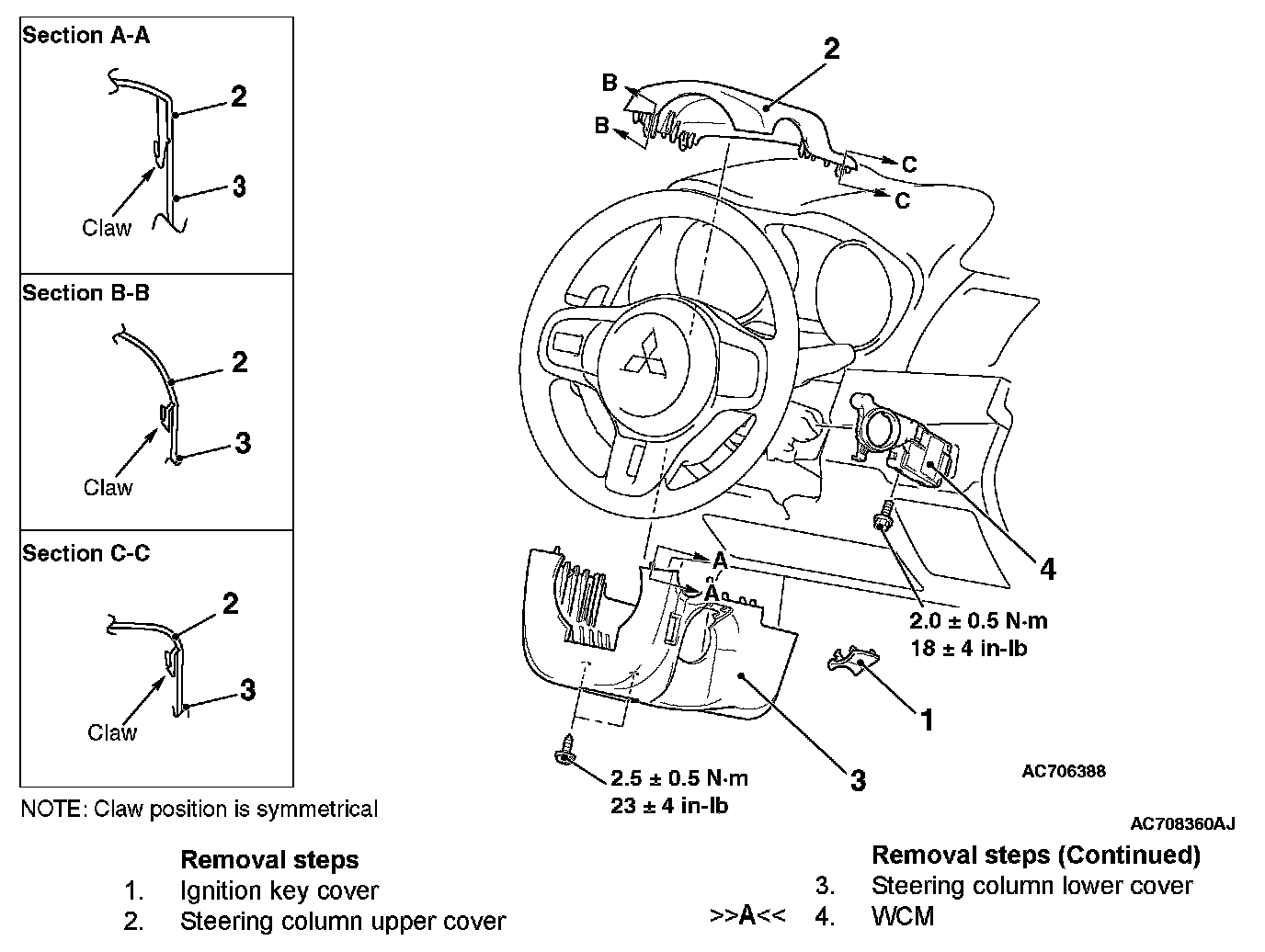

Removal Steps 1-4:

INSTALLATION SERVICE POINT

]]A[[ WCM INSTALLATION
Check that the top claw of WCM is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
