Repair and Diagnosis: Application and ID

VEHICLE IDENTIFICATION

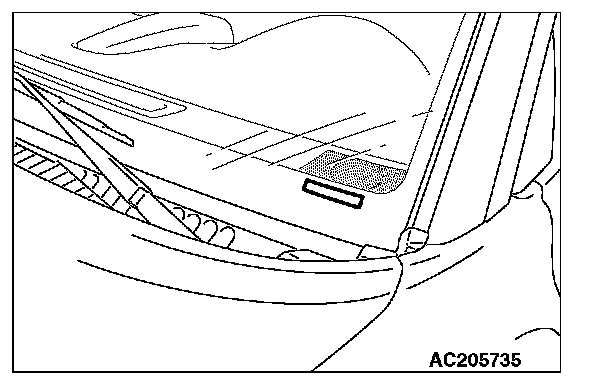

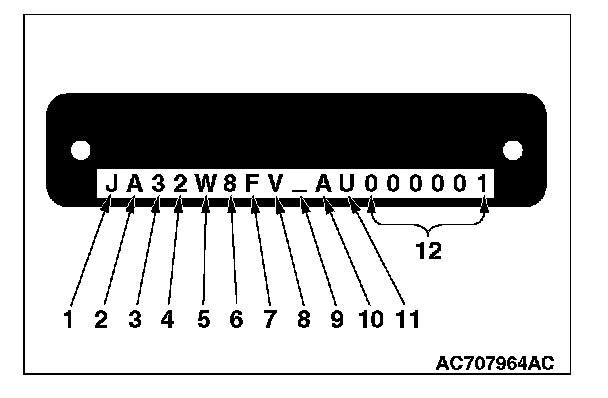

VEHICLE IDENTIFICATION NUMBER PLATE





The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.








MODELS

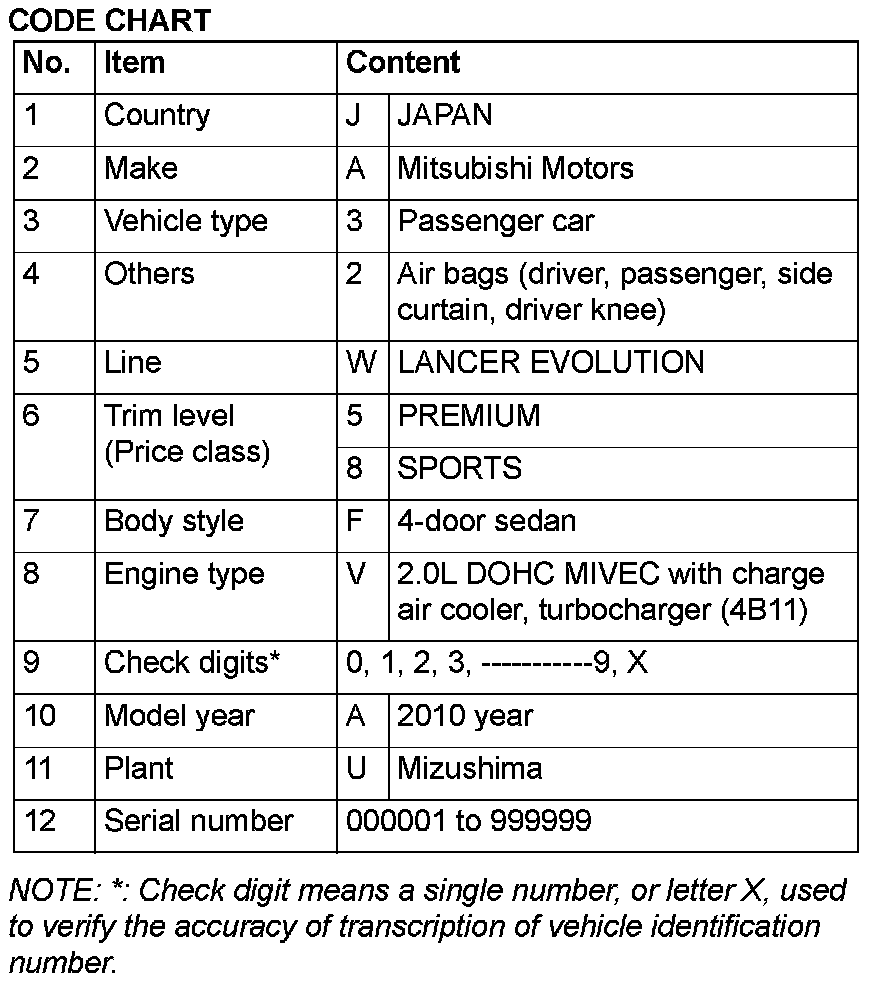

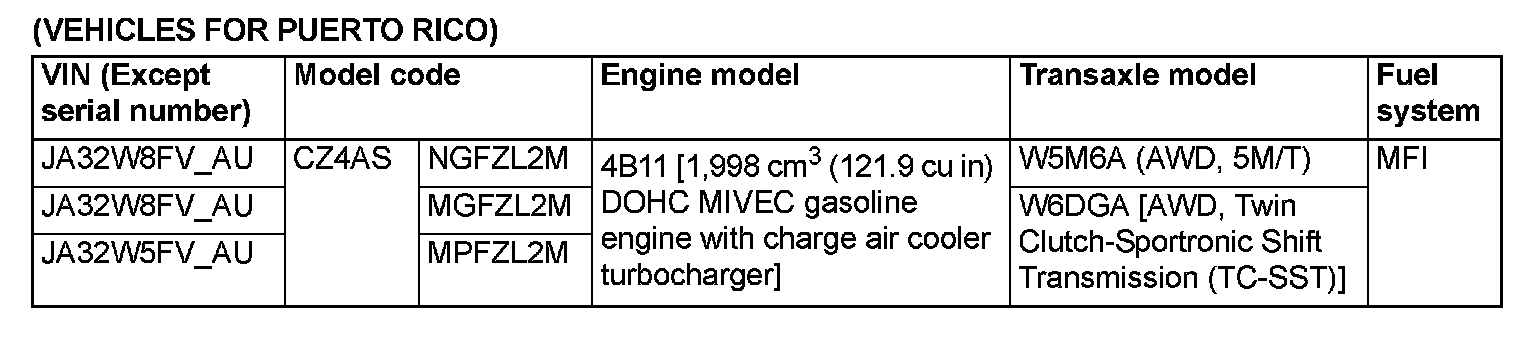

VEHICLE IDENTIFICATION NUMBER LIST

VEHICLES FOR USA








VEHICLES FOR CANADA

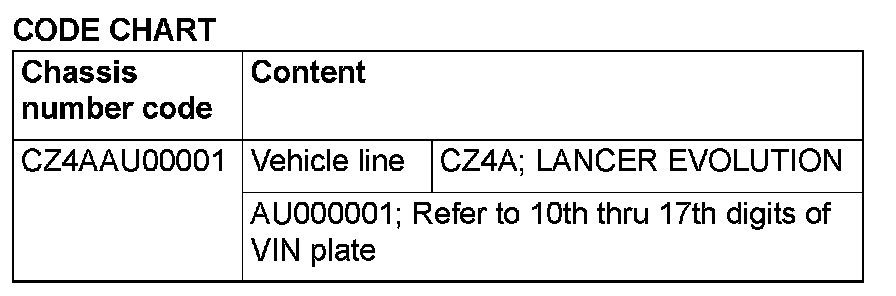

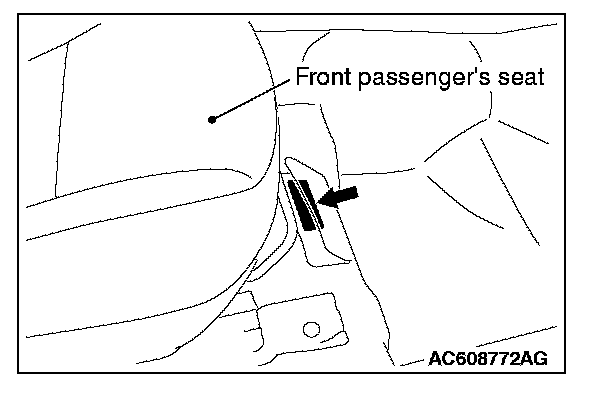

CHASSIS NUMBER





The chassis number is stamped on the front floor pan.





ENGINE MODEL STAMPING





The engine model is stamped on the cylinder block.

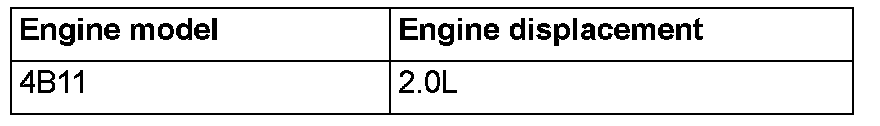

The engine model number is as shown as follow.





The engine serial number is stamped near the engine model number.

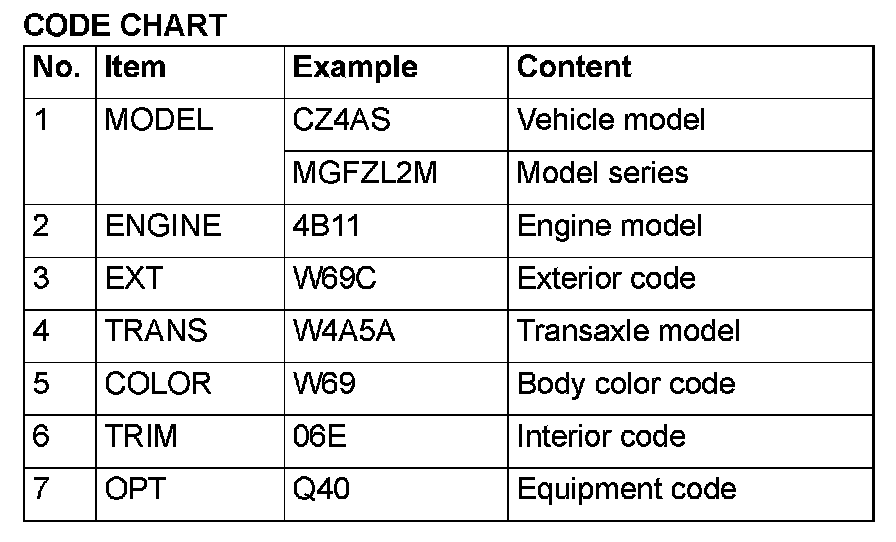

VEHICLE IDENTIFICATION CODE PLATE





The information code plate is riveted onto the cowl top outer panel in the engine compartment.

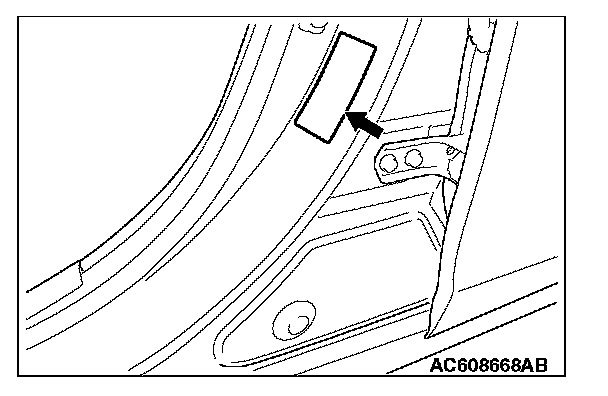

TIRE AND LOADING INFORMATION PLACARD





The tire and loading information placard is located on the inside sill of the driver's door.
