Accessories and Optional Equipment: Service and Repair

MMCS

REMOVAL AND INSTALLATION

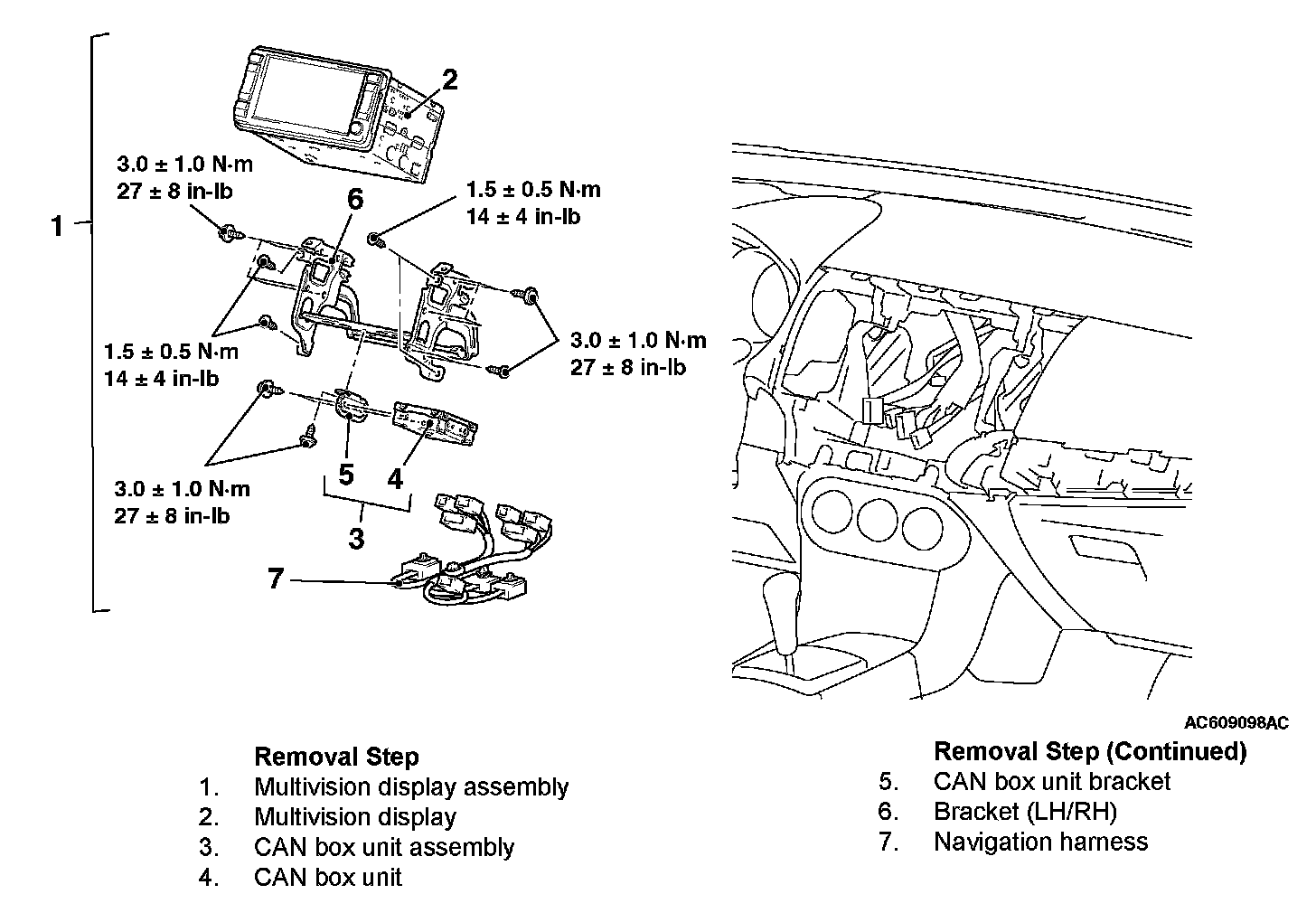

Multivision display

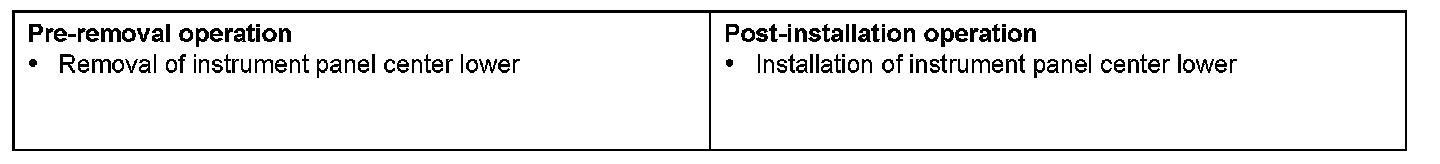

Pre-Removal & Post-Installation Operations:

Removal Steps 1-7:

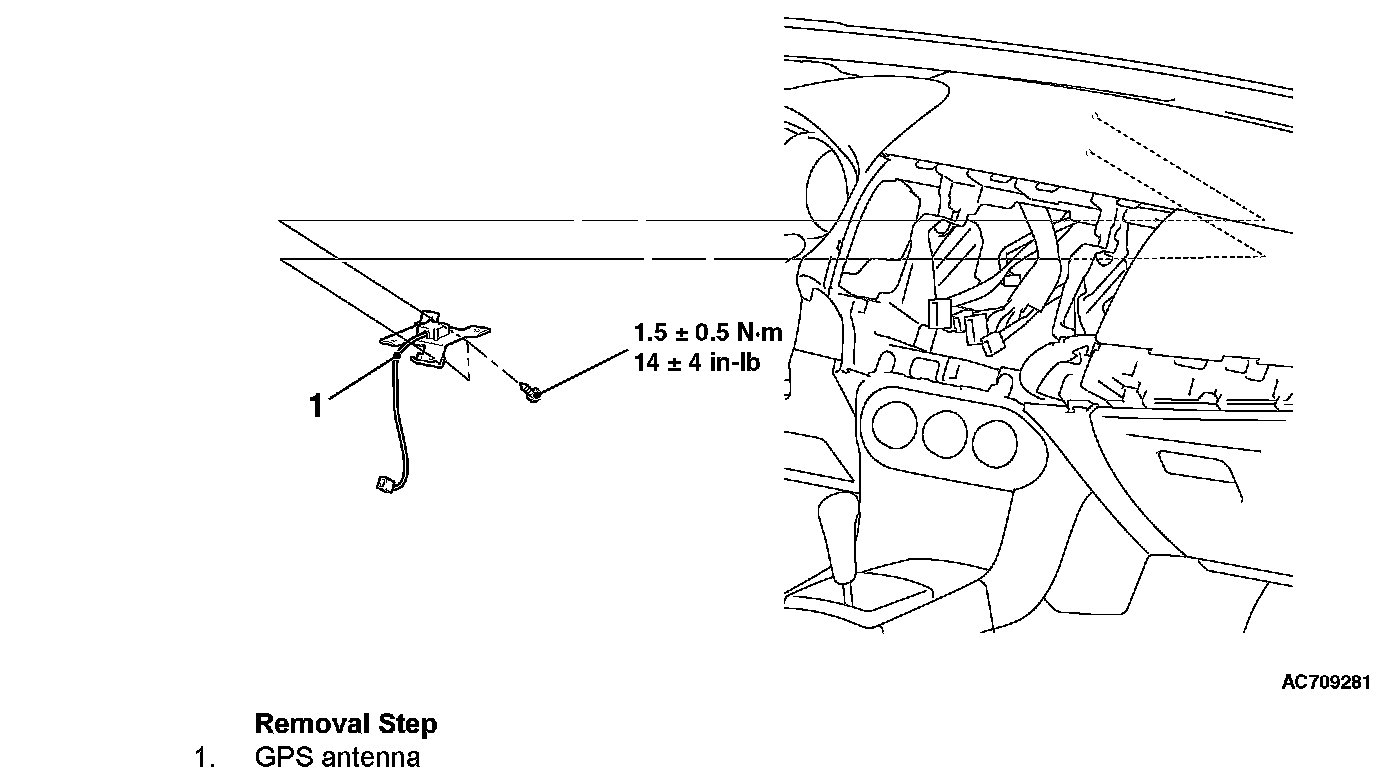

GPS antenna

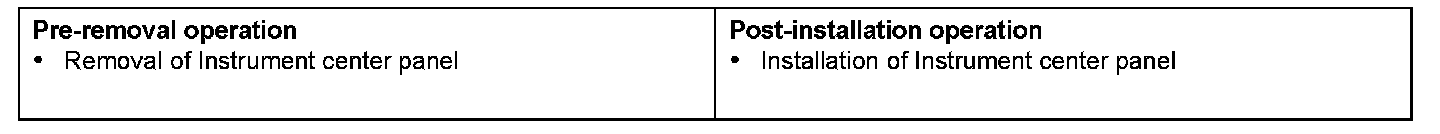

Pre-Removal & Post-Installation Operations:

Removal Step 1:

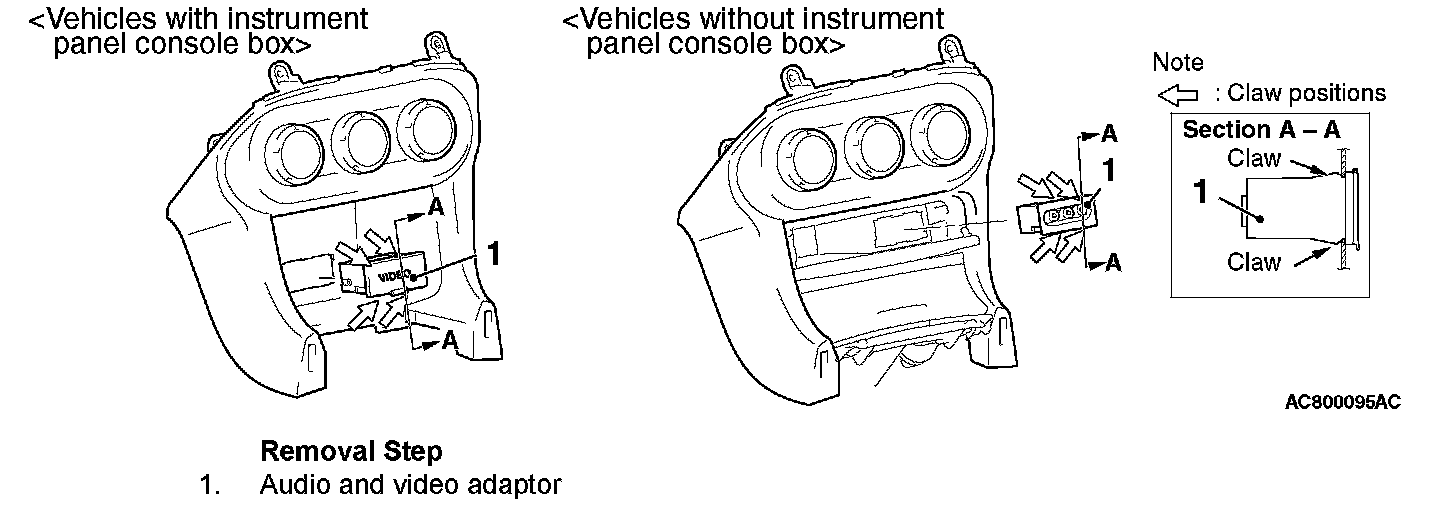

Audio and video adaptor

Pre-Removal & Post-Installation Operations:

Removal Step 1:
