Inspection Procedure 1

INSPECTION PROCEDURE 1: Power Is Not Turned ON When The Power Switch Is Turned ON.

CAUTION: When replacing the radio and CD player, always check that the communication circuit is normal.

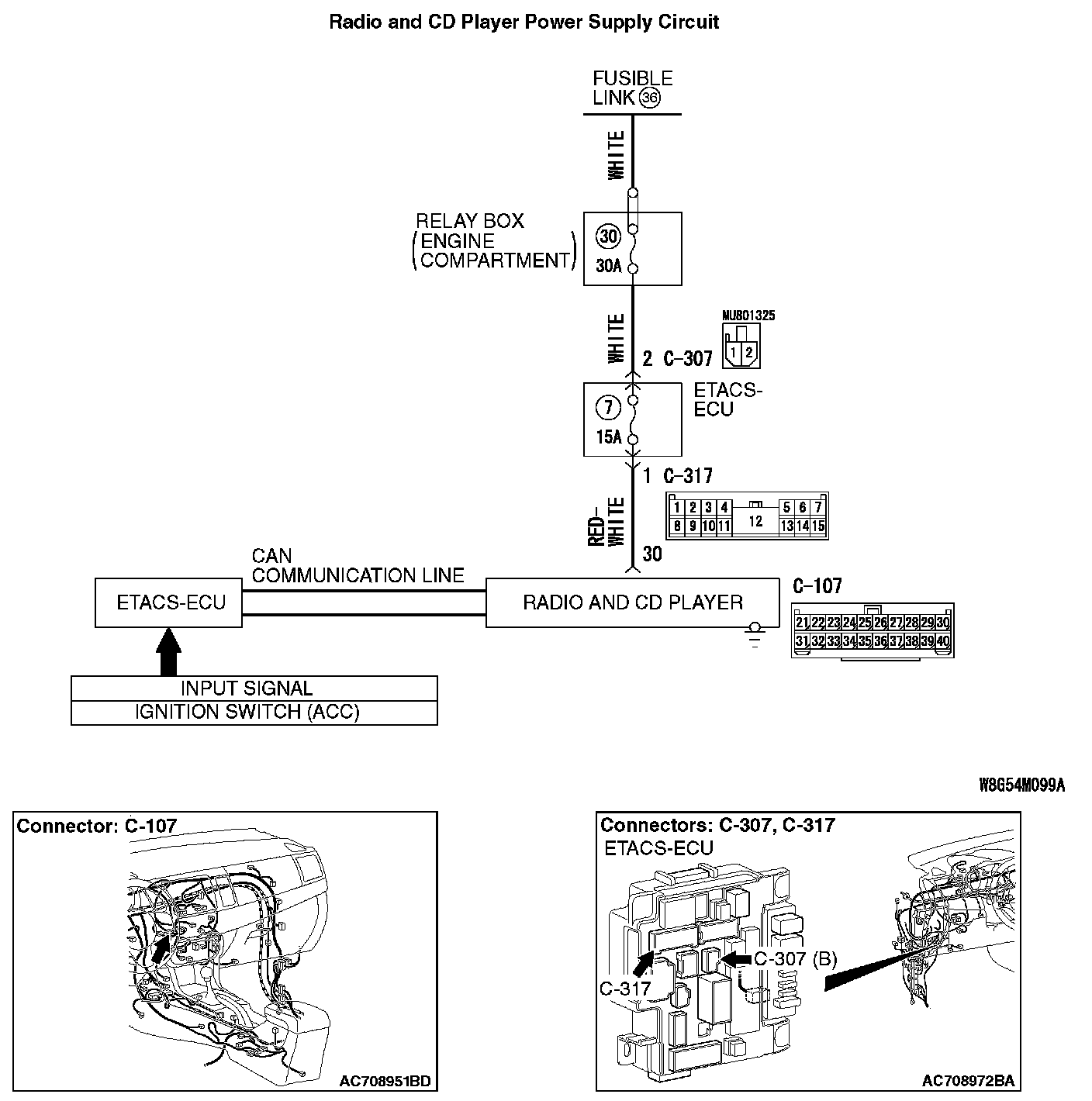

Radio And CD Player Power Supply Circuit:

OPERATION
When the ignition switch is in the ON or ACC position, the radio and CD player power can be turned ON. With the radio and CD player power ON, when the ignition switch is turned to the OFF position, the power for radio and CD player is also turned OFF.

COMMENTS ON TROUBLE SYMPTOM
Provided that the audio diagnostic trouble code is not set, if the power for radio and CD player cannot be turned ON, the radio and CD player, or power supply circuit for radio and CD player may have a problem, or the option coding information may be inconsistent.

PROBABLE CAUSES
- The radio and CD player may be defective
- The ETACS-ECU may be defective
- Option coding information inconsistency
- Damaged harness wires and connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. ETACS-ECU coding data check.







1. Operate scan tool MB991958 to read the ETACS-ECU option coding information.
2. Check that the "AUDIO" is set to "Present."

Q: Is the check result normal?

YES : Go to Step 2.

NO : Operate scan tool MB991958 to set the option coding "AUDIO" to "Present", and check the trouble symptom.

STEP 2. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

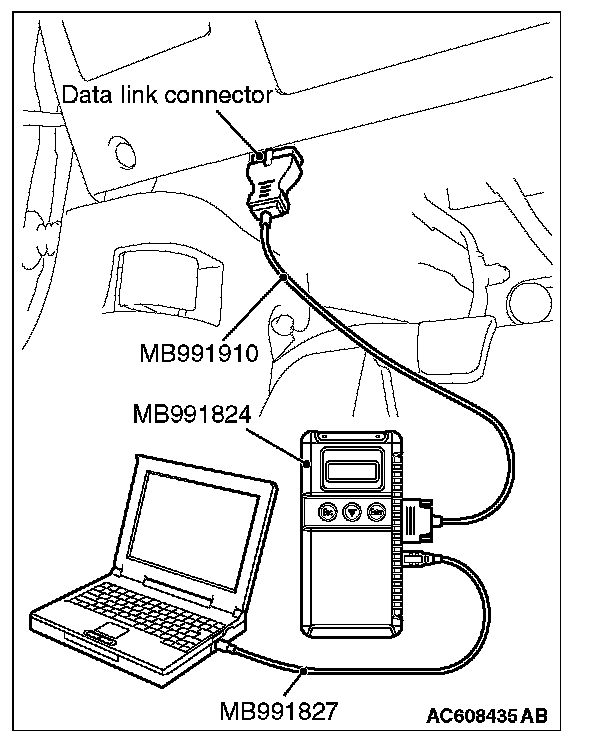

1. Connect scan tool MB991958 to the data link connector
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.

Q: Is the check result normal?

YES : Go to Step 3.

NO : Repair the CAN bus line. On completion, go to Step 3.

STEP 3. Using scan tool MB991958, read the ETACS-ECU diagnostic trouble code.

Check if the diagnostic trouble code is set to the ETACS-ECU.

Q: Is the DTC set?

YES : Troubleshoot the ETACS-ECU (Refer to ETACS, Diagnosis). Diagnostic Trouble Code Descriptions

NO : Go to Step 4.

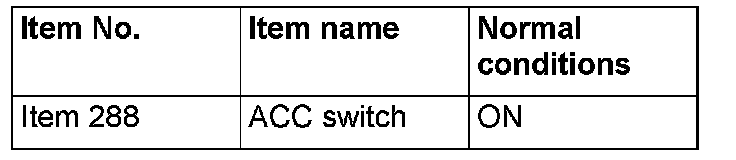

STEP 4. Using scan tool MB991958, check data list.

Check the input signal of ACC relay.
- Turn the ignition switch to the ACC position.







OK: Normal condition is displayed.

Q: Is the check result normal?

YES : Go to Step 5.

NO : Refer to ETACS, Diagnosis - Inspection Procedure 1 "The ignition switch (ACC) signal is not received". Inspection Procedure 1

STEP 5. Check ETACS-ECU connector C-317 and radio and CD player connector C-107 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Are ETACS-ECU connector C-317 and radio and CD player connector C-107 in good condition?

YES : Go to Step 6.

NO : Repair or replace the damaged component(s). The steering remote control switch should work normally.

STEP 6. Check the wiring harness between ETACS-ECU connector C-317 (terminal 1) and radio and CD player connector C-107 (terminal 30).

- Check the power supply lines (battery power supply) for open circuit and short circuit.

Q: Is the wiring harness between ETACS-ECU connector C-317 (terminal 1) and radio and CD player connector C-107 (terminal 30) in good condition?

YES : Go to Step 7.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

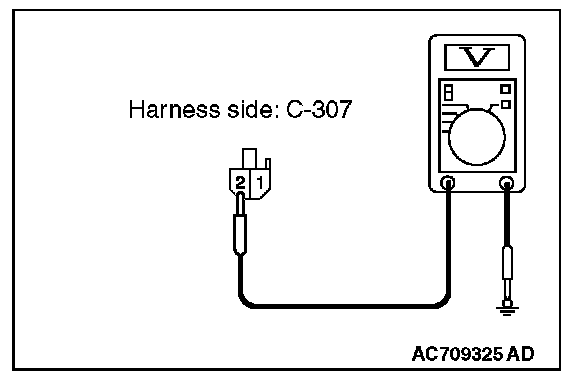

STEP 7. Check the power supply circuit to the ETACS-ECU. Measure the voltage at ETACS-ECU connector C-307.

1. Disconnect the connector, and measure at the wiring harness-side connector.







2. Measure the voltage between terminal 2 and ground.

OK: Battery positive voltage

Q: Is the measured voltage battery voltage?

YES : Go to Step 9.

NO : Go to Step 8.

STEP 8. Check the wiring harness between ETACS-ECU connector C-307 (terminal 2) and fusible link (36)

- Check the power supply line for open circuit and short circuit.

Q: Is the wiring harness between ETACS-ECU connector C-307 (terminal 2) and fusible link (36) in good condition?

YES : Go to Step 9.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

STEP 9. Check that the radio and CD player is correctly grounded

The radio and CD player should be connected to the ground with an assembling screw.

Q: Is the radio and CD player correctly grounded?

YES : Go to Step 10.

NO : Securely install and ground the radio and CD player.

STEP 10. Retest the system

Check if the radio and CD player power is turned ON.

Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction.

NO : Replace the radio and CD player.
