Removal and Replacement

The contents of this article and images reflect the changes identified in TSB-10-54-009.

REMOVAL AND INSTALLATION

NOTE: When the radio and CD player (audio unit) are replaced, always turn the ignition switch to the ON position once and then carry out the operation check.

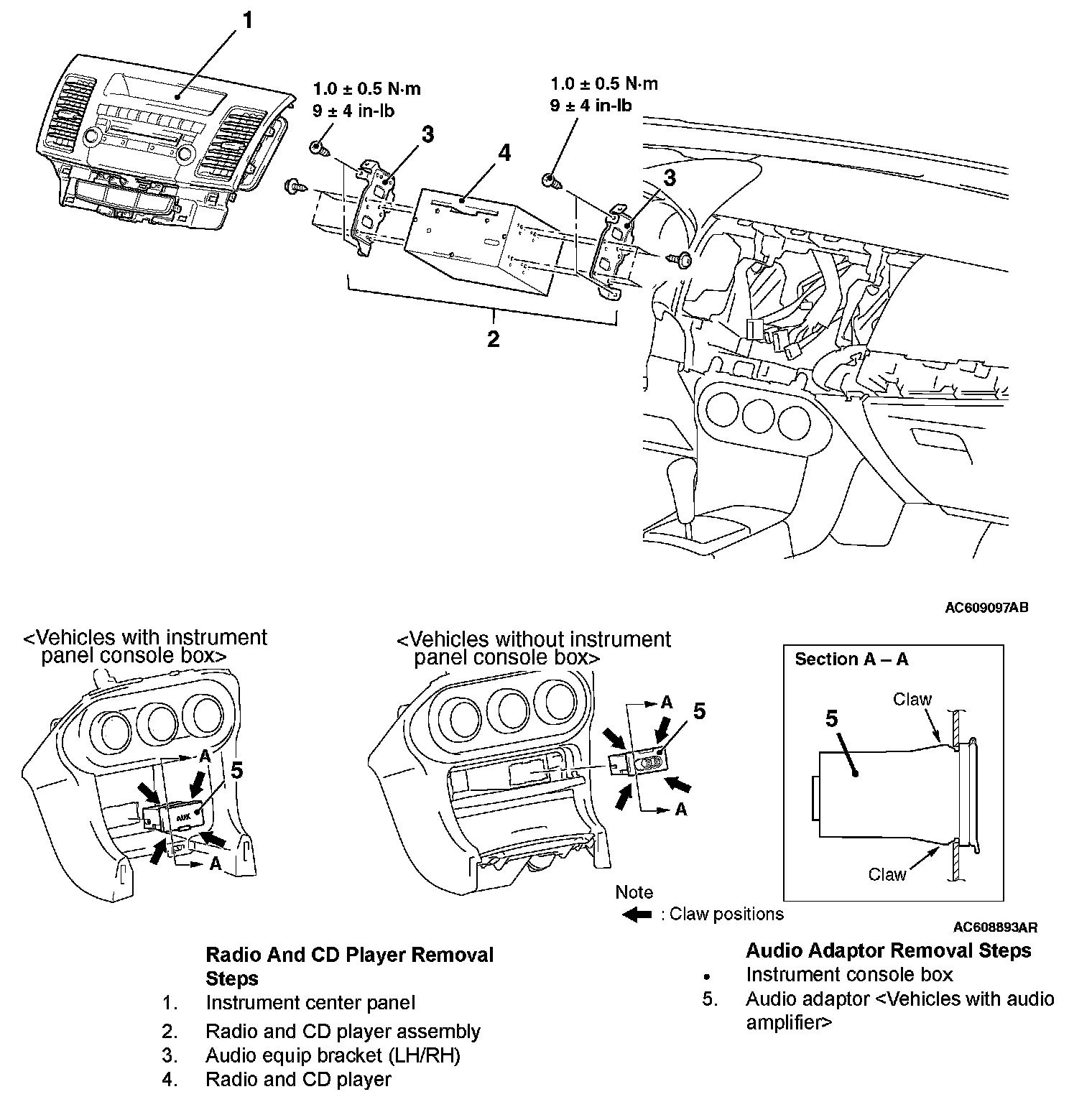

Removal Steps 1-5:
