Component Tests and General Diagnostics

ON-VEHICLE SERVICE

HOW TO READ SIRIUS ID

READ THE SIRIUS ID DIRECTLY FROM THE SATELLITE RADIO TUNER.

When the SIRIUS ID (12 digits) cannot be displayed by operating the multivision display, or radio and CD player, it can be read directly by the satellite radio tuner.

1. Remove the satellite radio tuner.

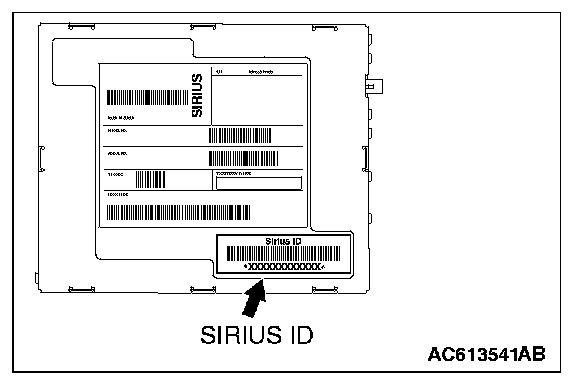

2. Read the SIRIUS ID (12 digits) from the satellite radio tuner.
