Amplifier: Service and Repair

AMPLIFIER

REMOVAL AND INSTALLATION

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to - Service Precautions and Curtain Air Bag Module(s).

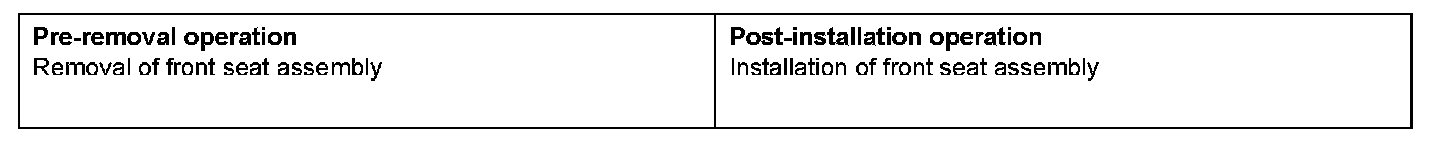

Pre-Removal & Post-installation Operations:

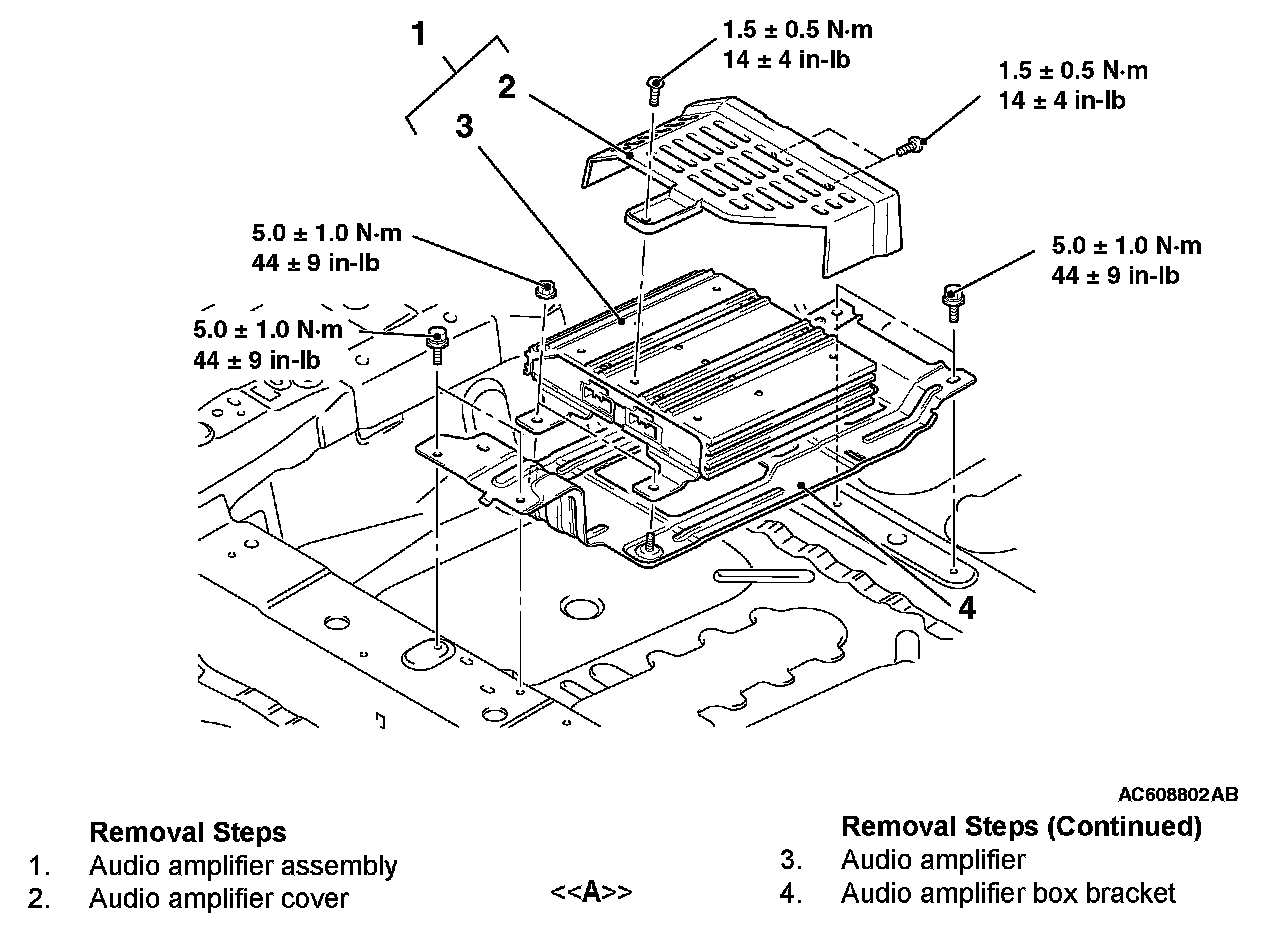

Removal Steps 1-4:

REMOVAL SERVICE POINT

[[A]] REMOVAL OF AUDIO AMPLIFIER BOX BRACKET

Turn up the carpet, and remove the audio amplifier box bracket.
