Removal and Replacement

HANDS FREE CELLULAR PHONE SYSTEM

REMOVAL AND INSTALLATION

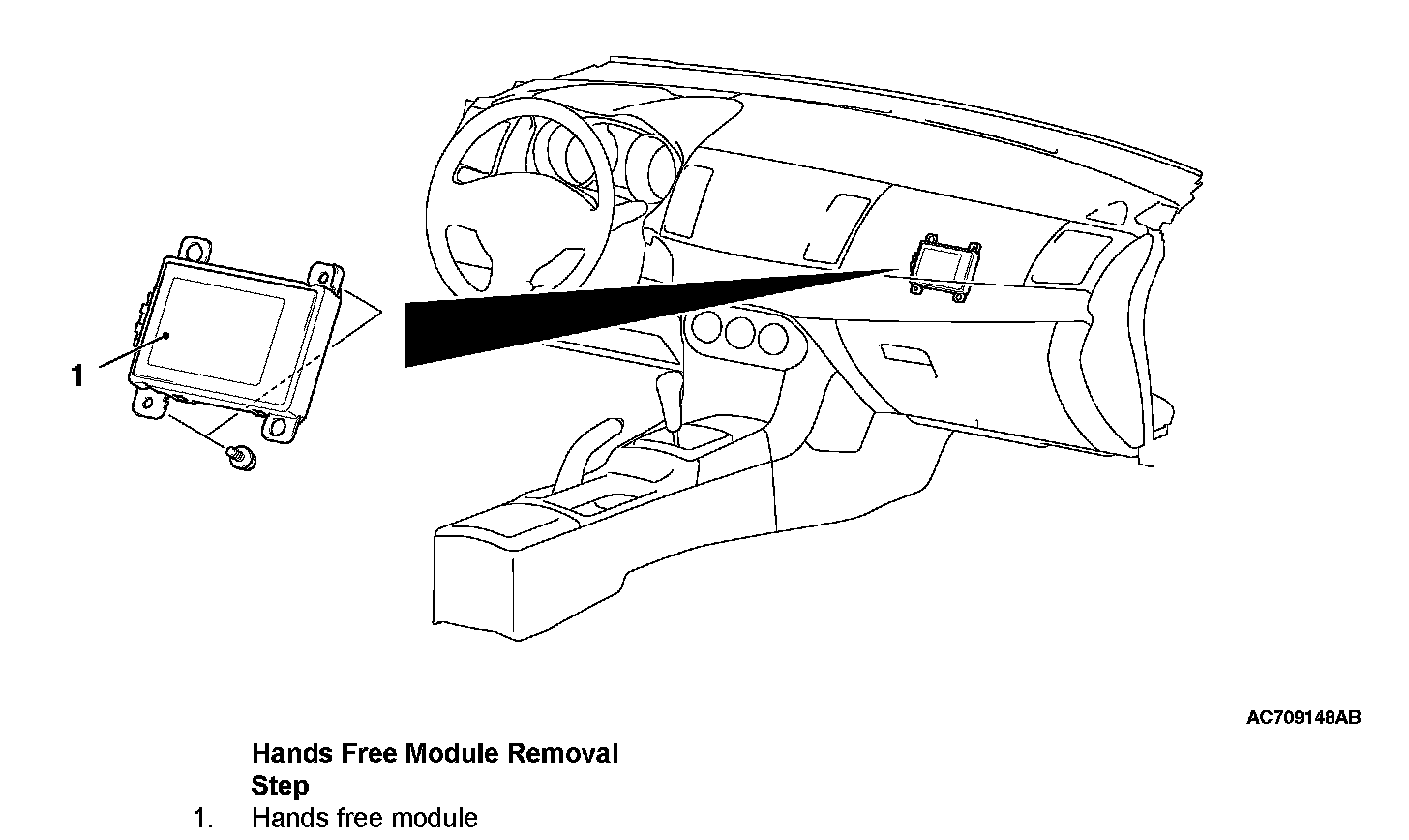

HANDS FREE MODULE

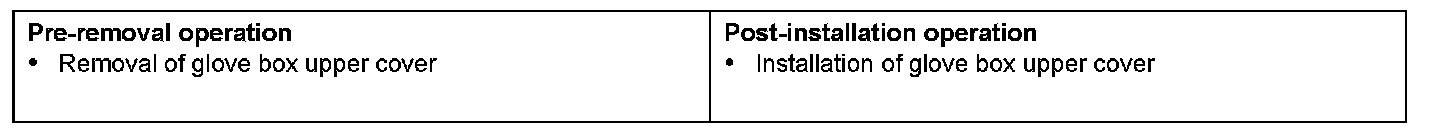

Pre-Removal & Post-Installation Operations:

Removal Step 1:

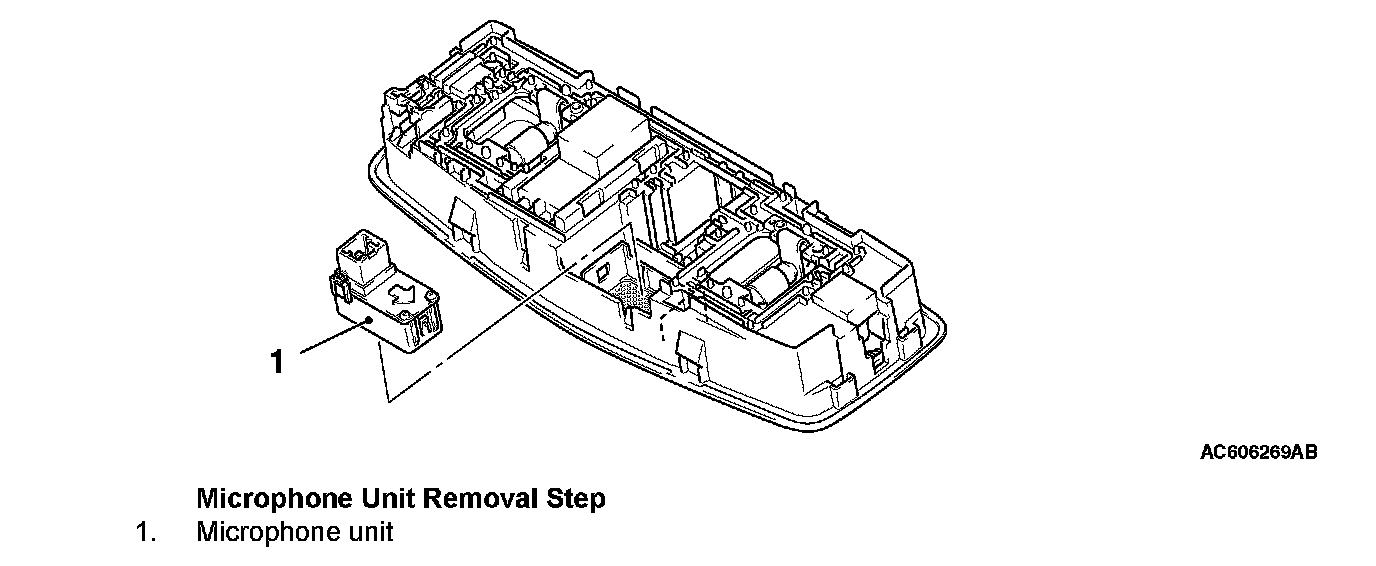

MICROPHONE UNIT

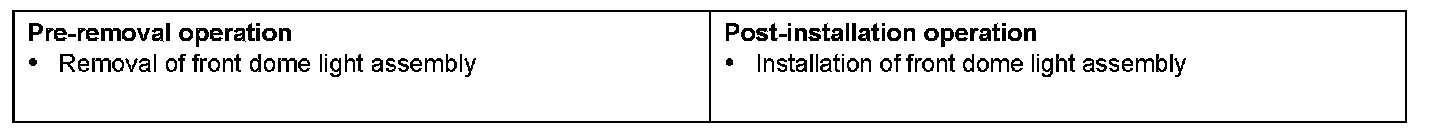

Pre-Removal & Post-installation Operations:

Removal Step 1:

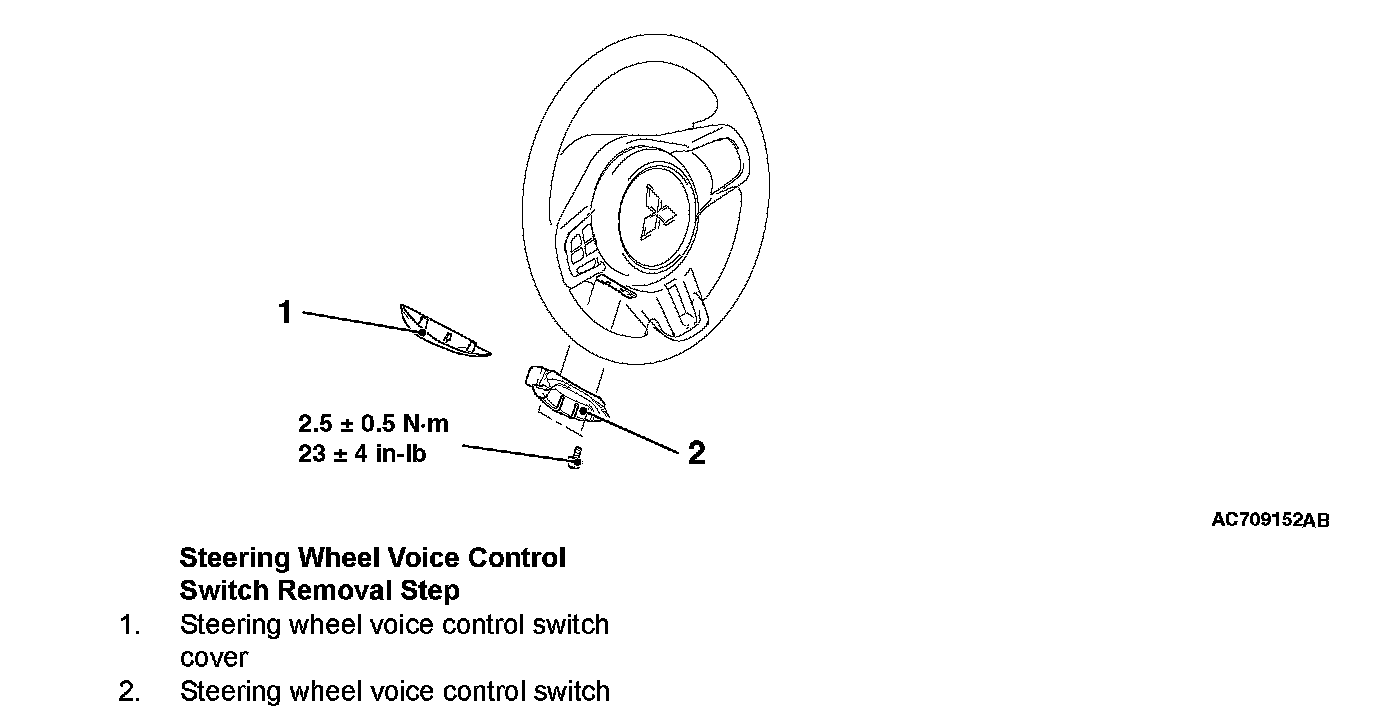

STEERING WHEEL VOICE CONTROL SWITCH

Removal Steps 1-2:
