Component Tests and General Diagnostics

THEFT-ALARM INDICATOR CHECK







1. Remove the center panel.

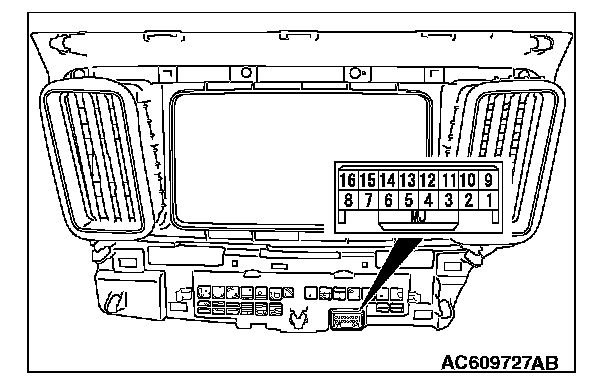

2. Connect the battery (+) terminal with the center panel connector (terminal No. 15). Then, check if the theft-alarm indicator is illuminated when the battery (-) terminal and the center panel connector (terminal No. 12) are connected.
3. If the theft-alarm indicator is illuminated, it is judged good.

NOTE: Make sure that the polarity is correct.
