Antenna: Description and Operation

GENERAL INFORMATION

The roof antenna has been adopted for the radio. The antenna base incorporates the radio amplifier. When the satellite radio tuner is installed, the antenna base that also corresponds to the satellite radio is installed.

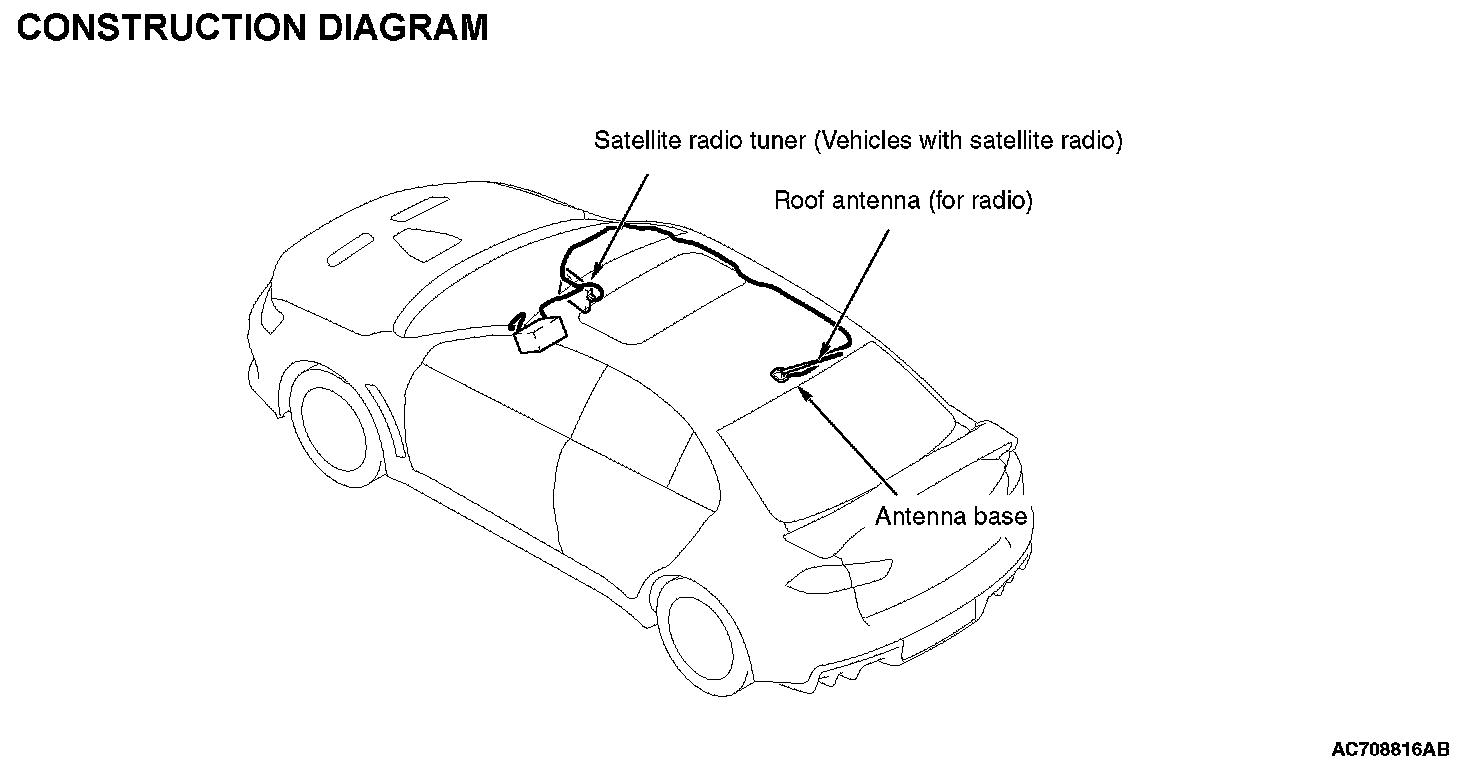

CONSTRUCTION DIAGRAM


Construction Diagram:
