Hands Free Cellular Phone System
DTC No.U0184 AUDIO CAN TimeoutCAUTION:
- If DTC U0184 is set, be sure to diagnose the CAN bus line.
- When replacing the module, always check that the communication circuit is normal.
TECHNICAL DESCRIPTION (COMMENT)
If the signal from the radio and CD player cannot be received, the hands free module sets the diagnostic trouble code No. U0184.
TROUBLESHOOTING HINTS
- The radio and CD player may be defective.
- The hands free module may be defective.
- The CAN bus may be defective.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

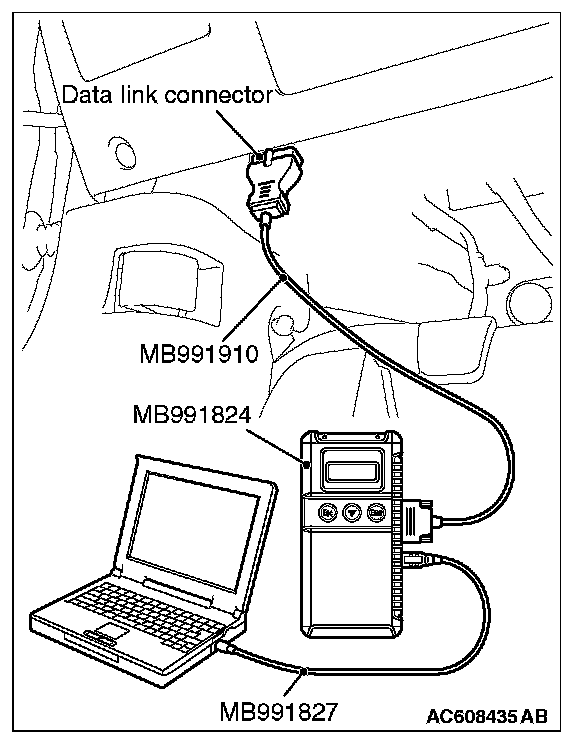

1. Connect scan tool MB991958. Refer to "How to connect the Scan Tool (M.U.T.-III)." How to Connect the Scan Tool (M.U.T.-III)
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES : Go to Step 2.
NO : Repair the CAN bus line.
STEP 2. Using scan tool MB991958, read the radio and CD player or CD changer diagnostic trouble code.
Check if DTC is set to the radio and CD player.
Q: Is the DTC set?
YES : Troubleshoot the radio and CD player. Diagnostic Trouble Code Descriptions
NO : Go to Step 3.
STEP 3. Using scan tool MB991958, read the ETACS diagnostic trouble code.
Check if the DTC U0184 is set to the ETACS-ECU.
Q: Is the DTC set?
YES : Go to Step 4.
NO : Go to Step 5.
STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the hands free module
1. Erase the DTC.
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?
YES : Replace the radio and CD player.
NO : The trouble can be an intermittent malfunction such as a poor connection or open circuit in the CAN bus lines between the radio and CD player and the hands free module.
STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the hands free module
1. Erase the DTC.
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?
YES : Replace the hands free module.
NO : The trouble can be an intermittent malfunction such as a poor connection or open circuit in the CAN bus lines between the radio and CD player and the hands free module.
