Multiport Fuel Injection (MFI)
DTC U0141: ETACS-ECU Time-outCAUTION:
- If the ECM output the DTC U0141, make sure to diagnose the CAN bus line.
- Before replacing the ECU, make sure that the communication circuit is operating normally.
DESCRIPTIONS OF MONITOR METHODS
There is no data from ETACS-ECU for the specified time. (ETACS-ECU also detect communication error with ECM.)
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable
Sensor (The sensor below is determined to be normal)
- Not applicable
DTC SET CONDITIONS

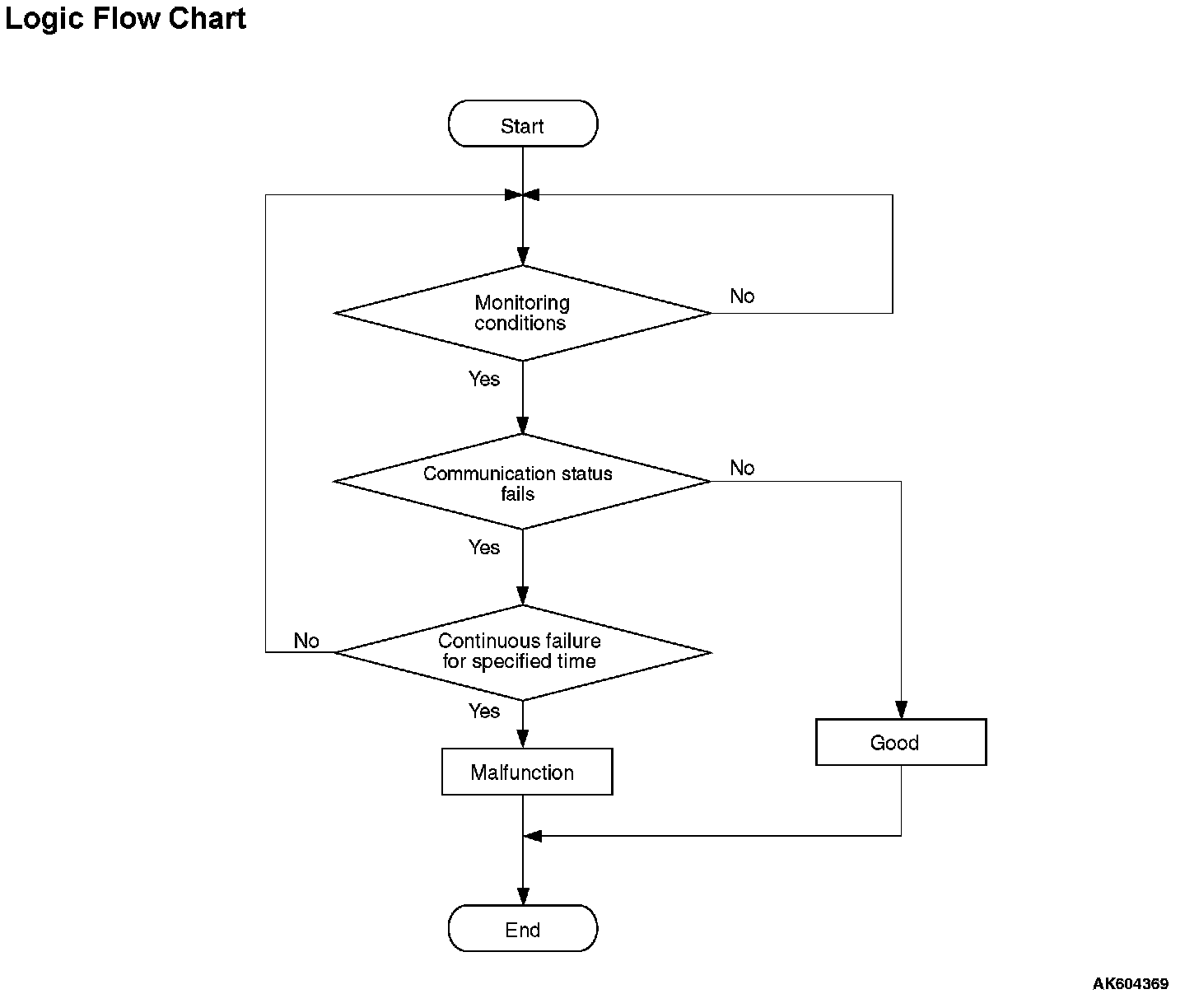

Logic Flow Chart:
Check Condition
- Battery positive voltage is between 10 and 16.5 volts.
Judgement Criterion
- Unable to receive ETACS-ECU signals through the CAN bus line for 4 seconds.
COMMENT
Current Trouble
- Some of the possible causes are a harness or connector damage between the ECM and the ETACS-ECU on the CAN bus line, a failure in the ETACS-ECU power supply system, a failure in the ETACS-ECU, or a failure in the ECM.
Past Trouble
- Proceed to troubleshoot based on a harness or connector damage on the CAN bus line between the ECM and ETACS-ECU, and a failure in the ETACS power supply system. Refer to "How to cope with past trouble".
NOTE: If a malfunction occurred in the past, a failure cannot be discovered through the MB991958 CAN bus diagnosis even if there might be a problem with the CAN bus. In this case.
FAIL-SAFE AND BACKUP FUNCTION
- None
OBD-II DRIVE CYCLE PATTERN
None.
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- CAN line harness damage or connector damage.
- ETACS-ECU failed.
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
STEP 1. Using scan tool MB991958, diagnose CAN bus line.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Diagnose CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line normal?
YES : Go to Step 2.
NO : Repair the CAN bus line. Then go to Step 6.
STEP 2. Using scan tool MB991958, read the diagnostic trouble code (DTC).
1. Turn the ignition switch to the "ON" position.
2. Read the ETACS-DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the ETACS-DTC set?
YES : Refer to ETACS - Diagnostic Trouble Code Chart. U0101
NO : Go to Step 3.
STEP 3. Using scan tool MB991958, read the diagnostic trouble code (DTC).
1. Turn the ignition switch to the "ON" position.
2. Read the S-AWC-DTC, TC-SST-DTC, Shift lever-DTC, ASC-DTC, KOS-DTC or WCM-DTC, SRS-DTC, Occupant classification-DTC, Combination meter-DTC, Radio and CD player or CD changer-DTC, CAN box unit-DTC, Hands-free module-DTC, Satellite radio tuner-DTC and A/C-DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0141 set?
YES : Go to Step 4.
NO : Go to Step 5.
STEP 4. Using scan tool MB991958, read the diagnostic trouble code (DTC).
1. Turn the ignition switch to the "ON" position.
2. After the MFI-DTC has been deleted, read the MFI-DTC again.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0141 set?
YES : Replace the ETACS-ECU. When the ECM is replaced, register the ID code. Then go to Step 6.
NO : It can be assumed that this malfunction is intermittent of CAN bus line between ECM and ETACS-ECU.
STEP 5. Using scan tool MB991958, read the diagnostic trouble code (DTC).
1. Turn the ignition switch to the "ON" position.
2. After the MFI-DTC has been deleted, read the MFI-DTC again.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0141 set?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 6.
NO : It can be assumed that this malfunction is intermittent of CAN bus line between ECM and ETACS-ECU.
STEP 6. Using scan tool MB991958, read the diagnostic trouble code (DTC).
1. Turn the ignition switch to the "ON" position.
2. After the MFI-DTC has been deleted, read the MFI-DTC again.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0141 set?
YES : Retry the troubleshooting.
NO : The inspection is complete.
