U0125

DTC U0125: G and yaw rate sensor message time-out error/message error














CAUTION:
^ If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
^ Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
^ Do not drop the G and yaw rate sensor or subject it to a shock.
^ When the G and yaw rate sensor is replaced, always perform the calibration to make ASC-ECU learn the neutral point.
^ When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch ON and OFF (vehicle information from ETACS-ECU is registered), always perform the calibration of steering wheel sensor, G and yaw rate sensor, brake fluid pressure sensor, cut valve, and inlet valve.

CIRCUIT OPERATION
The G and yaw rate sensor outputs the signal to ASC-ECU and AWC-ECU via the special CAN bus lines (Local CAN).

DTC SET CONDITIONS
This diagnostic trouble code is set if ASC-ECU cannot receive the signal sent from the G and yaw rate sensor even when the voltage supplied to ASC-ECU is normal.

PROBABLE CAUSES
^ Wring harness or connector failure in special CAN bus lines (Local CAN) between ASC-ECU and G and yaw rate sensor.
^ G and yaw rate sensor malfunction
^ ASC-ECU malfunction
^ External noise interference

DIAGNOSIS

Required Special Tools:
^ MB991958 Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827 M.U.T.-III USB Cable
^ MB991910 M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus lines.
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Repair the CAN bus lines. (Refer to Troubleshooting Can Bus Diagnostics Table.) After repairing the CAN bus line, go to Step 3.

STEP 2. Check for diagnostic trouble codes
Check if diagnostic trouble code No. UO251, U0440, and U0435 are simultaneously set in ASC-ECU.
Q: Are DTCs U0251, U0440 or U0435 set?
YES: Perform troubleshooting for the diagnostic trouble code that is set. (Refer to U0251.)
NO: Go to Step 3.

STEP 3. DTC recheck after repairing the CAN bus line
Q: Is DTC U0125 set?
YES: Go to Step 4.
NO: This diagnosis is complete.

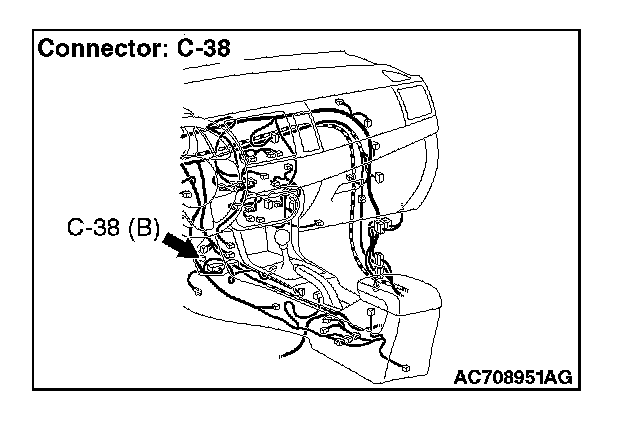

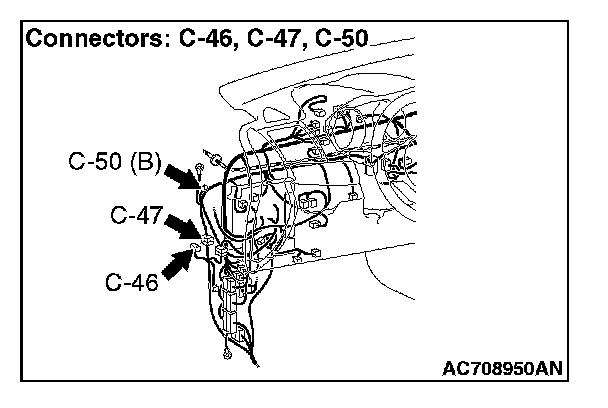

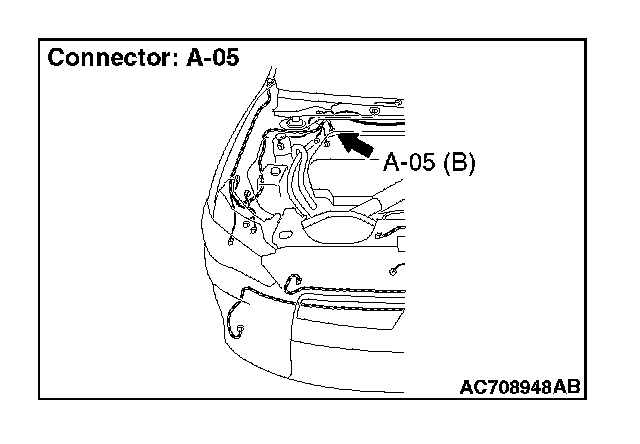

STEP 4. Connector check: A-05 ASC-ECU connector, C-46 AWC-ECU connector, C-47 intermediate connector, C-50 joint connector
Q: Is the check result normal?
YES: Go to Step 5.
NO: Repair the connector, and then go to Step 8.

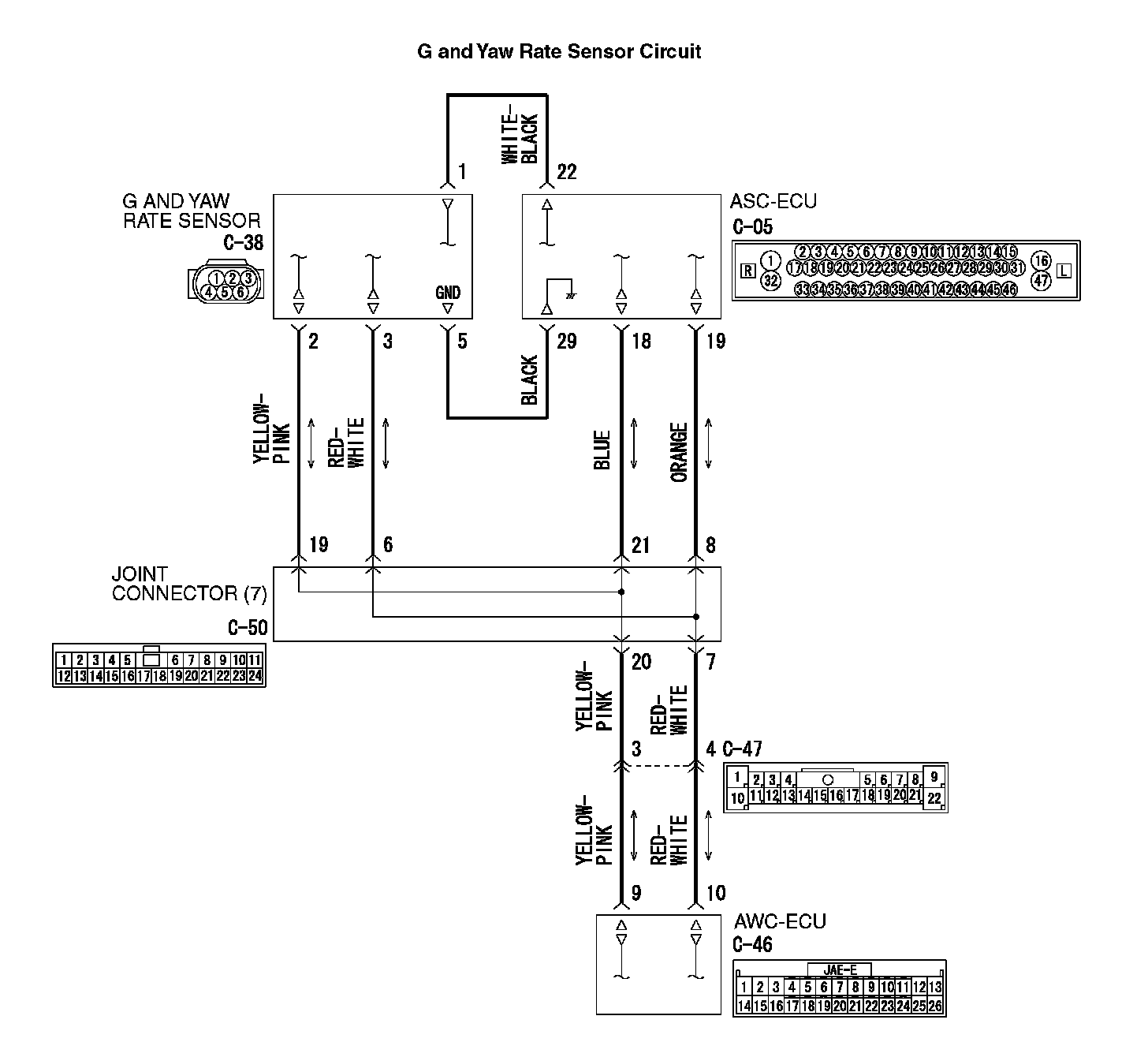

STEP 5. Wiring harness check between A-05 ASC-ECU connector terminal No. 18 and C-38 G and yaw rate sensor connector terminal No. 2, between A-05 ASC-ECU connector terminal No. 19 and C-38 G and yaw rate sensor connector terminal No. 3, between C-46 AWC-ECU connector terminal No. 9 and C-38 G and yaw rate sensor connector terminal No. 2, between C-46 AWC-ECU connector terminal No. 10 and C-38 G and yaw rate sensor connector terminal No. 3
^ Open or short circuit check of communication circuit
Q: Is the check result normal?
YES: Go to Step 6.
NO: Repair the wiring harness, and then go to Step 8.

STEP 6. Check whether the DTC is reset.
Q: Is DTC U0125 set?
YES: Replace the G and yaw rate sensor. Then go to Step 7.
NO: Intermittent malfunction.

STEP 7. Check whether the DTC is reset.
Q: Is DTC U0125 set?
YES: Replace the hydraulic unit (incorporates in ASC-ECU). Then go to Step 8.
NO: The procedure is complete.

STEP 8. Check whether the DTC is reset.
Q: Is DTC U0125 set?
YES: Return to Step 1.
NO: The procedure is complete.
