DTC P1829: Shift Fork Position Sensor 2 System (Poor performance)CAUTION
^ If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
^ Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
DIAGNOSTIC FUNCTION
TC-SST-ECU checks that the shift fork position sensor 2 is normal.
DESCRIPTIONS OF MONITOR METHODS
The shift fork position sensor 2 is determined to be abnormal.
MONITOR EXECUTION
^ Continuous
MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC, stored in memory for the item monitored below)
^ P1825: Shift fork position sensor 2 system (voltage low range out)
^ P1826: Shift fork position sensor 2 system (Voltage high range out)
^ P1827: Shift fork position sensor 2 system (Output range out)
^ P1828: Shift fork position sensor 2 system (Neutral)
^ P183D: Shift fork 2 malfunction
^ P1852: Shift fork 1 or 2 opposite direction movement
^ P1855: Shift fork 3 or 4 opposite direction movement
^ P1857: Odd number gear axle interlock
^ P1876: Gear block 1st
^ P1877: Gear block 2nd
^ P1878: Gear block 3rd
^ P1879: Gear block 4th
^ P187A: Gear block 5th
^ P187B: Gear block 6th
^ P187C: Gear block reverse
Sensor (The sensor below is determined to be normal)
^ Not applicable

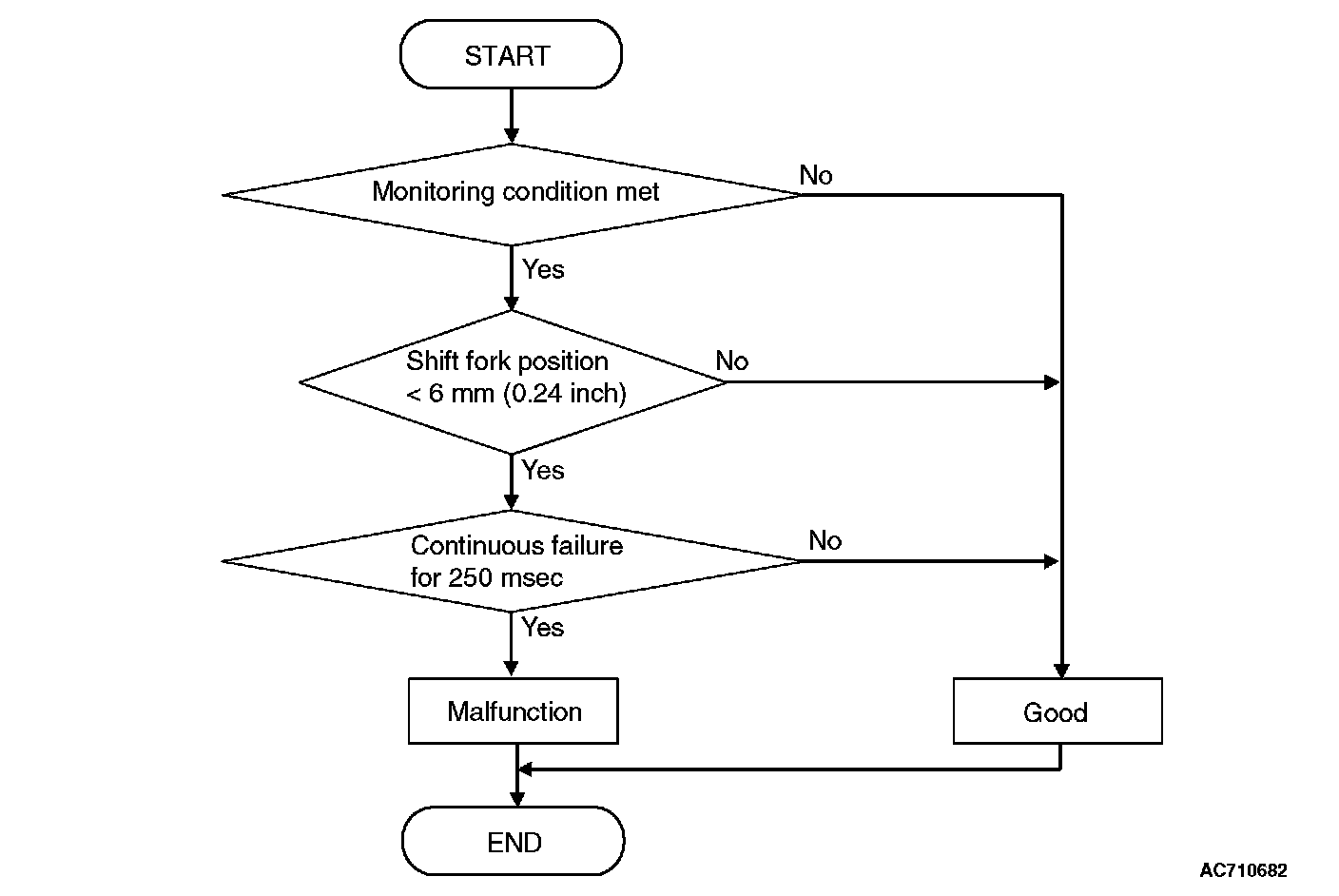

LOGIC FLOW CHARTS (Monitor Sequence) [Shift fork 2 current gear: 5th gear]
DTC SET CONDITIONS [SHIFT FORK 2 CURRENT GEAR: 5TH GEAR]
Check Conditions
^ Voltage of battery: 8 V or more.
^ Voltage of battery: 16.5 V or less.
^ Engine speed: 650 r/min or more.
^ Time since above engine condition: 1.5 seconds or more.
^ Input shaft 1 (odd) speed: 500 r/min or more.
^ Shift fork 2 current gear: 5th gear.
^ Clutch 1 (odd) transmit torque: 40 Nm (30 ft-lb) or more.
^ Requested shift fork: Not shift fork 2.
JUDGMENT CRITERIA
^ Shift fork 2 position: 6 mm (0.24 inch) or less. (250 millisecond)
OBD-II DRIVE CYCLE PATTERN [SHIFT FORK 2 CURRENT GEAR: 5TH GEAR]
The travel distance of the shift fork 2 remains 6 mm (0.24 inch) or more for 250 millisecond.

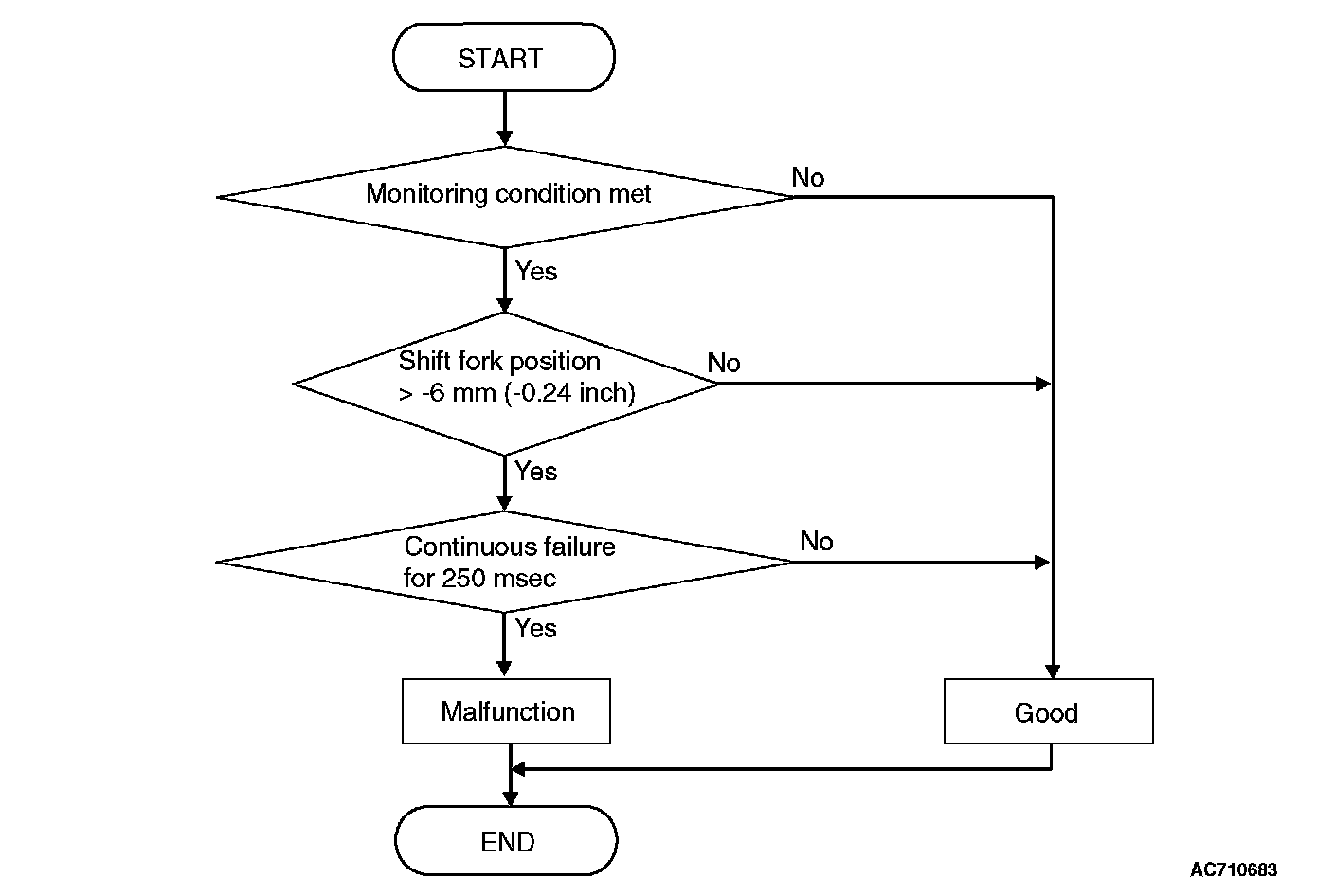

LOGIC FLOW CHARTS (Monitor Sequence) [Shift fork 2 current gear: 3rd gear]
DTC SET CONDITIONS [SHIFT FORK 2 CURRENT GEAR: 3RD GEAR]
Check Conditions
^ Voltage of battery: 8 V or more.
^ Voltage of battery: 16.5 V or less.
^ Engine speed: 650 r/min or more.
^ Time since above engine condition: 1.5 seconds or more.
^ Input shaft 1 (odd) speed: 500 r/min or more.
^ Shift fork 2 current gear: 3rd gear.
^ Clutch 1 (odd) transmit torque: 40 Nm (30 ft-lb) or more.
^ Requested shift fork: Not shift fork 2.
JUDGMENT CRITERIA
^ Shift fork 2 position: -6 mm (-0.24 inch) or more. (250 millisecond)
OBD-II DRIVE CYCLE PATTERN [SHIFT FORK 2 CURRENT GEAR: 3RD GEAR]
The travel distance of the shift fork 2 remains -6 mm (-0.24 inch) or less for 250 millisecond.
PROBABLE CAUSES
^ Malfunction of TC-SST-ECU
^ Malfunction of shift fork position sensor 2
DIAGNOSTIC PROCEDURE
Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827: M.U.T.-III USB Cable
^ MB991910: M.U.T.-III Main Harness A
STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Repair the CAN bus lines. After repairing the CAN bus line, go to Step 2.
STEP 2. Check whether the DTC is reset.
After driving in the 5th gear, check that the DTC is reset.
Q: Is DTC No. P1829 set?
YES: Go to Step 3.
NO: Intermittent malfunction.
STEP 3. Scan tool Teach-in
1) Carry out the Item No. 1: Plausibility check. Teach-In Reference Table
2) After Teach-In, check which result ("Yes" or "No") is displayed in the Data list No. 101: Normal End. Teach-In Reference Table
Q: Which is displayed, "Yes" or "No"?
"Yes": Replace the transaxle assembly.
"No": Go to Step 4.
STEP 4. Replace the mechatronic assembly, and check if the DTC is reset.
1) Replace the mechatronic assembly.
2) Drive in the 5th gear.
3) Check the DTC.
Q: Is DTC No. P1829 set?
YES: Replace the transaxle assembly.
NO: This diagnosis is complete.
