P0964
DTC P0964: Clutch Cooling Flow Solenoid System (Open circuit)CAUTION
^ If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
^ Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
DIAGNOSTIC FUNCTION
TC-SST-ECU checks that the clutch cooling flow solenoid circuit is normal.
DESCRIPTIONS OF MONITOR METHODS
The clutch cooling flow solenoid circuit is determined to be open.
MONITOR EXECUTION
^ Continuous
MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
^ P0776: Clutch cooling flow solenoid system (Drive current range out)
^ P0777: Clutch cooling flow solenoid system (Stuck)
^ P0965: Clutch cooling flow solenoid system (Overvoltage)
^ P0966: Clutch cooling flow solenoid system (Short to ground)
^ P0967: Clutch cooling flow solenoid system (Short to power supply)
Sensor (The sensor below is determined to be normal)
^ Not applicable

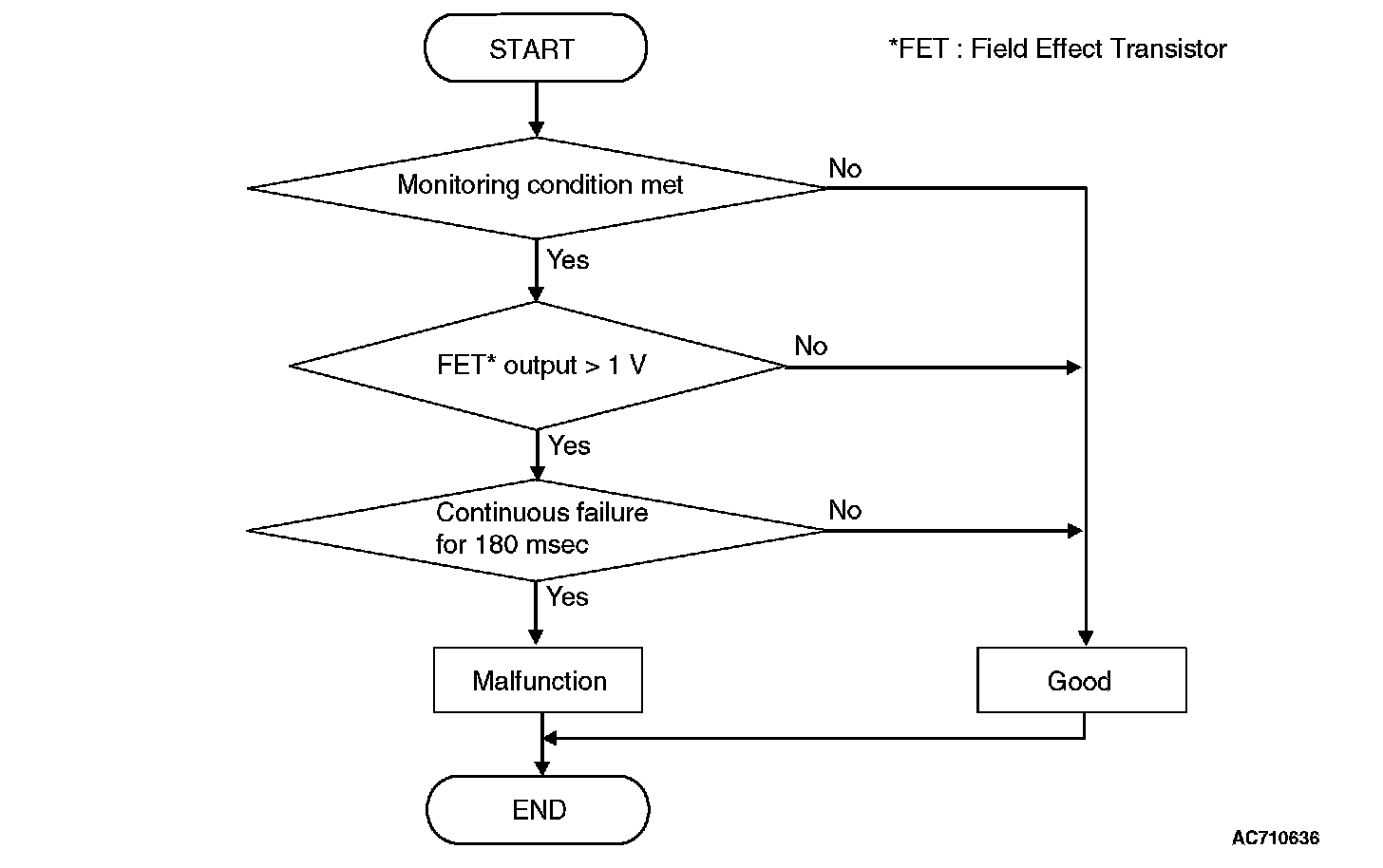

LOGIC FLOW CHARTS (Monitor Sequence)
DTC SET CONDITIONS
Check Conditions
^ Voltage of battery: 8 V or more.
^ Voltage of battery: 16.5 V or less.
JUDGMENT CRITERIA
^ FET (Field Effect Transistor) output: 1 V or more. (180 millisecond)
OBD-II DRIVE CYCLE PATTERN
The FET channel output remains 1 V or less for 180 milliseconds.
PROBABLE CAUSES
^ Malfunction of TC-SST-ECU
^ Malfunction of clutch cooling flow solenoid
DIAGNOSTIC PROCEDURE
Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827: M.U.T.-III USB Cable
^ MB991910: M.U.T.-III Main Harness A
STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.
Q: Is the check result normal?
YES: Go to Step 2.
NO: Repair the CAN bus lines. After repairing the CAN bus line, go to Step 2.
STEP 2. Check whether the DTC is reset.
Q: Is DTC No. P0964 set?
YES: Replace the mechatronic assembly.
NO: Intermittent malfunction.
