P0365

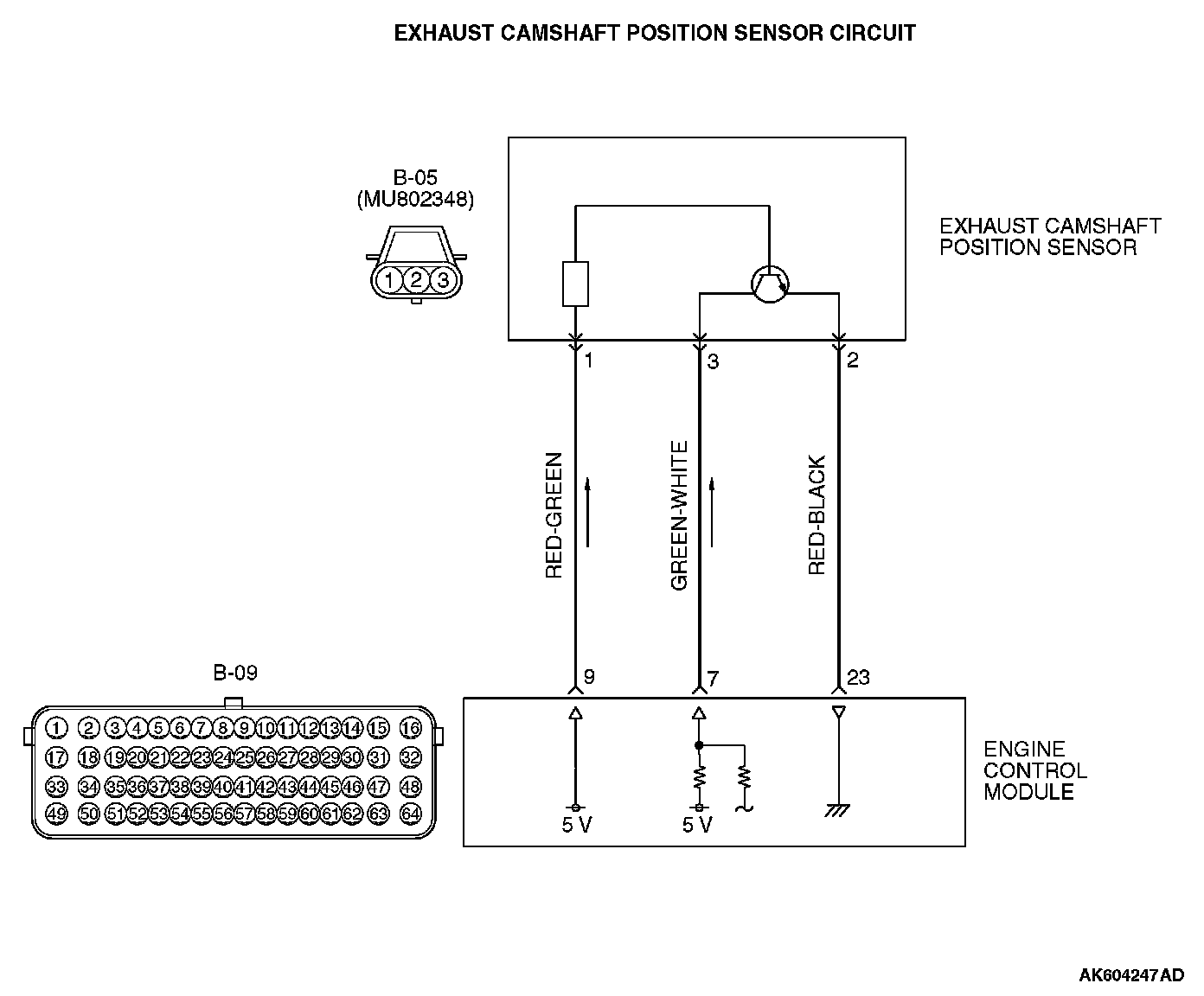

DTC P0365: Exhaust Camshaft Position Sensor CircuitExhaust Camshaft Position Sensor Circuit (Part 1):
Exhaust Camshaft Position Sensor Circuit (Part 2):
CIRCUIT OPERATION
- The exhaust camshaft position sensor power is supplied from the ECM (terminal No. 9).
- Terminal No. 2 of the exhaust camshaft position sensor is grounded with ECM (terminal No. 23).
- A 5-volt voltage is applied on the exhaust camshaft position sensor output terminal (terminal No. 3) from the ECM (terminal No. 7). The exhaust camshaft position sensor generates a pulse signal when the output terminal is opened and grounded.
TECHNICAL DESCRIPTION
- The exhaust camshaft position sensor functions to detect the top dead center position of the number 1 cylinder and to convert that data to pulse signals that are input to the ECM.
- When the engine is running, the exhaust camshaft position sensor outputs a pulse signal.
- The ECM checks whether pulse signal is input while the engine is cranking.
DESCRIPTIONS OF MONITOR METHODS
- Exhaust camshaft position sensor signal does not change.
- Exhaust camshaft position sensor signal is not normal pattern.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable
Sensor (The sensor below is determined to be normal)
- Not applicable

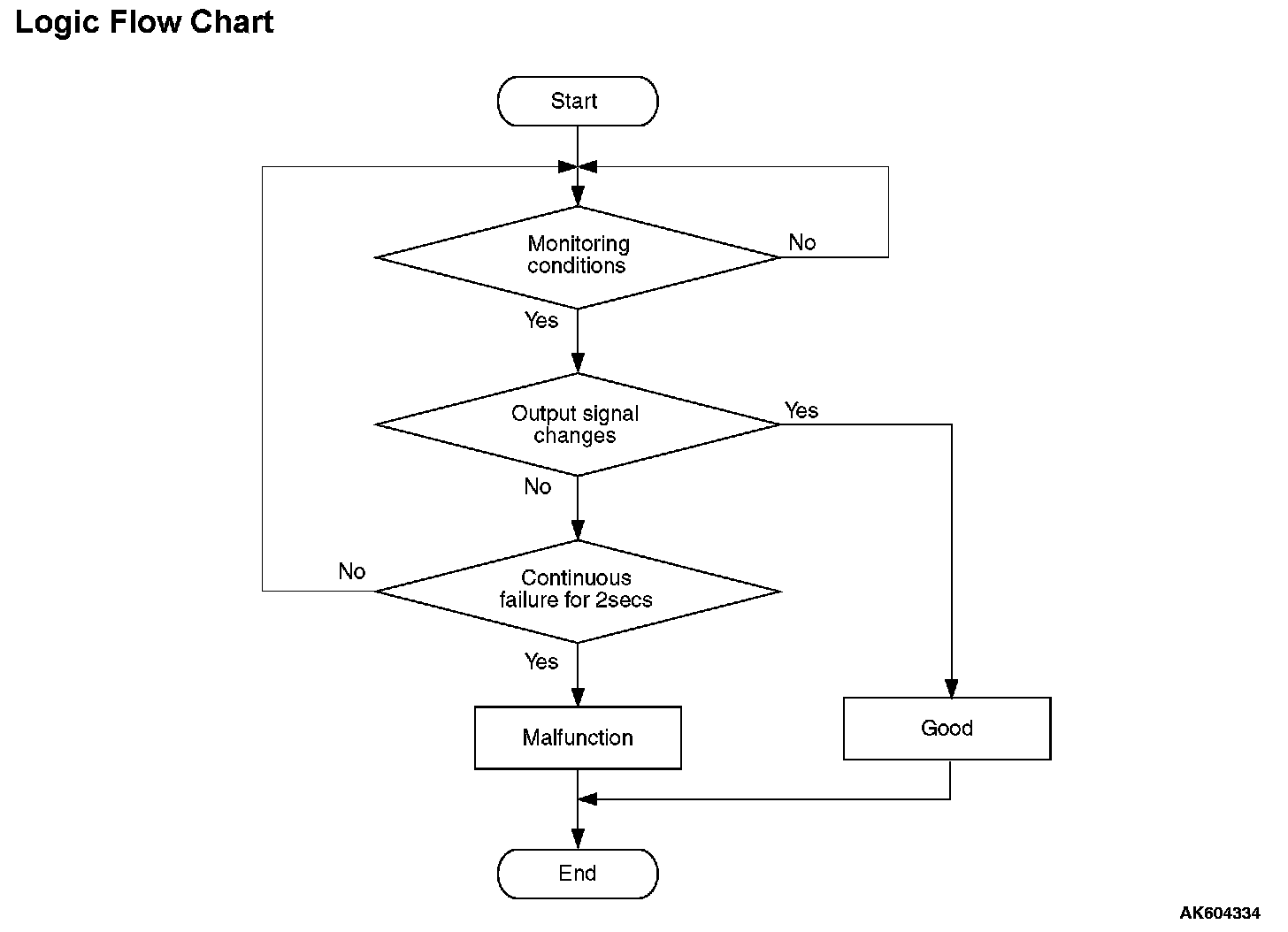

DTC SET CONDITIONS [Circuit continuity]
Logic Flow Chart
Logic Flow Chart:
Check Condition
- Engine is being cranked.
or
- Engine speed is higher than 500 r/min excluding during cranking.
Judgement Criterion
- Exhaust camshaft position sensor output voltage or has not changed (no pulse signal is input) for 2 seconds.

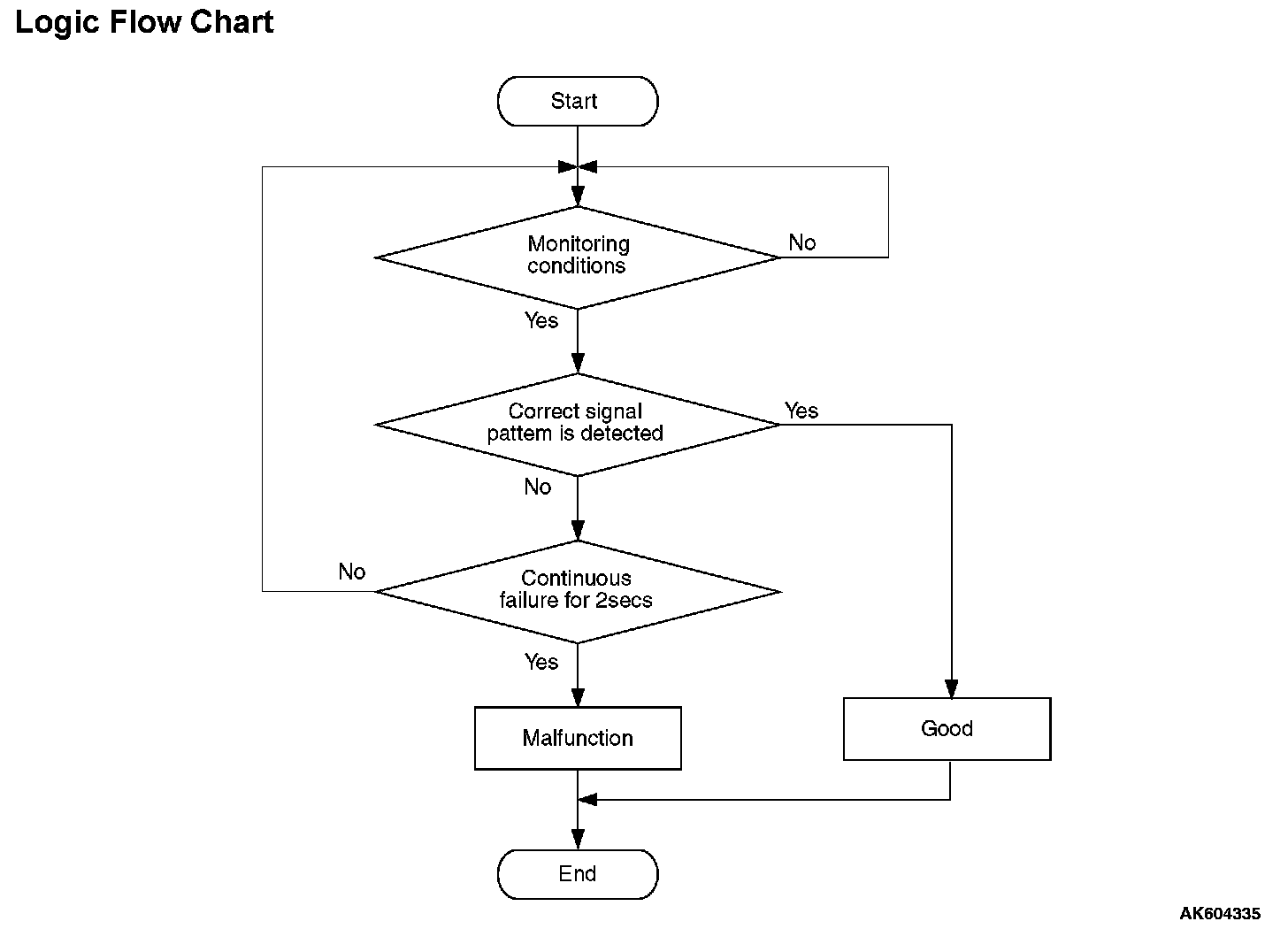

DTC SET CONDITIONS [Range/Performance problem -alignment]
Logic Flow Chart
Logic Flow Chart:
Check Condition
- Engine is being cranked.
or
- Engine speed is higher than 500 r/min excluding during cranking.
Judgement Criterion
- Normal signal pattern has not been input for cylinder identification from the crankshaft position sensor signal and exhaust camshaft position sensor signal for 2 seconds.
FAIL-SAFE AND BACKUP FUNCTION
- Does not control variable valve timing (V.V.T.).
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23. OBD- II Drive Cycle
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are: )
- Exhaust camshaft position sensor failed.
- Open or shorted exhaust camshaft position sensor circuit, or harness damage, or connector damage.
- Exhaust camshaft failed.
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991709: Test Harness
- MB992110: Power Plant ECU Check Harness

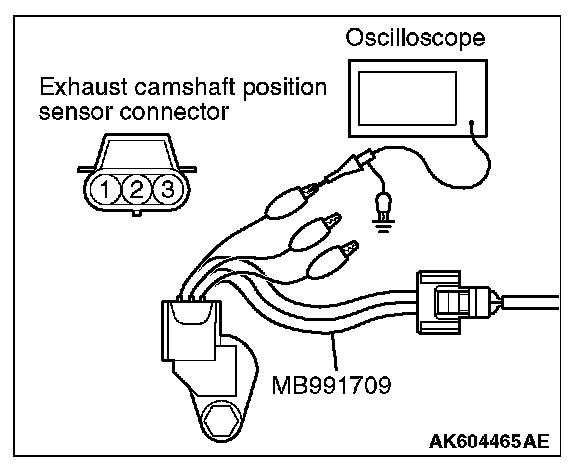

STEP 1. Using the oscilloscope, check the exhaust camshaft position sensor.
1. Disconnect the exhaust camshaft position sensor connector B-05, and connect test harness special tool (MB991709) between the separated connectors. (All terminals should be connected.)
2. Connect the oscilloscope probe to the exhaust camshaft position sensor side connector terminal No. 3.
NOTE: When measuring with the ECM side connector, disconnect all ECM connectors. Connect the check harness special tool (MB992110) between the separated connectors. Then connect the oscilloscope probe to the check harness connector terminal No. 7.
3. Start the engine and run at idle.

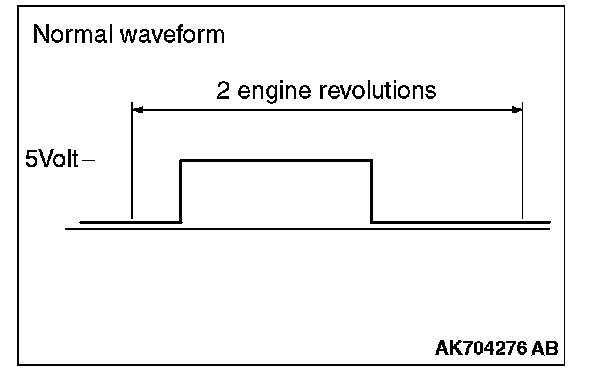

4. Check the waveform.
- The waveform should show a pattern similar to the illustration.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?
YES : Go to Step 2.
NO : Go to Step 4.

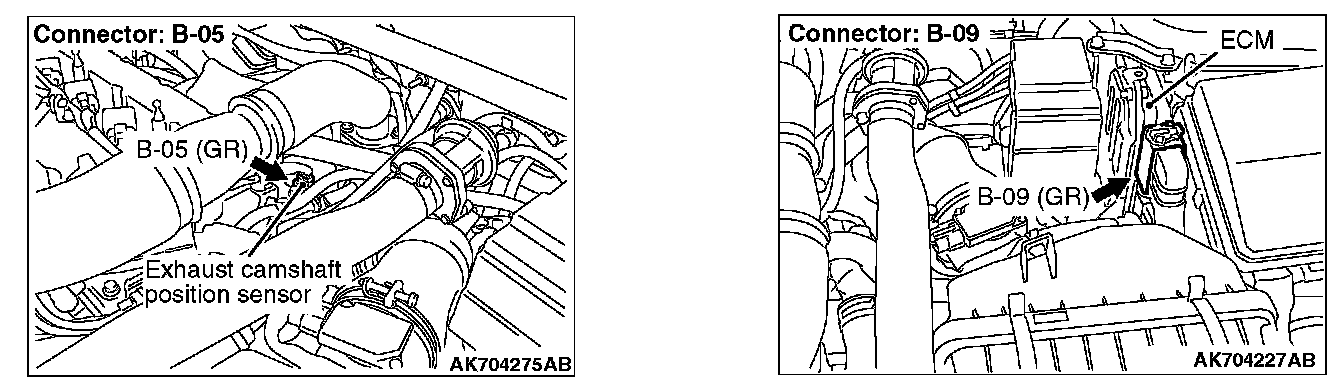

STEP 2. Check harness connector B-05 at exhaust camshaft position sensor and harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 3.
NO : Repair or replace it. Then go to Step 19.
STEP 3. Check the trouble symptoms.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23. OBD- II Drive Cycle
2. Check the diagnostic trouble code (DTC).
Q: Is DTC P0365 set?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 19.
NO : It can be assumed that this malfunction is intermittent.
STEP 4. Check harness connector B-05 at exhaust camshaft position sensor for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 5.
NO : Repair or replace it. Then go to Step 19.

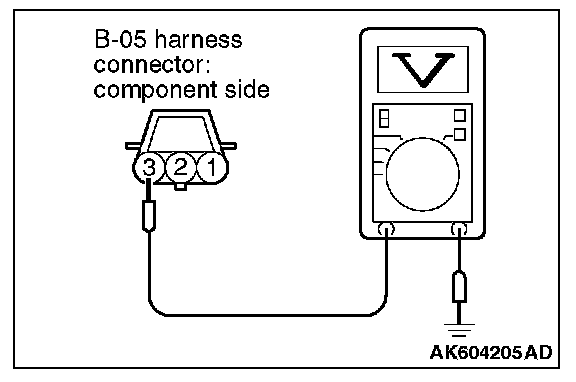

STEP 5. Measure the sensor supply voltage at exhaust camshaft position sensor connector B-05.
1. Disconnect the connector B-05 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 3 and ground.
- Voltage should be between 4.9 and 5.1 volts.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?
YES : Go to Step 9.
NO : Go to Step 6.
STEP 6. Check harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 7.
NO : Repair or replace it. Then go to Step 19.

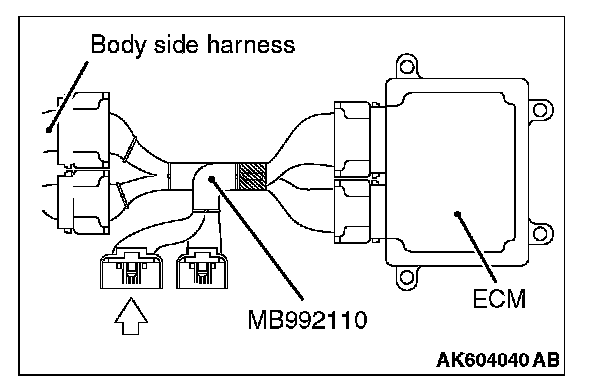

STEP 7. Measure the sensor supply voltage at ECM connector B-09 by using power plant ECU check harness special tool MB992110.
1. Disconnect the all ECM connectors. Connect the power plant ECU check harness special tool MB992110 between the separated connectors.
2. Disconnect the exhaust camshaft position sensor connector B-05.
3. Turn the ignition switch to the "ON" position.
4. Measure the voltage between terminal No. 7 and ground.
- Voltage should be between 4.9 and 5.1 volts.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?
YES : Repair harness wire between exhaust camshaft position sensor connector B-05 (terminal No. 3) and ECM connector B-09 (terminal No. 7) because of open circuit. Then go to Step 19.
NO : Go to Step 8.
STEP 8. Check for short circuit to ground between exhaust camshaft position sensor connector B-05 (terminal No. 3) and ECM connector B-09 (terminal No. 7).
Q: Is the harness wire in good condition?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 19.
NO : Repair it. Then go to Step 19.
STEP 9. Measure the power supply voltage at exhaust camshaft position sensor connector B-05.
1. Disconnect the connector B-05 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 1 and ground.
- Voltage should be between 4.9 and 5.1 volts.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?
YES : Go to Step 12.
NO : Go to Step 10.
STEP 10. Check harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 11.
NO : Repair or replace it. Then go to Step 19.
STEP 11. Check for open circuit and short circuit to ground between exhaust camshaft position sensor connector B-05 (terminal No. 1) and ECM connector B-09 (terminal No. 9).
Q: Is the harness wire in good condition?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 19.
NO : Repair it. Then go to Step 19.

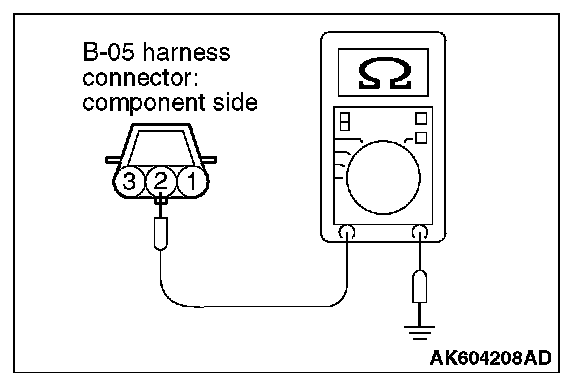

STEP 12. Check the continuity at exhaust camshaft position sensor connector B-05.
1. Disconnect the connector B-05 and measure at the harness side.
2. Check for the continuity between terminal No. 2 and ground.
- Continuity (2 ohms or less).
Q: Does continuity exist?
YES : Go to Step 15.
NO : Go to Step 13.
STEP 13. Check harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 14.
NO : Repair or replace it. Then go to Step 19.
STEP 14. Check for open circuit and harness damage between exhaust camshaft position sensor connector B-05 (terminal No. 2) and ECM connector B-09 (terminal No. 23).
Q: Is the harness wire in good condition?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 19.
NO : Repair it. Then go to Step 19.
STEP 15. Check harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 16.
NO : Repair or replace it. Then go to Step 19.
STEP 16. Check for harness damage between ECM connector B-09 (terminal No. 9) and exhaust camshaft position sensor connector B-05 (terminal No. 1).
Q: Is the harness wire in good condition?
YES : Go to Step 17.
NO : Repair it. Then go to Step 19.
STEP 17. Check for harness damage between exhaust camshaft position sensor connector B-05 (terminal No. 3) and ECM connector B-09 (terminal No. 7).
Q: Is the harness wire in good condition?
YES : Go to Step 18.
NO : Repair it. Then go to Step 19.
STEP 18. Check the exhaust camshaft position sensing portion.
Q: Is the exhaust camshaft position sensing portion in good condition?
YES : Replace the exhaust camshaft position sensor. Then go to Step 19.
NO : Replace the exhaust camshaft. Then go to Step 19.
STEP 19. Test the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23. OBD- II Drive Cycle
2. Check the diagnostic trouble code (DTC).
Q: Is DTC P0365 set?
YES : Retry the troubleshooting.
NO : The inspection is complete.
