P0171
DTC P0171: System too LeanFuel Trim Circuit
- Refer to DTC P0201 -Injector Circuit-Cylinder 1, P0201 DTC P0202 -Injector Circuit-Cylinder 2, P0202 DTC P0203 -Injector Circuit-Cylinder 3, P0203 DTC P0204 -Injector Circuit-Cylinder 4. P0204
CIRCUIT OPERATION
- Refer to DTC P0201 -Injector Circuit-Cylinder 1, P0201 DTC P0202 -Injector Circuit-Cylinder 2, P0202 DTC P0203 -Injector Circuit-Cylinder 3, P0203 DTC P0204 -Injector Circuit-Cylinder 4. P0204
TECHNICAL DESCRIPTION
- If a malfunction occurs in the fuel system, the fuel trim value becomes too large.
- The ECM checks whether the fuel trim value is within a specified range.
DESCRIPTIONS OF MONITOR METHODS
Air/fuel learning value (long time fuel trim) and air/fuel feedback integral value (short time fuel trim) are too lean.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Misfire monitor
Sensor (The sensor below is determined to be normal)
- Mass airflow sensor
- Engine coolant temperature sensor
- Intake air temperature sensor
- Barometric pressure sensor
- Throttle position sensor
DTC SET CONDITIONS

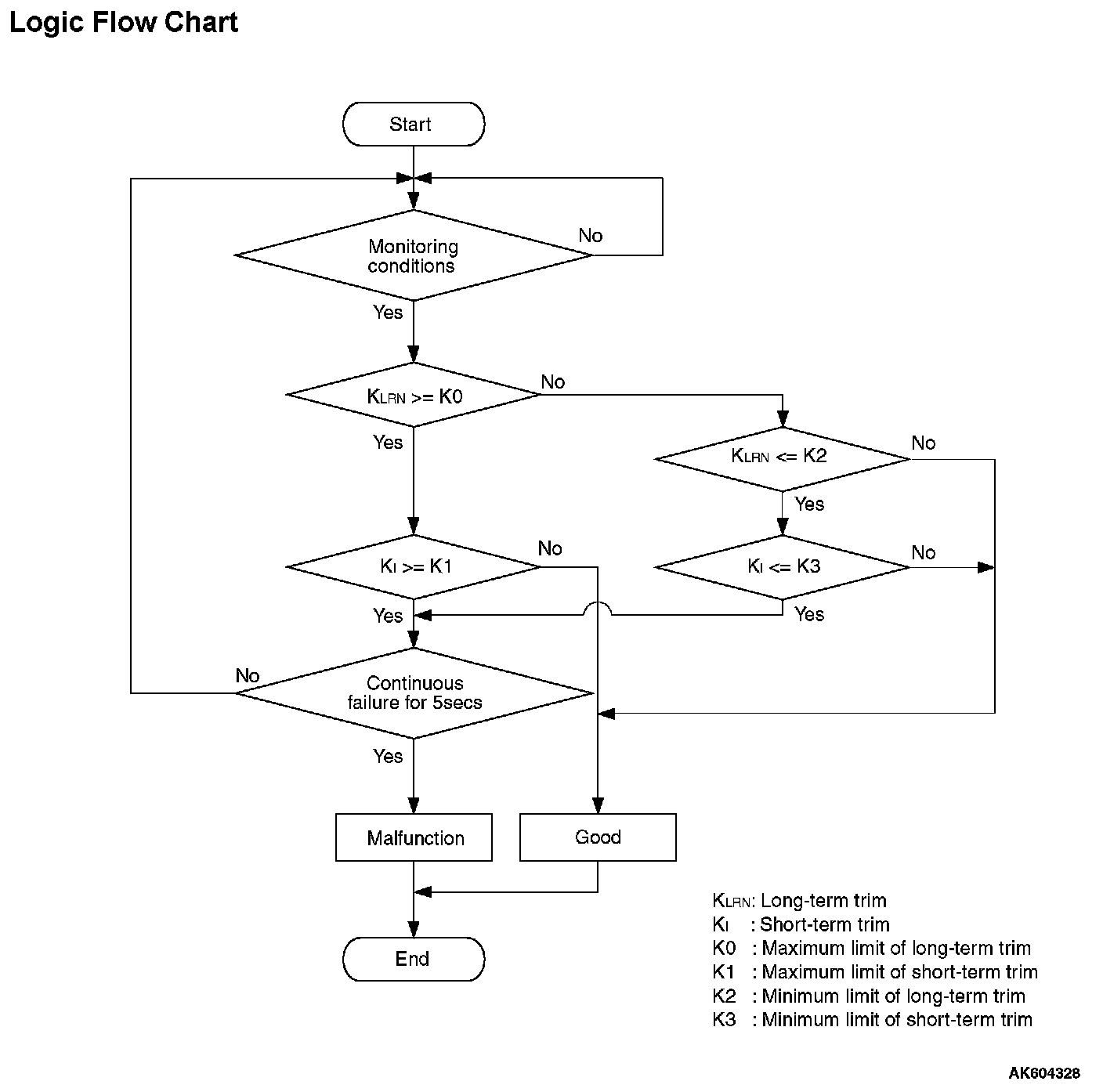

Logic Flow Chart
Logic Flow Chart:
Check Conditions
- Engine coolant temperature is lower than 100°C (212°F) when the engine is started.
- Intake air temperature is lower than 60°C (140°F) when the engine is started.
- Under the closed loop air/fuel ratio control.
- Engine coolant temperature is higher than 76°C (169°F).
- Mass airflow sensor output is 13 g/sec or more.
Judgement Criterion
- Long-term fuel trim has continued to be +12.5 percent or higher for 5 seconds.
or
- Short-term fuel trim has continued to be +7.0 percent or higher for 5 seconds.
Check Conditions
- Engine coolant temperature is lower than 100°C (212°F) when the engine is started.
- Intake air temperature is lower than 60°C (140°F) when the engine is started.
- Under the closed loop air/fuel ratio control.
- Engine coolant temperature is higher than 76°C (169°F).
- Mass airflow sensor output is less than 13 g/sec.
Judgement Criterion
- Long-term fuel trim has continued to be +12.5 percent or higher for 5 seconds.
or
- Short-term fuel trim has continued to be +12.1 percent or higher for 5 seconds.
Check Conditions
- Engine coolant temperature is higher than 100°C (212°F) when the engine is started.
- Intake air temperature is higher than 60°C (140°F) when the engine is started.
- Under the closed loop air/fuel ratio control.
- Engine coolant temperature is higher than 76°C (169°F).
- Mass airflow sensor output is 13 g/sec or more.
Judgement Criteria
- Long-term fuel trim has continued to be +12.5 percent or higher for 5 seconds.
or
- Short-term fuel trim has continued to be +17.2 percent or higher for 5 seconds.
Check Conditions
- Engine coolant temperature is higher than 100°C (212°F) when the engine is started.
- Intake air temperature is higher than 60°C (140°F) when the engine is started.
- Under the closed loop air/fuel ratio control.
- Engine coolant temperature is higher than 76°C (169°F).
- Mass airflow sensor output is less than 13 g/sec.
Judgement Criterion
- Long-term fuel trim has continued to be +12.5 percent or higher for 5 seconds.
or
- Short-term fuel trim has continued to be +22.3 percent or higher for 5 seconds.
Check Conditions
- Engine coolant temperature is higher than 76°C (169°F).
- Under the closed loop air/fuel ratio control.
Judgement Criterion
- Long-term fuel trim has continued to be +12.5 percent for 2 seconds.
or
- Short-term fuel trim has continued to be +25.0 percent for 2 seconds.
FAIL-SAFE AND BACKUP FUNCTION
- None
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 21. OBD- II Drive Cycle
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Mass airflow sensor failed.
- Injector failed.
- Incorrect fuel pressure.
- Air drawn in from gaps in gasket, seals, etc.
- Engine coolant temperature sensor failed.
- Intake air temperature sensor failed.
- Barometric pressure sensor failed.
- Manifold absolute pressure sensor failed.
- Exhaust leak.
- Use of incorrect or contaminated fuel.
- Harness damage in injector circuit or connector damage.
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
STEP 1. Check for exhaust leak.
Q: Are there any abnormalities?
YES : Repair it. Then go to Step 14.
NO : Go to Step 2.
STEP 2. Check for intake system vacuum leak.
Q: Are there any abnormalities?
YES : Repair it. Then go to Step 14.
NO : Go to Step 3.
STEP 3. Using scan tool MB991958, check data list item 10: Mass Airflow Sensor.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Start the engine and run at idle.
3. Set scan tool MB991958 to the data reading mode for item 10, Mass Airflow Sensor.
4. Warm up the engine to normal operating temperature: 80°C to 95°C (176°F to 203°F).
- When idling, between 1,300 and 1,650 millivolts.
- When 2,500 r/min, between 1,620 and 2,100 millivolts.
5. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES : Go to Step 4.
NO : Refer to DTC P0101 -Mass Airflow Circuit Range/Performance Problem, P0101 DTC P0102 -Mass Airflow Circuit Low Input, P0102 DTC P0103 -Mass Airflow Circuit High Input. P0103
STEP 4. Using scan tool MB991958, check data list item 5: Intake Air Temperature Sensor.
1. Turn the ignition switch to the "ON" position.
2. Set scan tool MB991958 to the data reading mode for item 5, Intake Air Temperature Sensor.
- The intake air temperature and temperature shown with the scan tool should approximately match.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES : Go to Step 5.
NO : Refer to DTC P0111 -Intake Air Temperature Circuit Range/Performance Problem (sensor 1), P0111 DTC P0112 -Intake Air Temperature Circuit Low Input (sensor 1), P0112 DTC P0113 -Intake Air Temperature Circuit High Input (sensor 1). P0113
STEP 5. Using scan tool MB991958, check data list item 6: Engine Coolant Temperature Sensor.
1. Turn the ignition switch to the "ON" position.
2. Set scan tool MB991958 to the data reading mode for item 6, Engine Coolant Temperature Sensor.
- The engine coolant temperature and temperature shown with the scan tool should approximately match.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES : Go to Step 6.
NO : Refer to DTC P0116 -Engine Coolant Temperature Circuit Range/Performance Problem, P0116 DTC P0117 -Engine Coolant Temperature Circuit Low Input, P0117 DTC P0118 -Engine Coolant Temperature Circuit High Input. P0118
STEP 6. Using scan tool MB991958, check data list item 8: Manifold Absolute Pressure Sensor.
1. Turn the ignition switch the "ON" position.
2. Set scan tool MB991958 to the data reading mode for item 8, Manifold Absolute Pressure Sensor.
- When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).
- When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).
- When altitude is 1,200 m (3,937 feet), 88 kPa (26.0 in.Hg).
- When altitude is 1,800 m (5,906 feet), 81 kPa (23.9 in.Hg).
3. Start the engine.
- When the engine is idling, 31 - 45 kPa (9.1 -13.3 in.Hg).
- When the engine is suddenly revved, manifold absolute pressure varies.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES : Go to Step 7.
NO : Refer to DTC P0106 -Manifold Absolute Pressure Circuit Range/Performance Problem, P0106 DTC P0107 -Manifold Absolute Pressure Circuit Low Input, P0107 DTC P0108 -Manifold Absolute Pressure Circuit High Input. P0108
STEP 7. Check harness connector B-101, B-102, B-103 and B-104 at injector for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 8.
NO : Repair or replace it. Then go to Step 14.

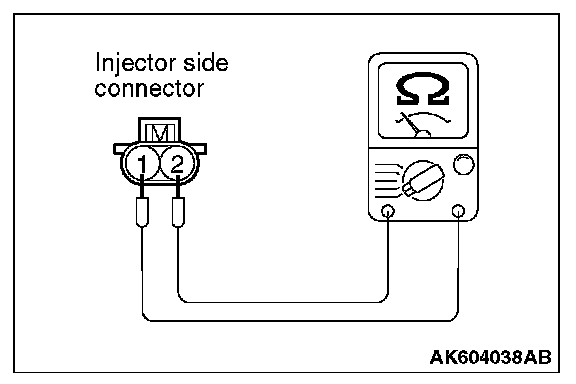

STEP 8. Check the injector.
1. Disconnect the injector connector B-101, B-102, B-103 and B-104.
2. Measure the resistance between each injector side connector terminal No. 1 and No. 2.
Standard value: 10.5 - 13.5 Ohms [at 20°C (68°F)]
Q: Is the measured resistance between 10.5 and 13.5 Ohms [at 20°C (68°F)]?
YES : Go to Step 9.
NO : Replace the injector. Then go to Step 14.
STEP 9. Check harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 10.
NO : Repair or replace it. Then go to Step 14.
STEP 10. Check for harness damage between injector connector and ECM connector.
a. Check the harness wire between injector connector B-101 (terminal No. 2) and ECM connector B-09 (terminal No. 2) at No. 1 cylinder injector.
b. Check the harness wire between injector connector B-102 (terminal No. 2) and ECM connector B-09 (terminal No.3) at No. 2 cylinder injector.
c. Check the harness wire between injector connector B-103 (terminal No. 2) and ECM connector B-09 (terminal No. 18) at No. 3 cylinder injector.
d. Check the harness wire between injector connector B-104 (terminal No. 2) and ECM connector B-09 (terminal No. 19) at No. 4 cylinder injector.
Q: Is the harness wire in good condition?
YES : Go to Step 11.
NO : Repair it. Then go to Step 14.
STEP 11. Check the fuel pressure.
Refer to On-vehicle Service -Fuel Pressure Test. Testing and Inspection
Q: Is the fuel pressure normal?
YES : Go to Step 12.
NO : Repair it. Then go to Step 14.
STEP 12. Check for entry of foreign matter (water, kerosene, etc.) into fuel.
Q: Are there any abnormalities?
YES : Replace the fuel. Then go to Step 14.
NO : Go to Step 13.
STEP 13. Replace the injector.
1. Replace the injector.
2. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 21. OBD- II Drive Cycle
3. Check the diagnostic trouble code (DTC).
Q: Is DTC P0171 set?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 14.
NO : The inspection is complete.
STEP 14. Test the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 21. OBD- II Drive Cycle
2. Check the diagnostic trouble code (DTC).
Q: Is the DTC P0171 set?
YES : Retry the troubleshooting.
NO : The inspection is complete.
