Twin Clutch-Sportronic Shift Transmission (TC-SST)

DIAGNOSTIC TROUBLE CODE CHART

CAUTION
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned ON with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.

NOTE:
^ The monitoring unit No. indicates the malfunction code applicable to each DTC No., and it can be confirmed by the freeze frame data (item No. 30 to No. 37).
^ For the DTC No. with *1 the malfunction indicator lamp lights up when the applicable DTC No. is set.
^ The definition of drive cycle indicates from (Ignition switch: "ON" after starting the engine), (Ignition switch: "LOCK" (OFF)) to (Ignition switch: "ON" again).

P0630-P0846:

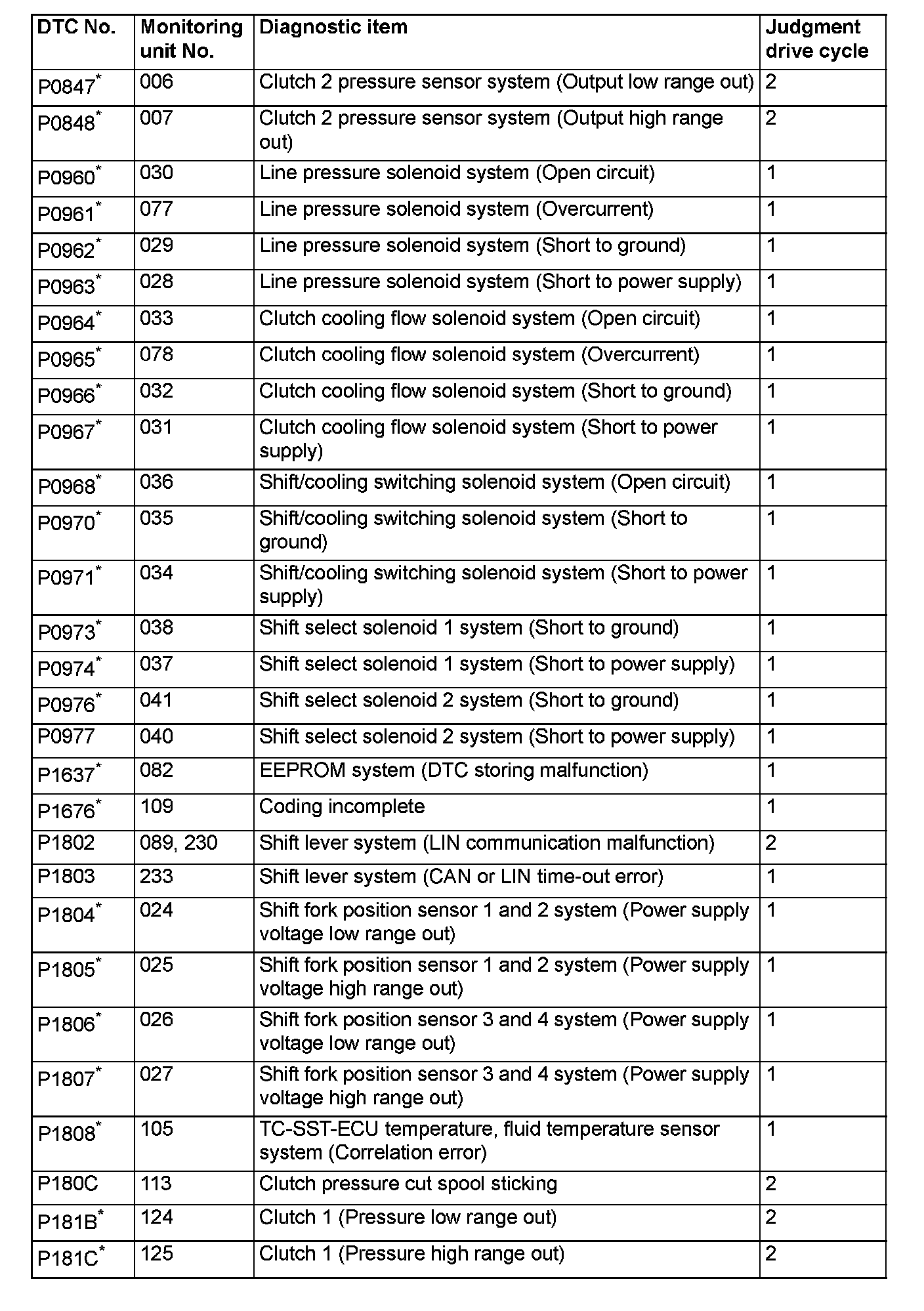

P0847-P181C:

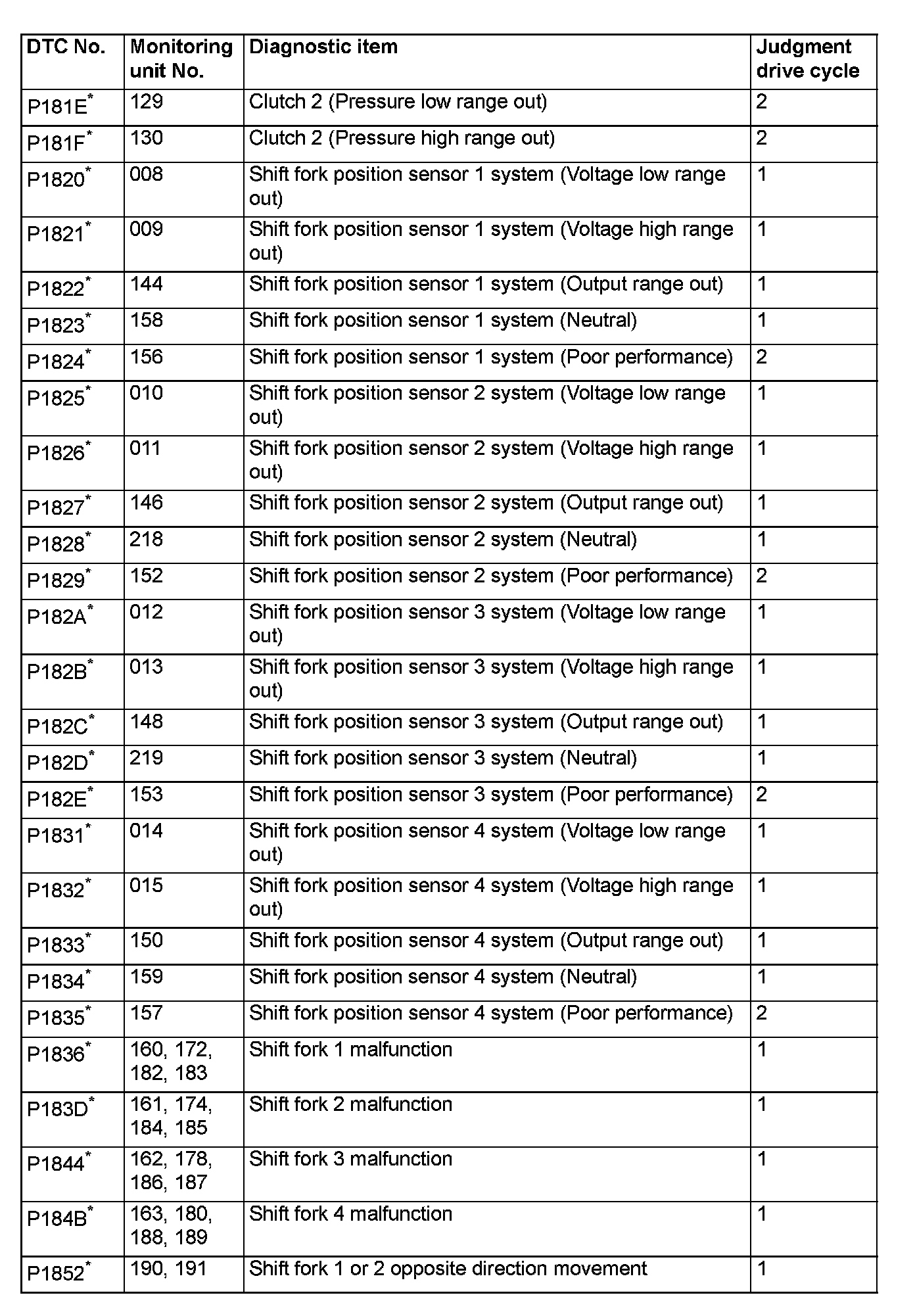

P181E-P1852:

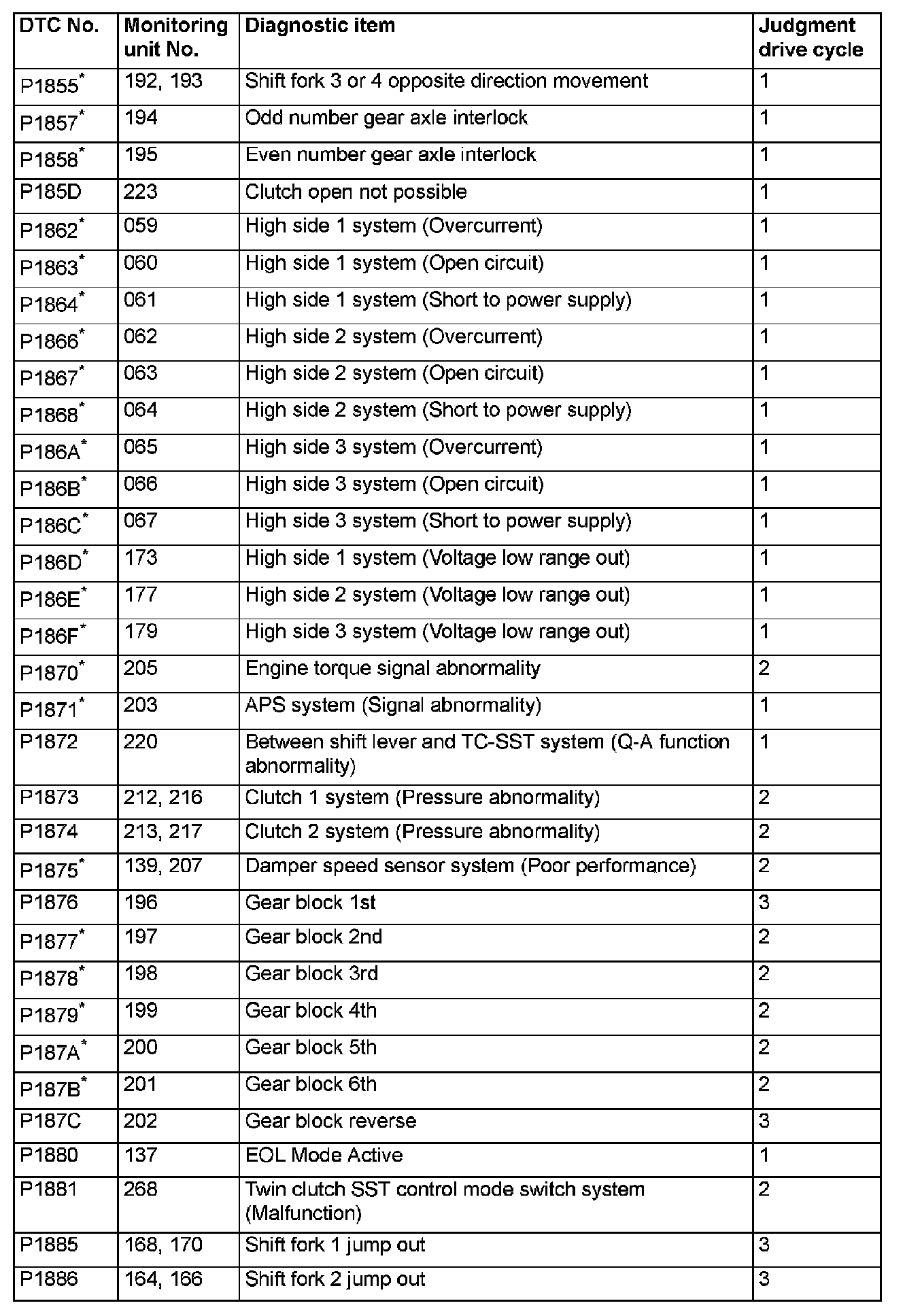

P1855-P1886:

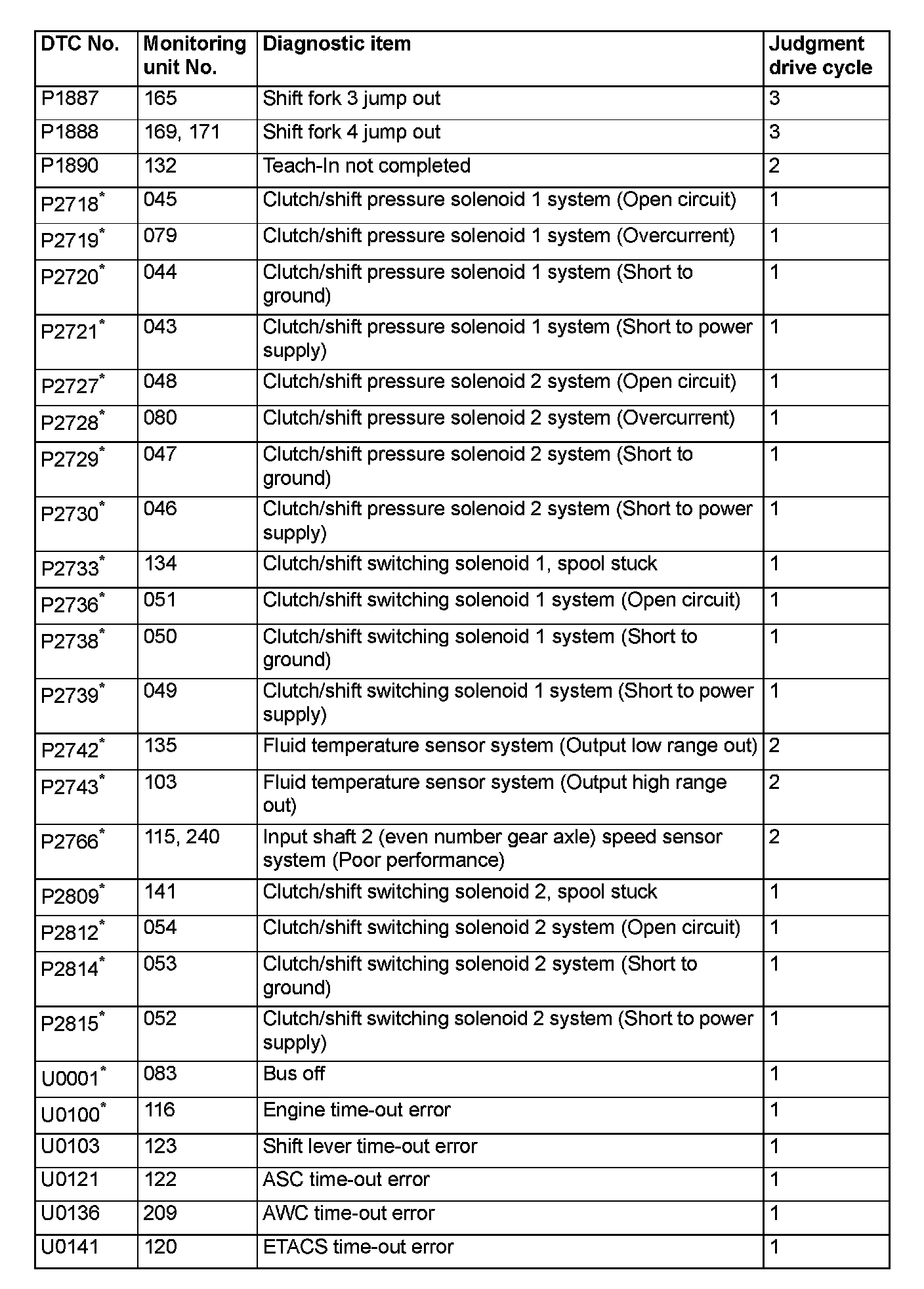

P1887-P2815 / U0001/U0141:
