Traction Control/Active Stability Control System (TCL/ASC)

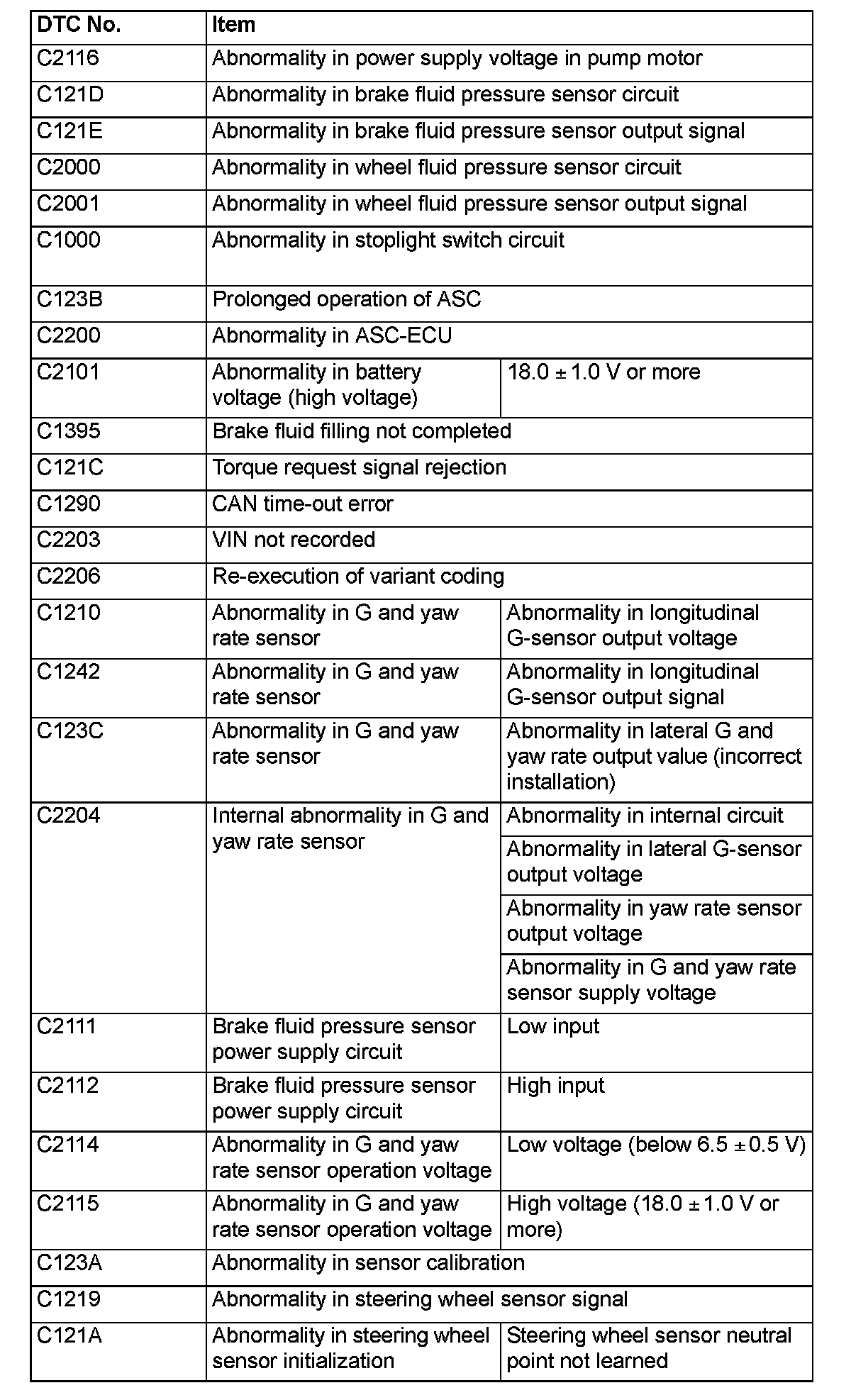

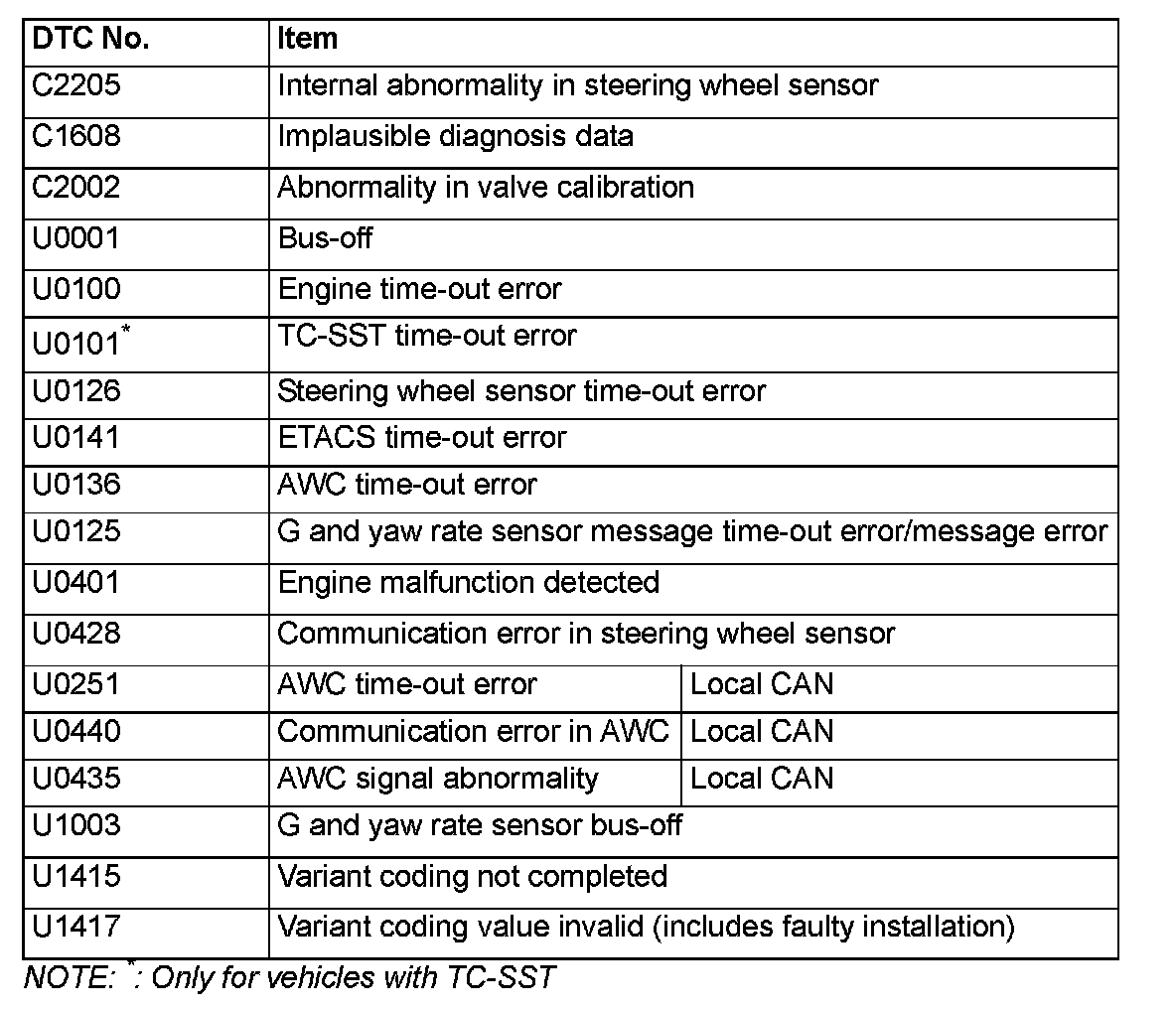

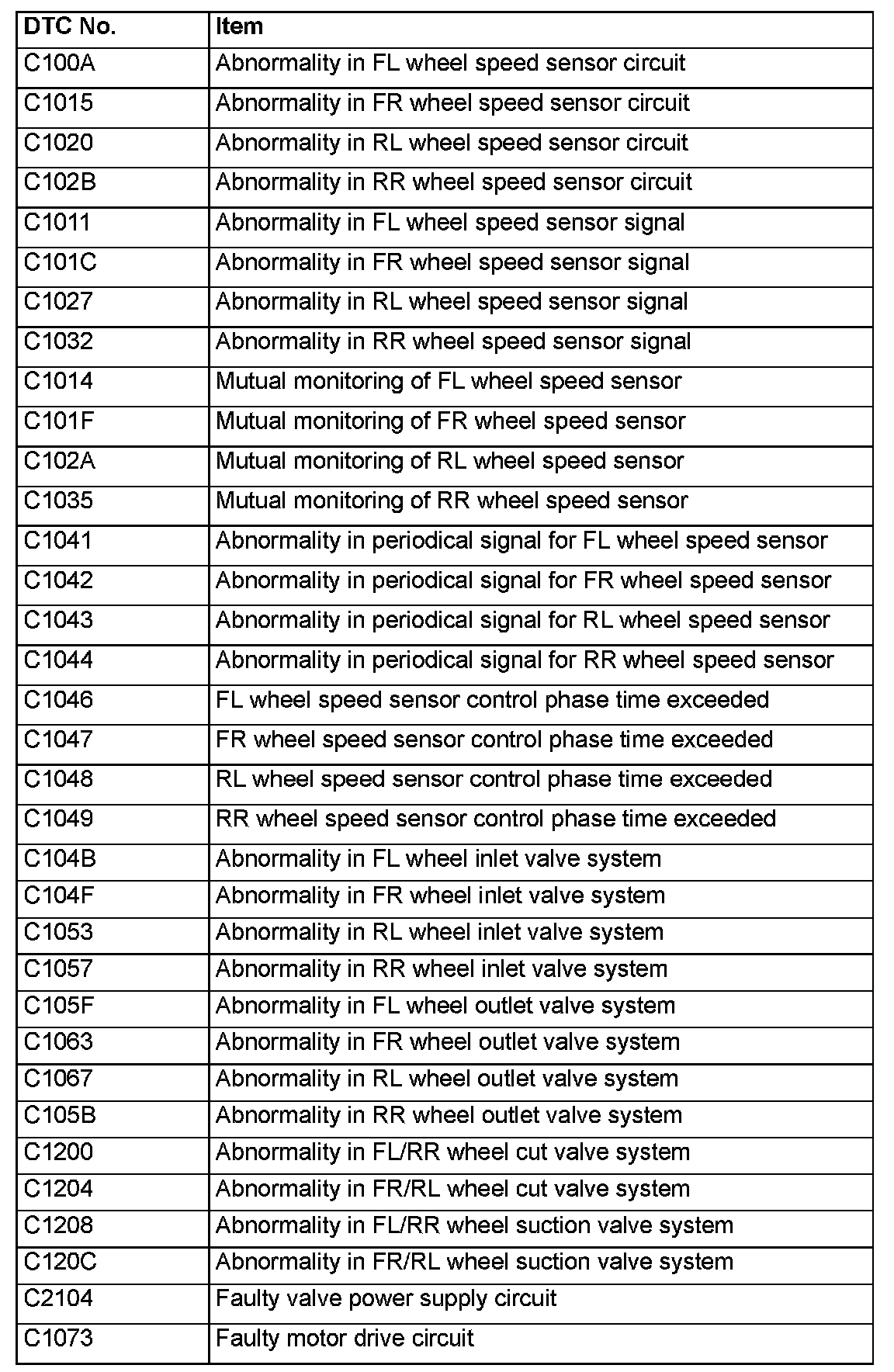

DIAGNOSTIC TROUBLE CODE CHART

CAUTION:
During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTCs. If DTC code(s) are set, erase them all.
