Super All Wheel Control (S-AWC)

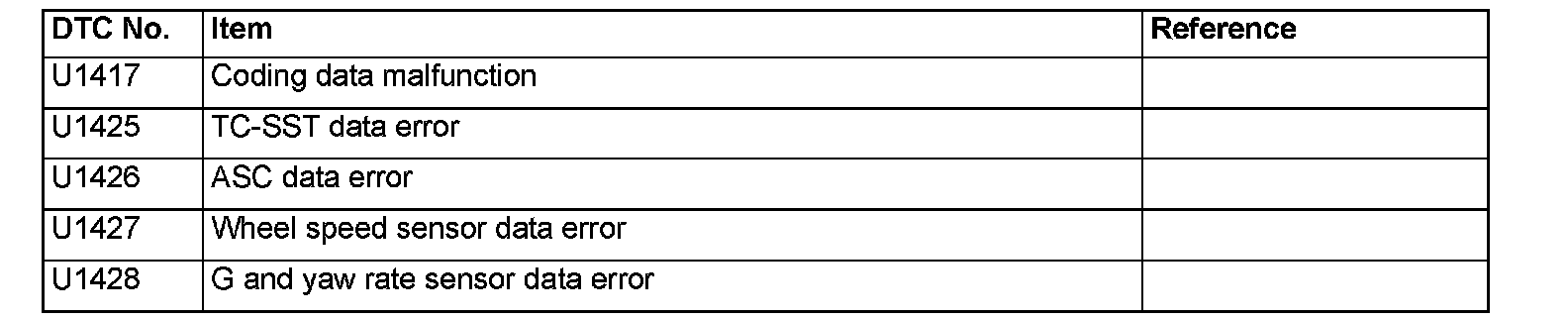

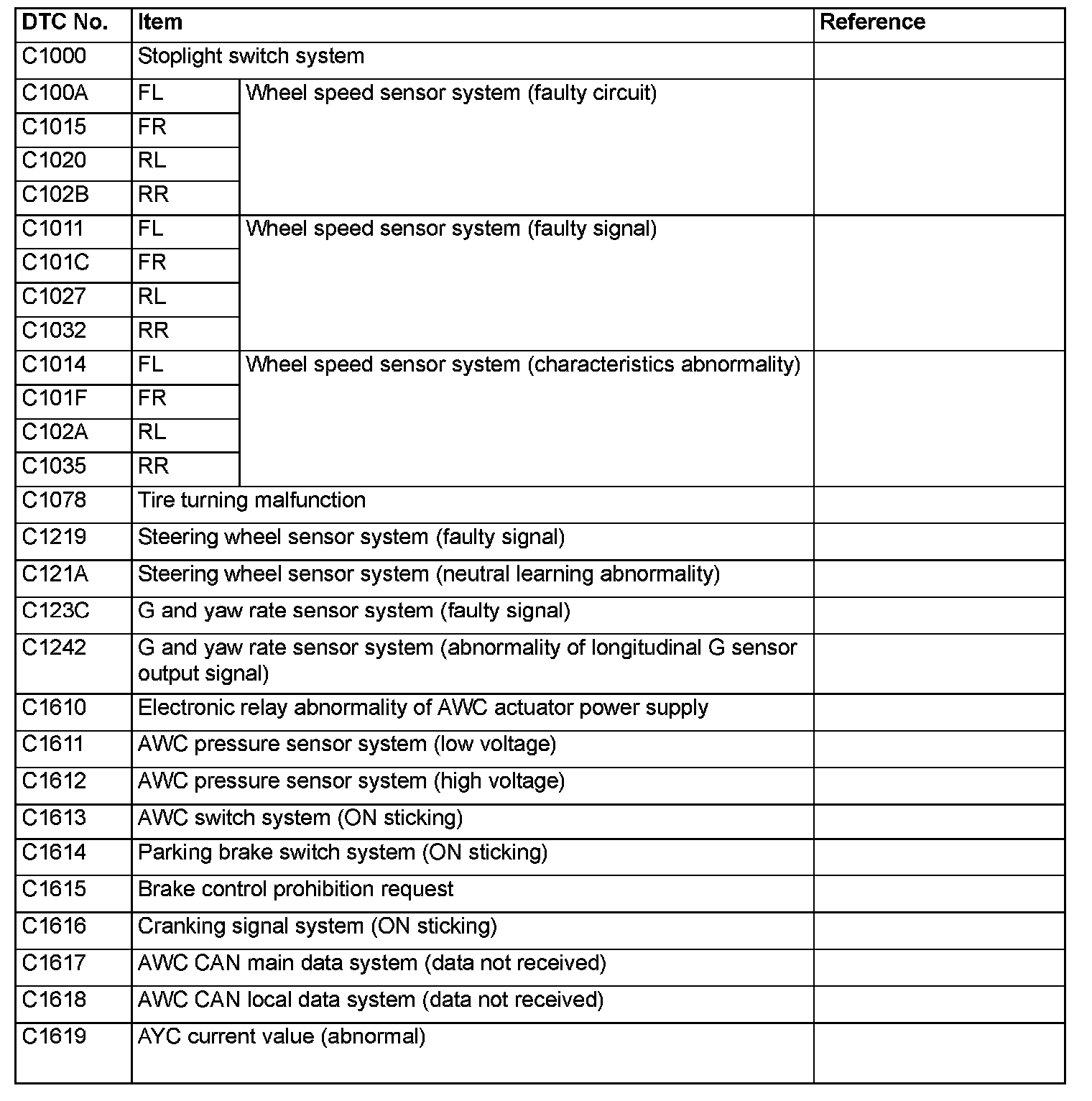

DIAGNOSTIC TROUBLE CODE CHART

CAUTION
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble cartels). If diagnostic trouble code(s) are set, erase them all.
