B2412

DTC B2412: LF Antenna Power Voltage

CAUTION:
- If DTC No.B2412 is set, diagnose the CAN bus lines.
- When replacing the ECU, always check that the communication circuit is normal.

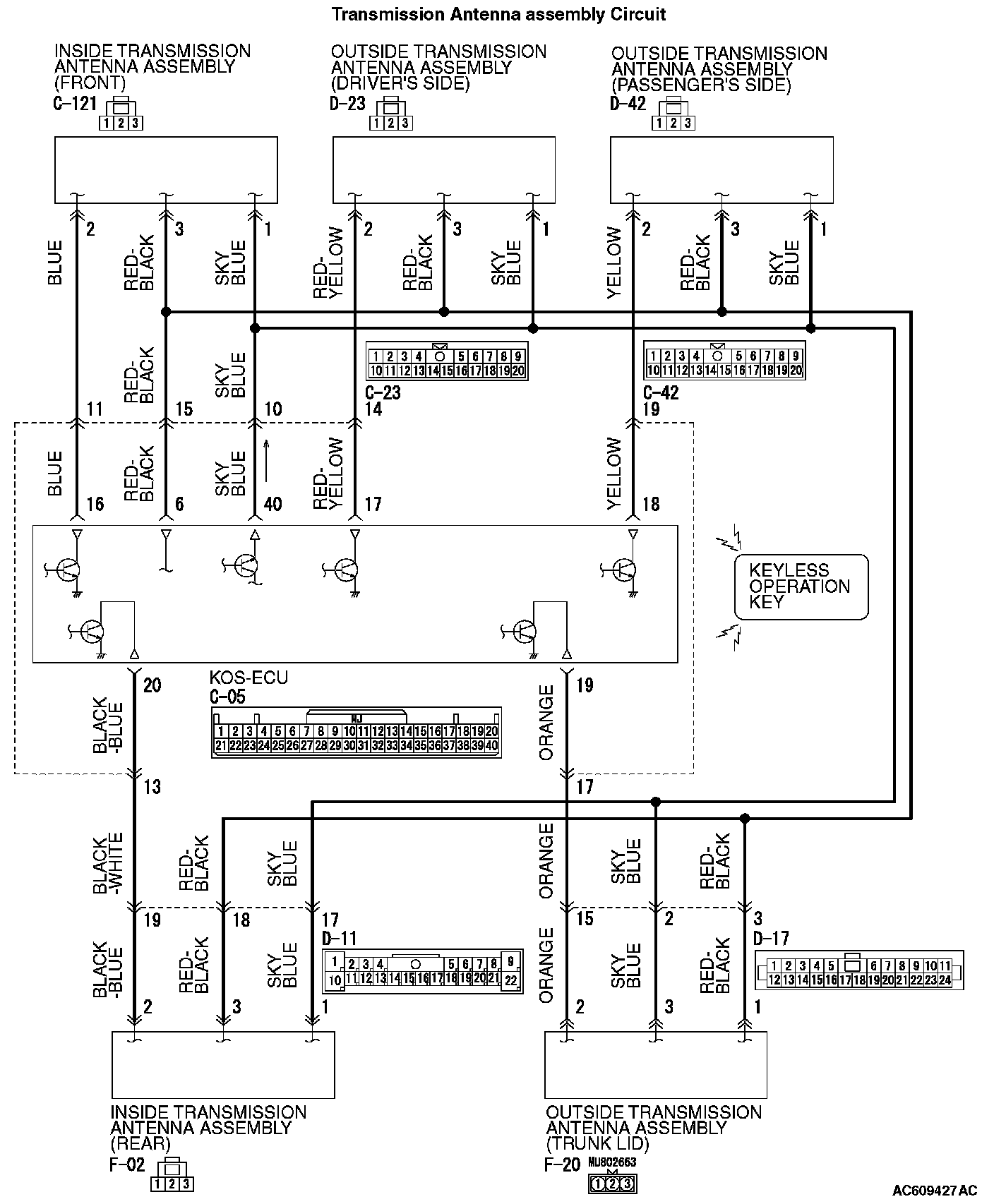

Transmission Antenna Assembly Circuit (Part 1):

Transmission Antenna Assembly Circuit (Part 2):

DTC SET CONDITION
If KOS-ECU detects an abnormality in power supply of the outside or inside antennas, KOS-ECU sets the DTC No.B2412.

TECHNICAL DESCRIPTION (COMMENT)
If an abnormality in power supply of the outside or inside transmission antenna is detected when power supply of it is turned on, KOS-ECU determines that there is a problem.

TROUBLESHOOTING HINTS
- Damaged wiring harness and connectors
- Malfunction of the KOS-ECU

DIAGNOSIS

Required Special Tools:
- MB992006: Extra fine probe
- MB991223: Harness set
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code.







CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect scan tool (M.U.T.-III)." How To Connect The Scan Tool (M.U.T.-III)
2. Turn the ignition switch to the "ON" position.
3. Check whether the KOS-ECU related DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the KOS-ECU. Diagnostic Trouble Code Descriptions

NO : Go to Step 2.

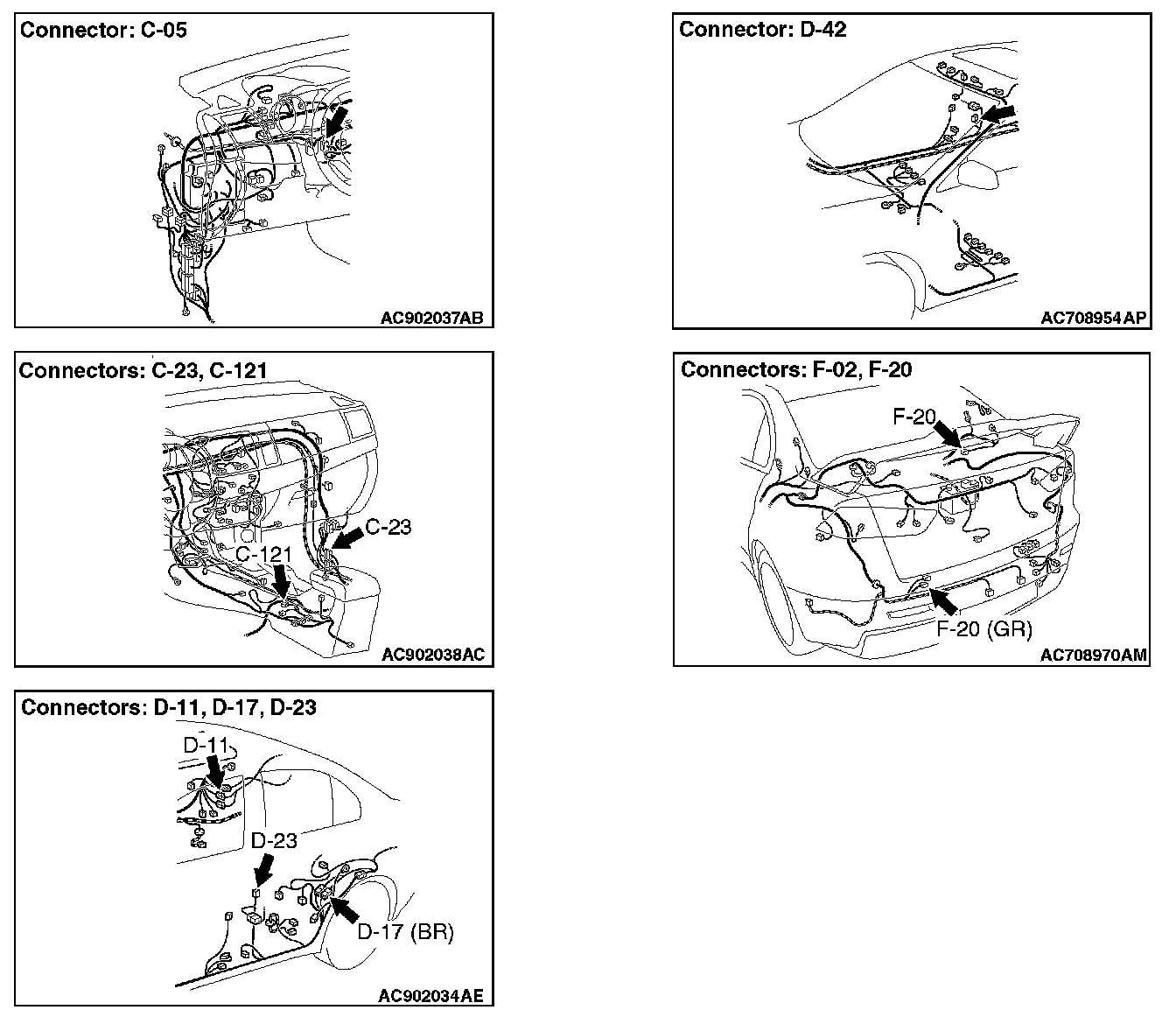

STEP 2. Check KOS-ECU connector C-05 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is KOS-ECU connector C-05 in good condition?

YES : Go to Step 3.

NO : Repair or replace the damaged component(s). Check that the inside and outside antenna works normally.

STEP 3. Check the wiring harness between KOS-ECU connector C-05 and each inside and outside antenna.

- Wiring harness between KOS-ECU connector C-05 (terminal No.40) and outside transmission antenna assembly (driver's side) D-23 connector (terminal No.1)
- Wiring harness between KOS-ECU connector C-05 (terminal No.40) and outside transmission antenna assembly (passenger's side) connector D-42 (terminal No.1)
- Wiring harness between KOS-ECU connector C-05 (terminal No.40) and inside transmission antenna (front) connector C-121 (terminal No.1)
- Wiring harness between KOS-ECU connector C-05 (terminal No.40) and inside transmission antenna (rear) connector F-02 (terminal No.1)
- Wiring harness between KOS-ECU connector C-05 (terminal No.40) and outside transmission antenna assembly (trunk lid) connector F-20 (terminal No.3)

NOTE: Also check intermediate connector C-23, D-11 [inside transmission antenna assembly (rear)], D-17 [outside transmission antenna assembly (trunk lid)] for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-23, D-11 [inside transmission antenna assembly (rear)], D-17 [outside transmission antenna assembly (trunk lid)] is damaged, repair or replace the damaged component(s).

Q: Is the check result normal?

YES : Go to Step 4.

NO : Repair the wiring harness.

STEP 4. Check whether the diagnostic trouble code is reset.

1. Erase the DTC.
2. Turn the ignition switch from the LOCK (OFF) position to the ON position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace KOS-ECU and register the ID codes.

NO : The diagnosis is complete.
