Keyless Operation System (KOS)

DTC B1761: VIN Code Not Programmed

CAUTION:
- When the DTC No.B1761 is set, be sure to diagnose the CAN bus line.
- When replacing the ECU, always check that the communication circuit is normal.

DTC SET CONDITION
KOS-ECU sets DTC B1761 when no VIN is recorded in it.

TECHNICAL DESCRIPTION (COMMENT)
KOS-ECU determines that the abnormality is present when no VIN is recorded in it.

TROUBLESHOOTING HINTS
- VIN not programmed
- Malfunction of the KOS-ECU

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.







CAUTION: To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

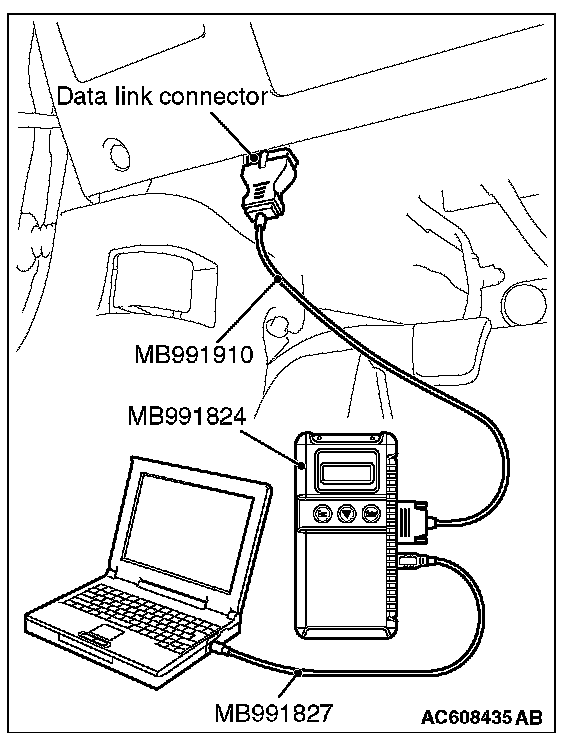

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Register the VIN and recheck the diagnostic trouble code.

Register VIN in KOS-ECU and recheck if the DTC is set.

1. Turn the ignition switch from the "LOCK" (OFF) position to the "ON" position.
2. Check if DTC is set.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace KOS-ECU and register the ID codes.

NO : The procedure is complete.
