Removal and Replacement

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION [2.4L ENGINE]

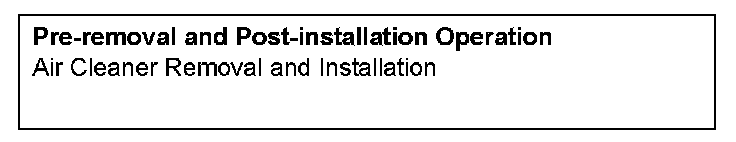

Pre-Removal and Post-Installation Operation:

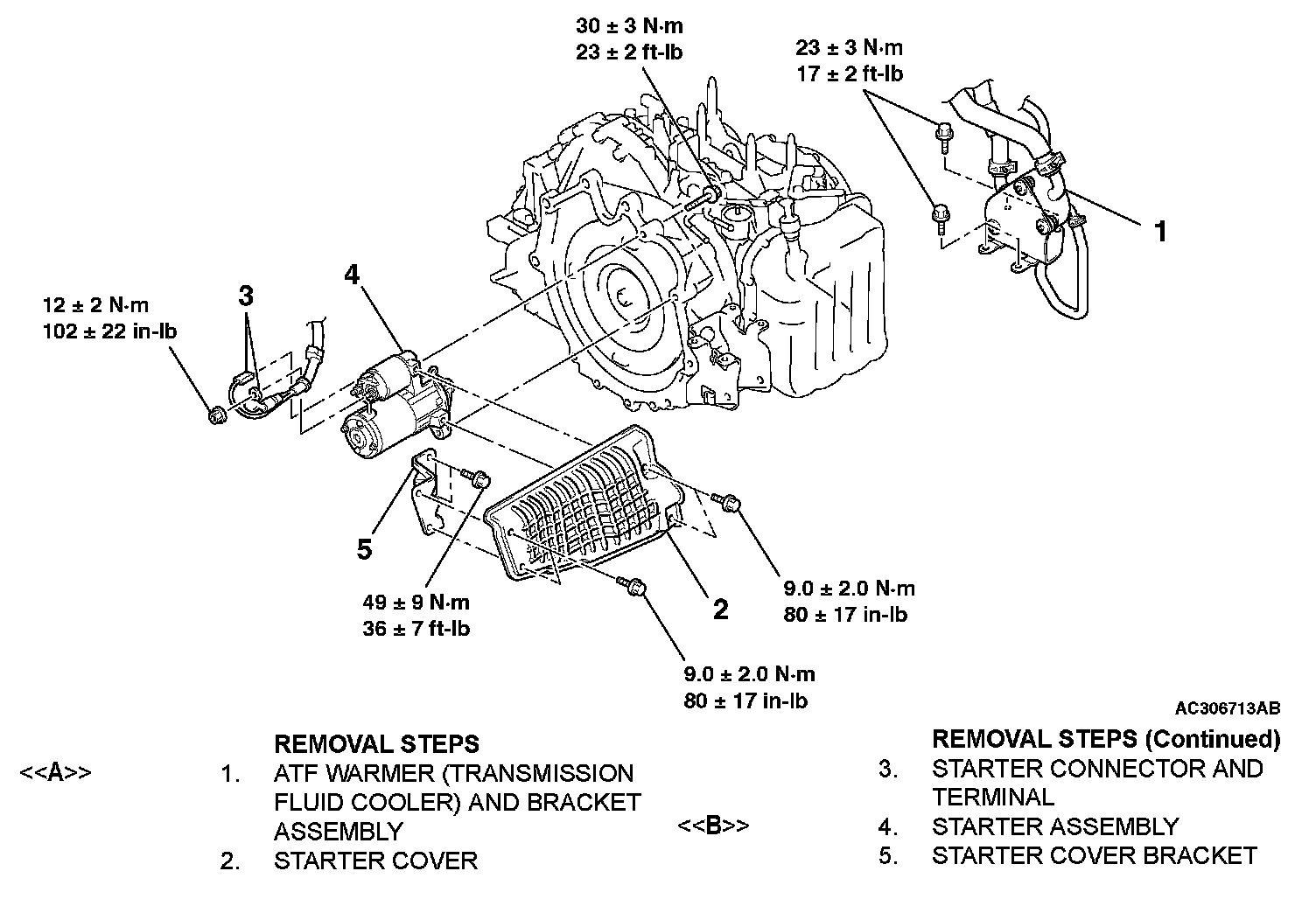

Removal Steps 1-5:

REMOVAL SERVICE POINTS

[[A]] ATF WARMER (TRANSMISSION FLUID COOLER) AND BRACKET ASSEMBLY REMOVAL

With the hose installed, remove the ATF warmer (transmission fluid cooler) and bracket assembly from the transmission case front roll stopper bracket.

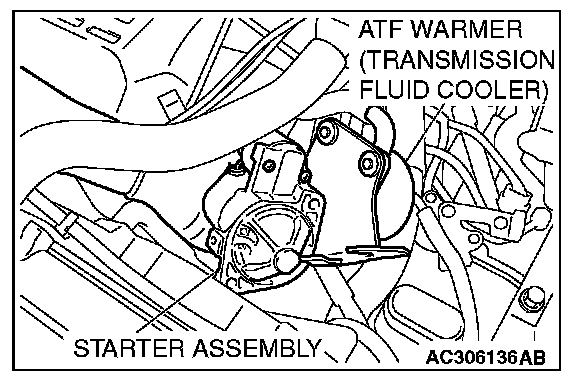

[[B]] STARTER ASSEMBLY REMOVAL







Remove the starter assembly from the side of ATF warmer (transmission fluid cooler).
