Removal and Replacement

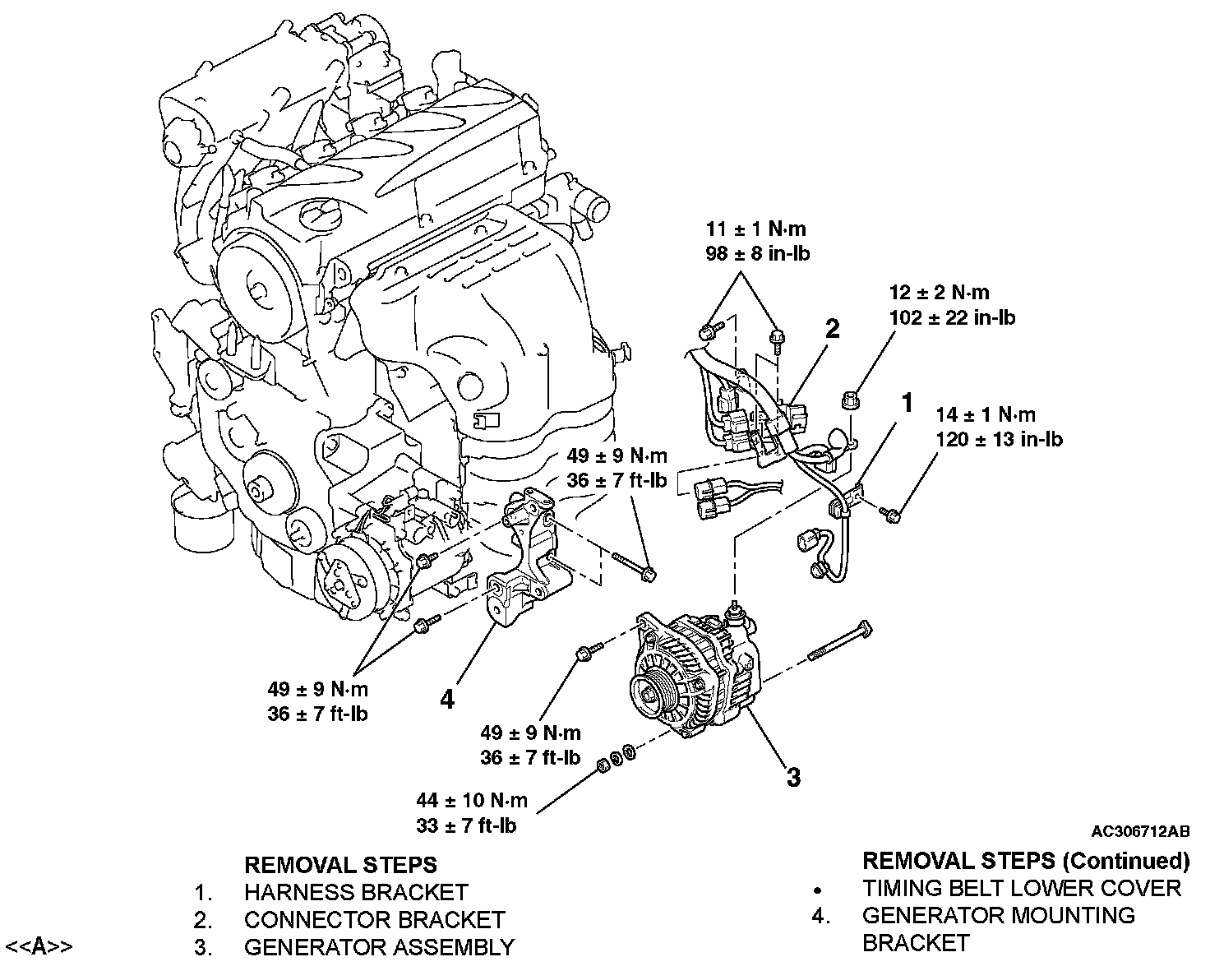

GENERATOR ASSEMBLYREMOVAL AND INSTALLATION [2.4L ENGINE]

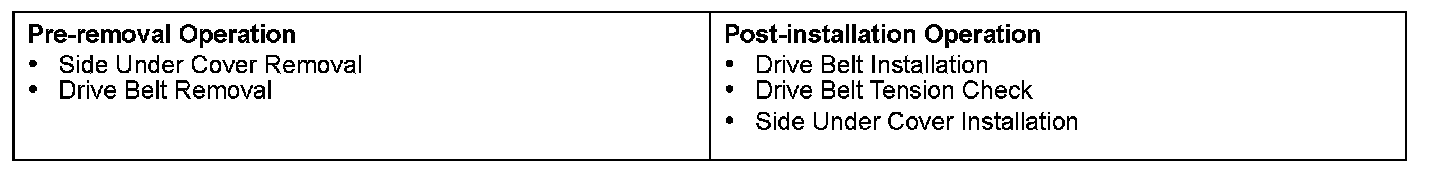

Pre-Removal and Post-Installation Operation:
Removal Steps 1-4:
REMOVAL SERVICE POINT
[[A]] GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly from above the vehicle.
