Door Lock Prevention Function

DOOR LOCK PREVENTION FUNCTION

If the key is left in the ignition switch while the driver's. door opened or the assistant door opened, all door are automatically unlock to prevent locking the ignition key in the vehicle after door is locked.

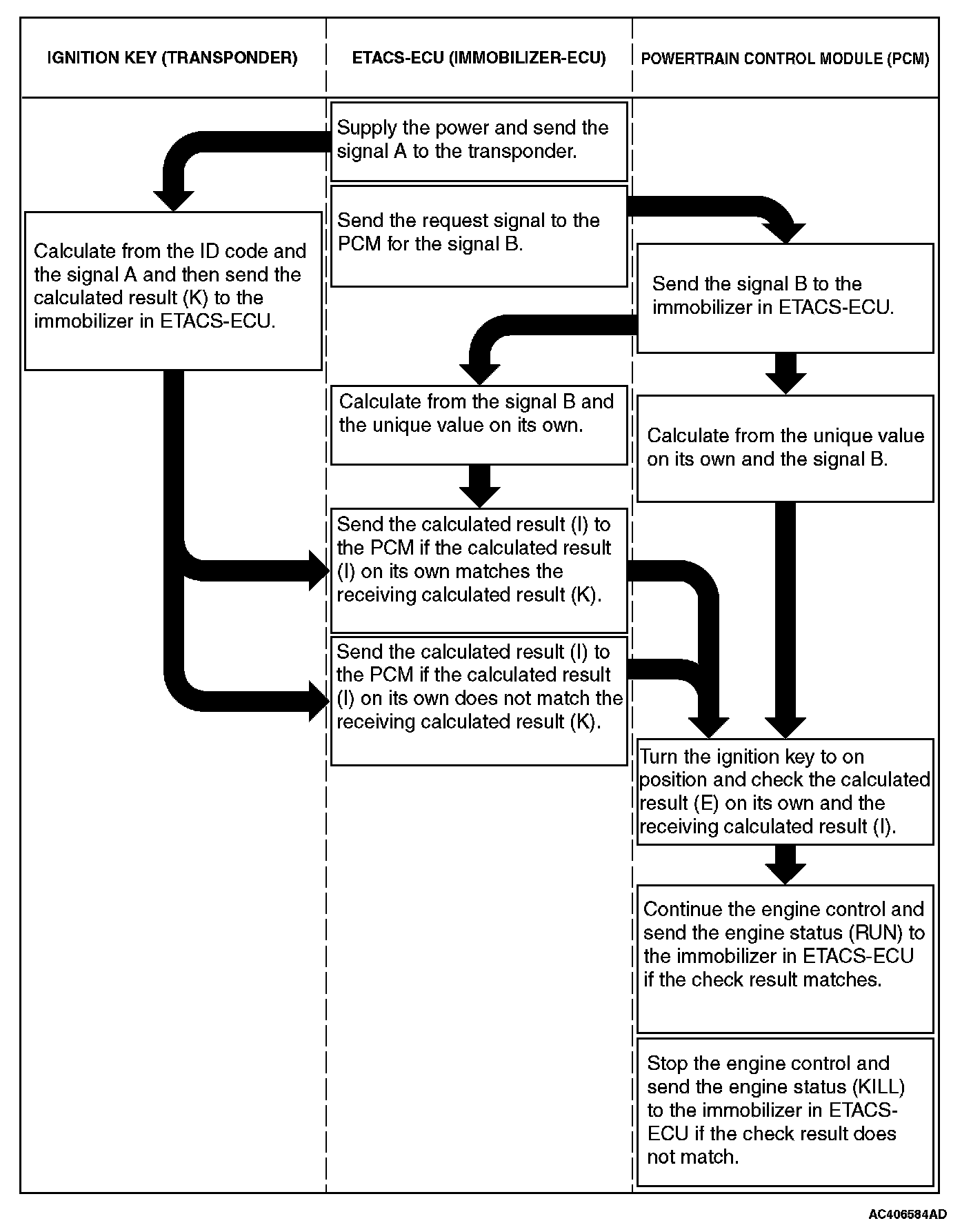

OPERATION

With the ignition switch "ON" position, the immobilizer system operates as follows.
