Superheat Switch: Testing and Inspection

INSPECTION

COOLING TEMPERATURE SWITCH

CAUTION: Do not heat more than necessary.

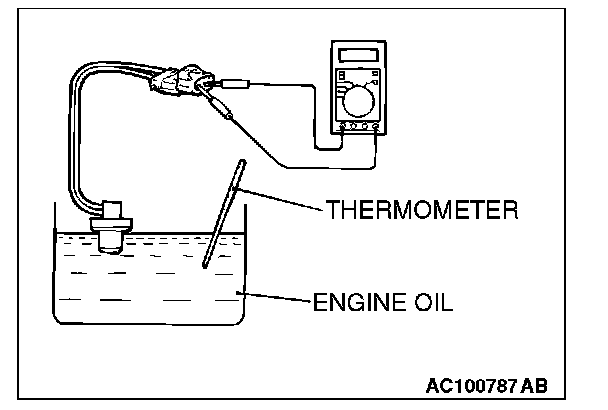

1. Dip the metal part of the cooling temperature switch into engine oil and increase the oil temperature using a gas burner or similar.

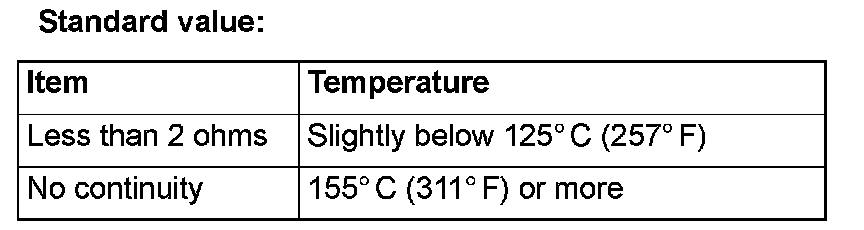

2. When the oil temperature reaches the standard value, check that voltage is supplied between the terminals.

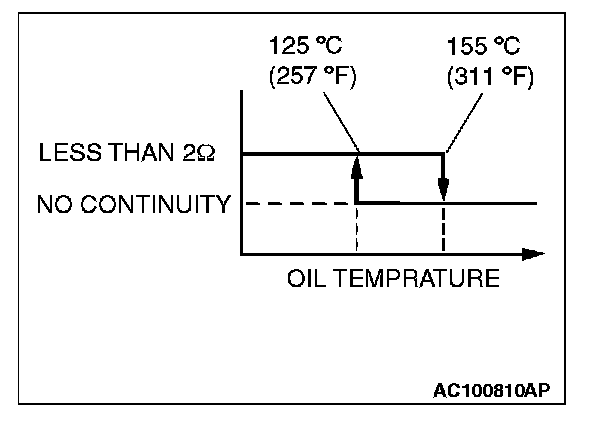

NOTE: When the oil temperature is 155 �C (311 �F) or more and there is no continuity, the resistance will not be 2Qor lower until the oil temperature reduces to 125 �C (257 �F) or less.
