Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

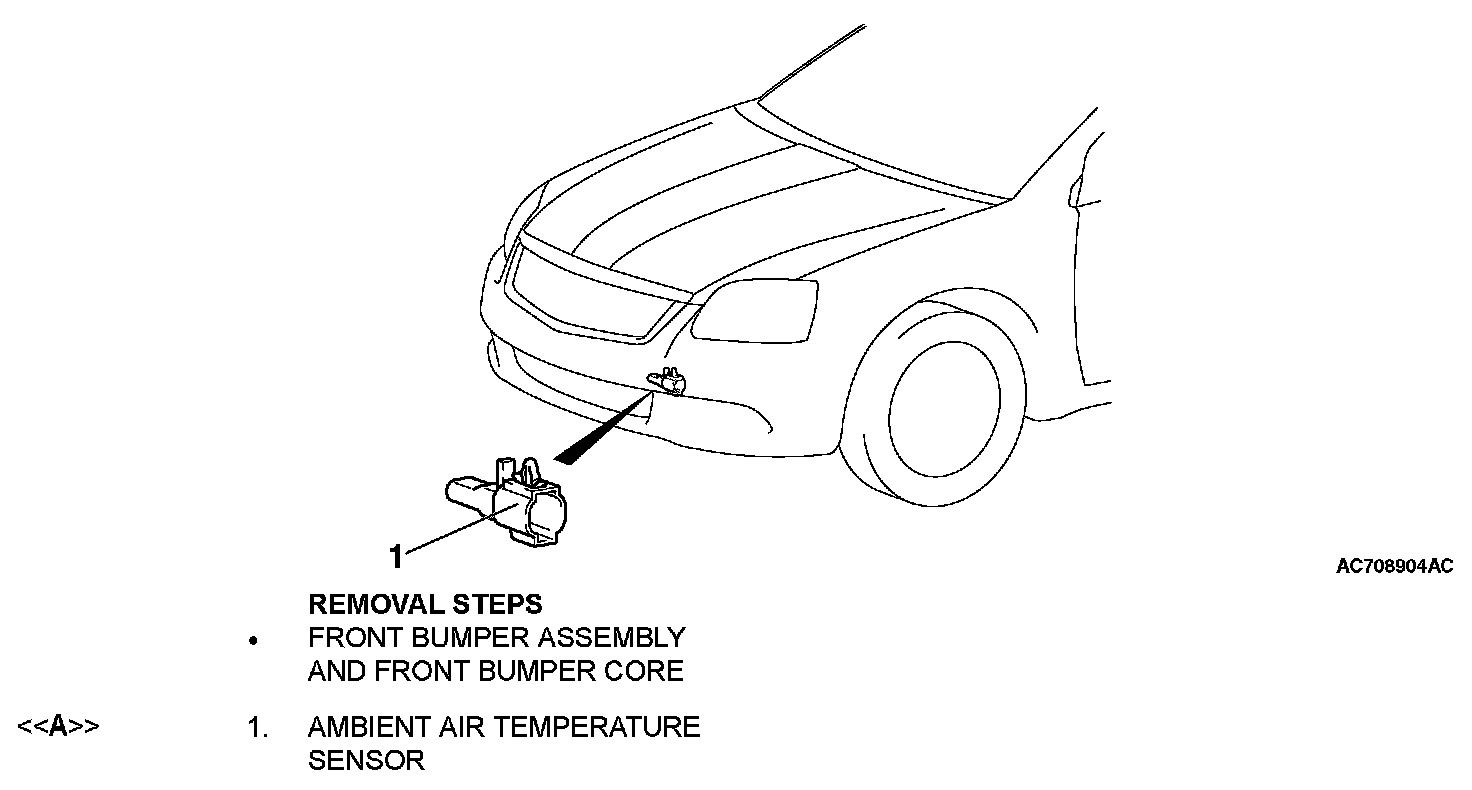

Removal Step 1:

REMOVAL SERVICE POINT

[[A]] AMBIENT AIR TEMPERATURE SENSOR REMOVAL

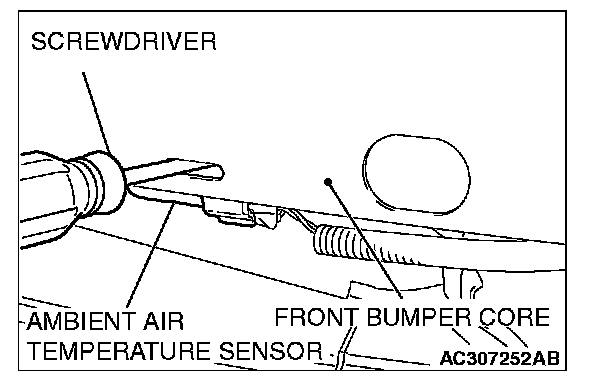

Insert a screwdriver into the mounting hole of the front bumper core to release the clip, and remove the ambient air temperature sensor.
