Locks - Revised Door Lock Rocker Switch Button Replacement
No: TSB-12-42A-004DATE: December, 2012
MODEL: See below
SUBJECT:
DOOR LOCK ROCKER SWITCH BUTTON REPLACEMENT - SERVICE MANUAL REVISION
[TSB Revision: TSB- 12-42A-004]
PURPOSE

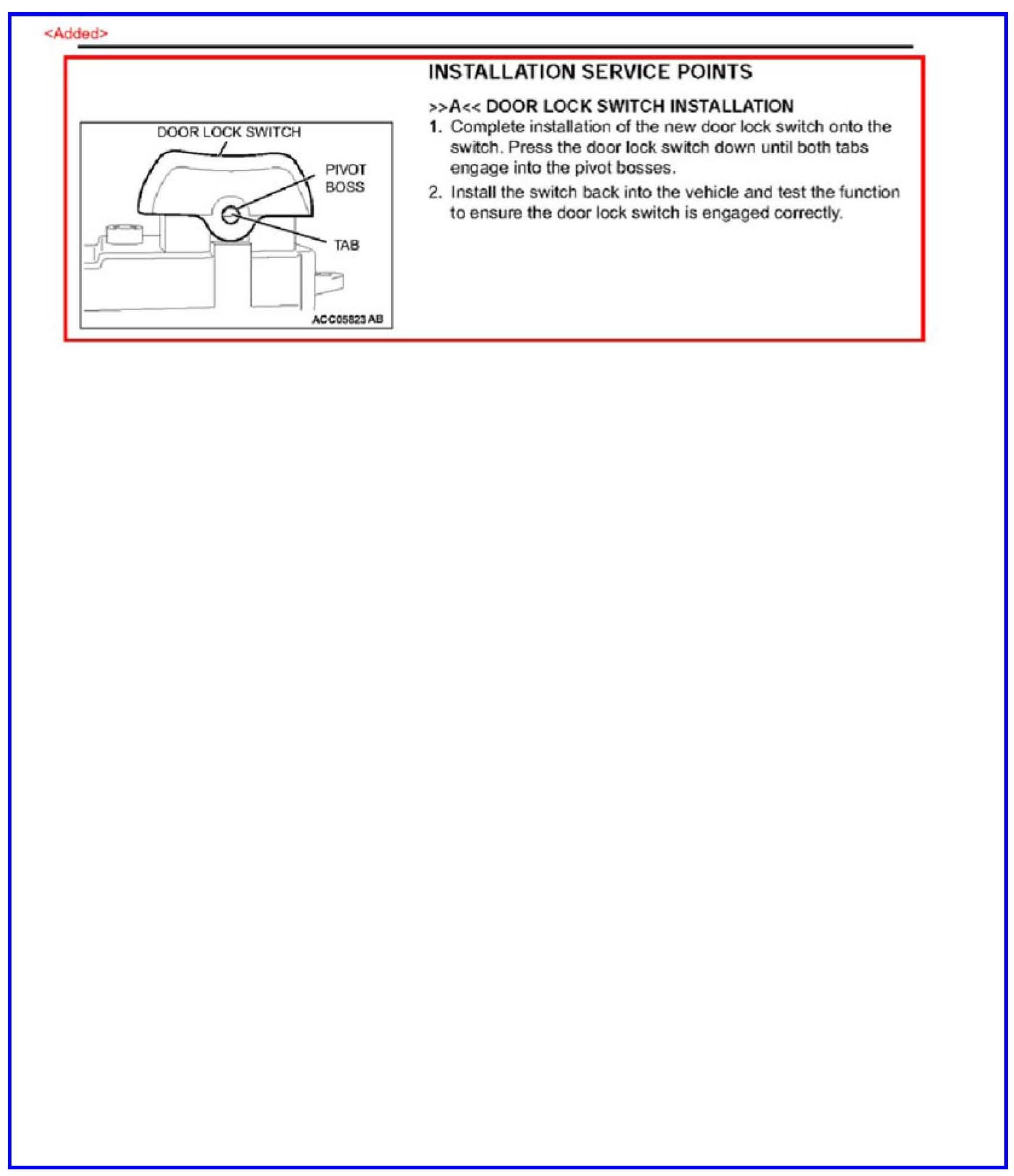

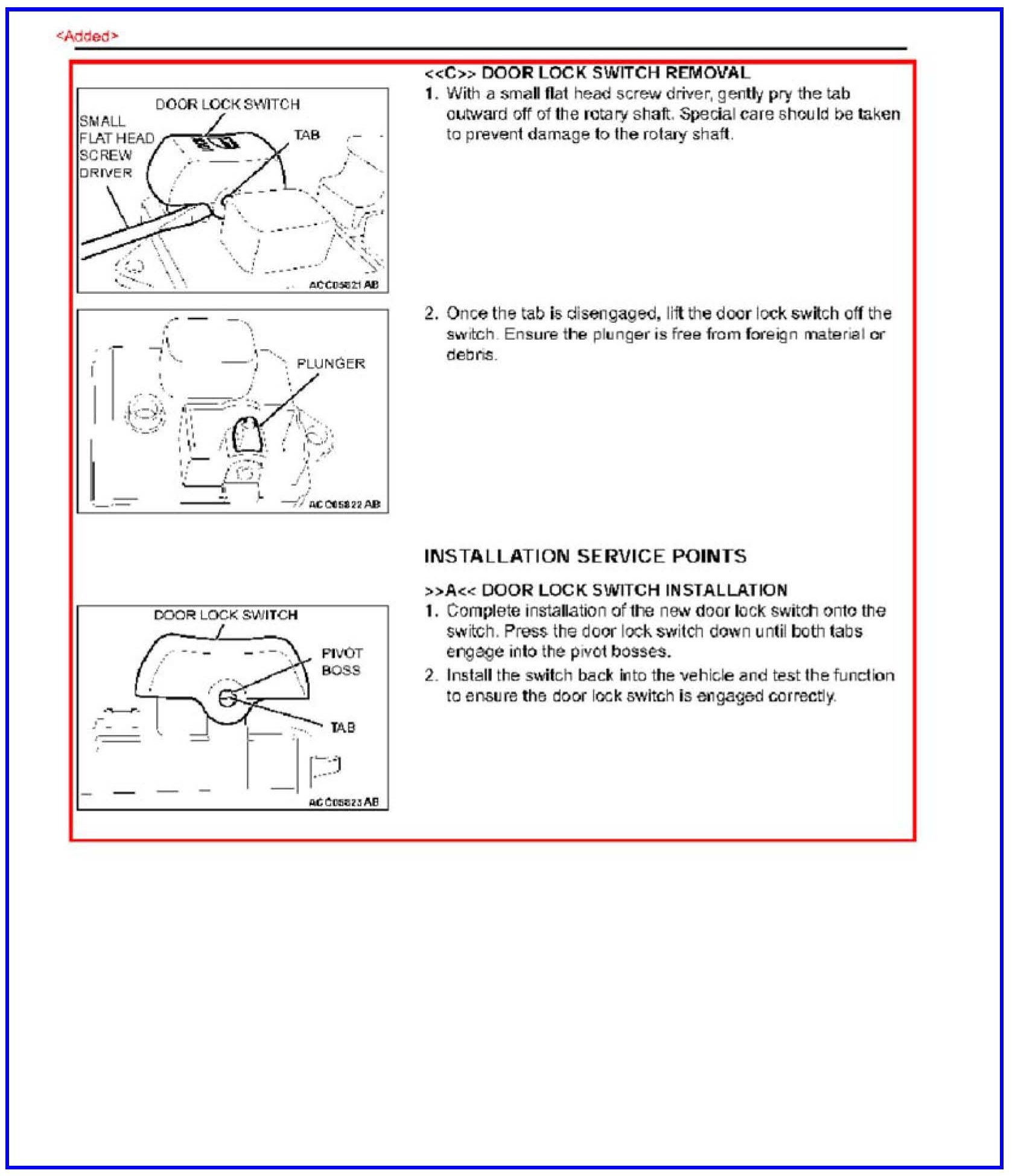

The door lock switch rocker button is now available separately. This TSB adds replacement instructions to the affected service manuals.
AFFECTED VEHICLES
2007-2011 Endeavor
2007-2012 Galant
AFFECTED SERVICE MANUALS
2007 - 2012 Galant Service Manual:
Group 42A > Body > On-vehicle Service > Door Glass and Regulator > Removal and Installation
2007 - 2011 Endeavor Service Manual:
Group 42A > Body > On-vehicle Service > Door Glass and Regulator > Removal and Installation
Make the following changes to the 2007 - 2012 Galant Service Manual:

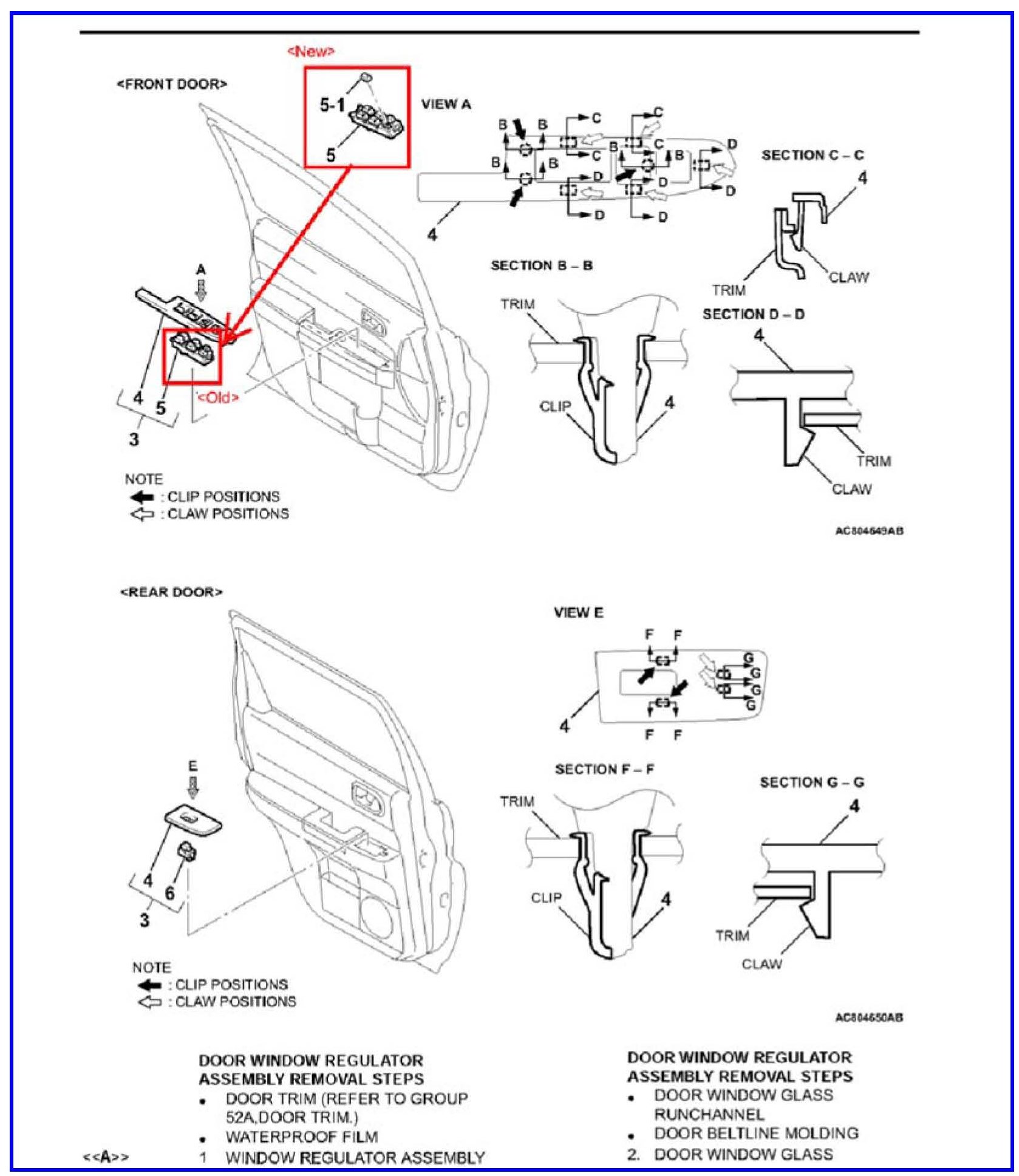

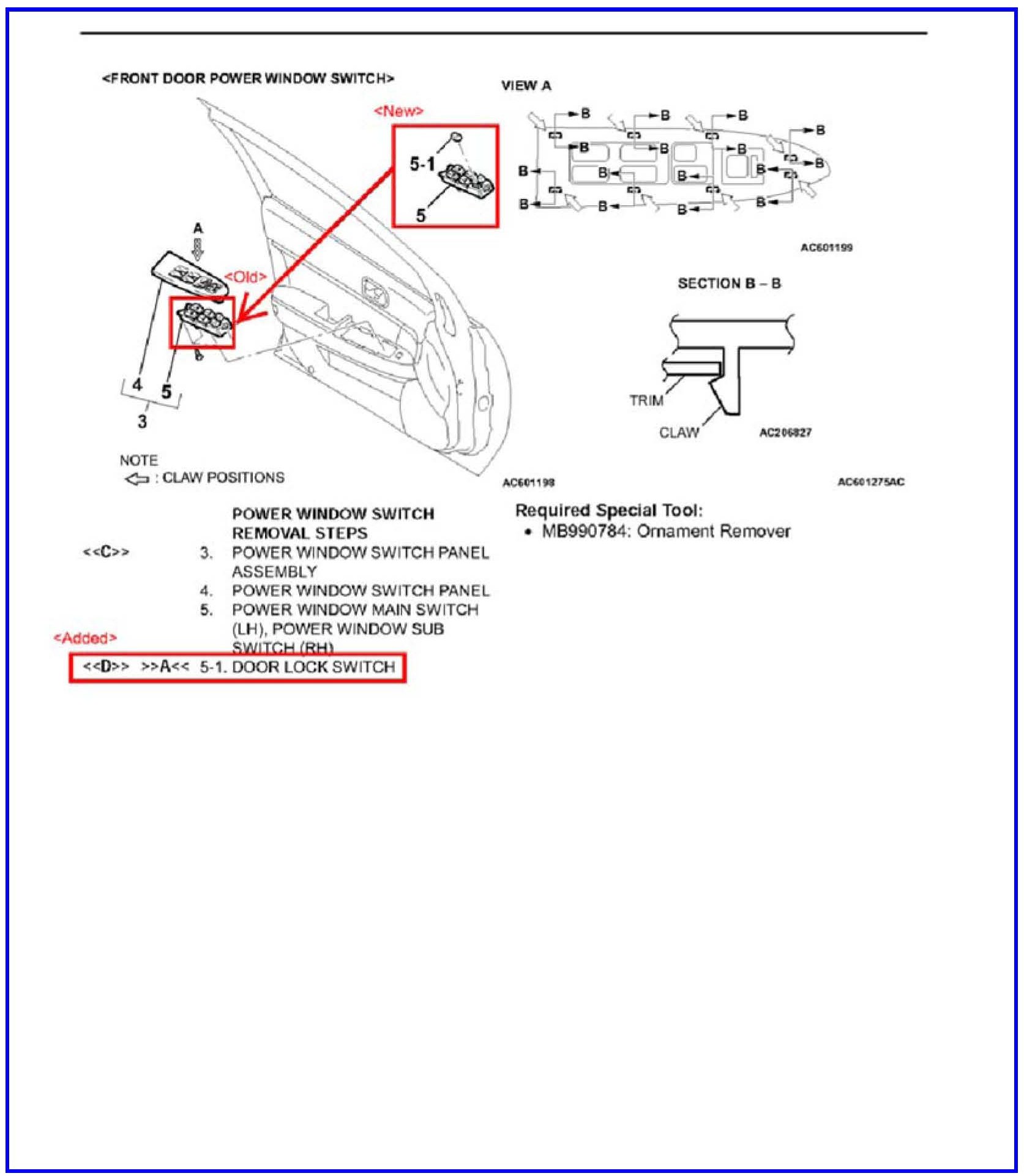

Group 42A > Body > Door > Door Glass and Regulator > Removal and Installation
Make the following changes to the 2007 - 2011 Endeavor Service Manual:

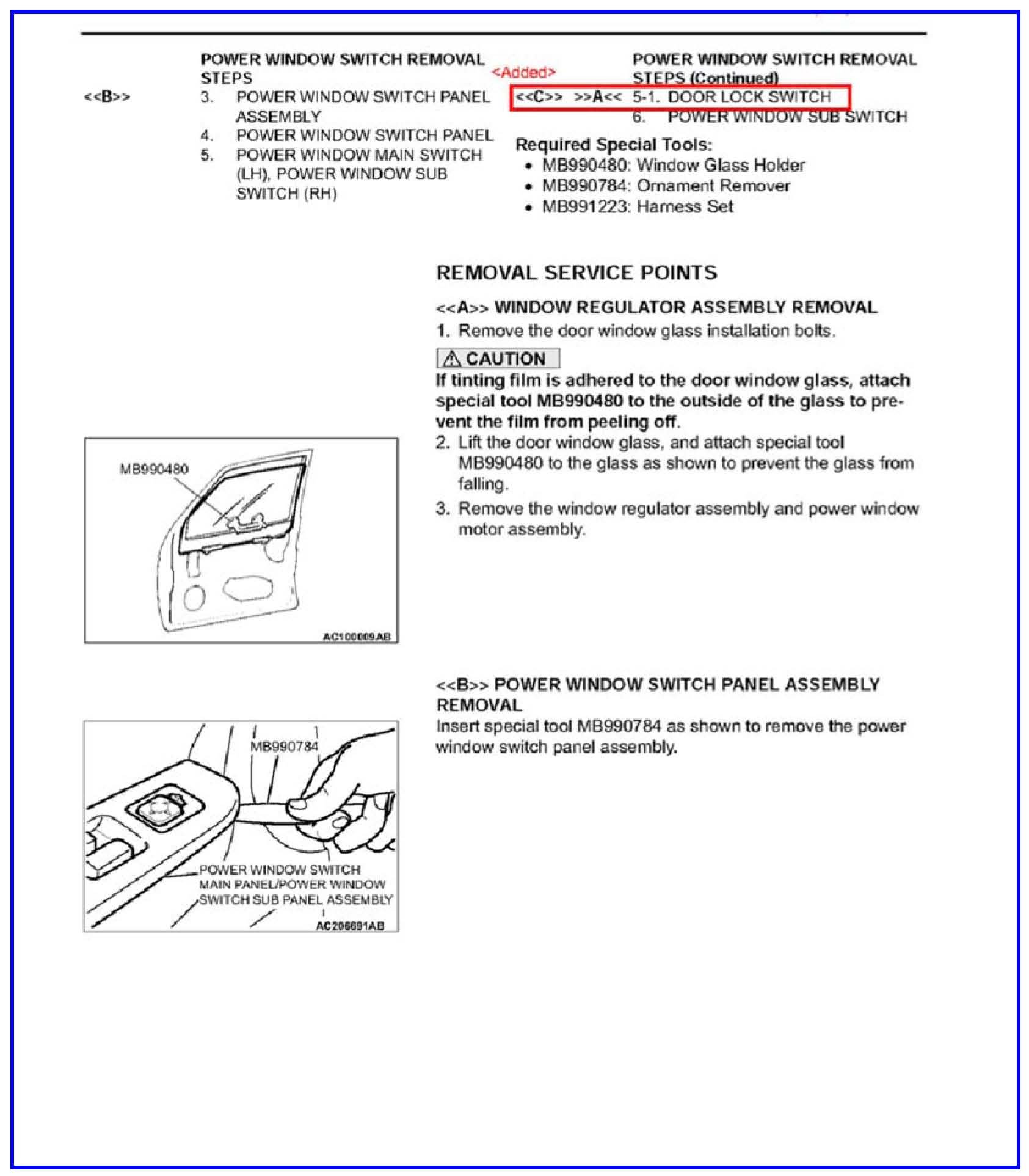

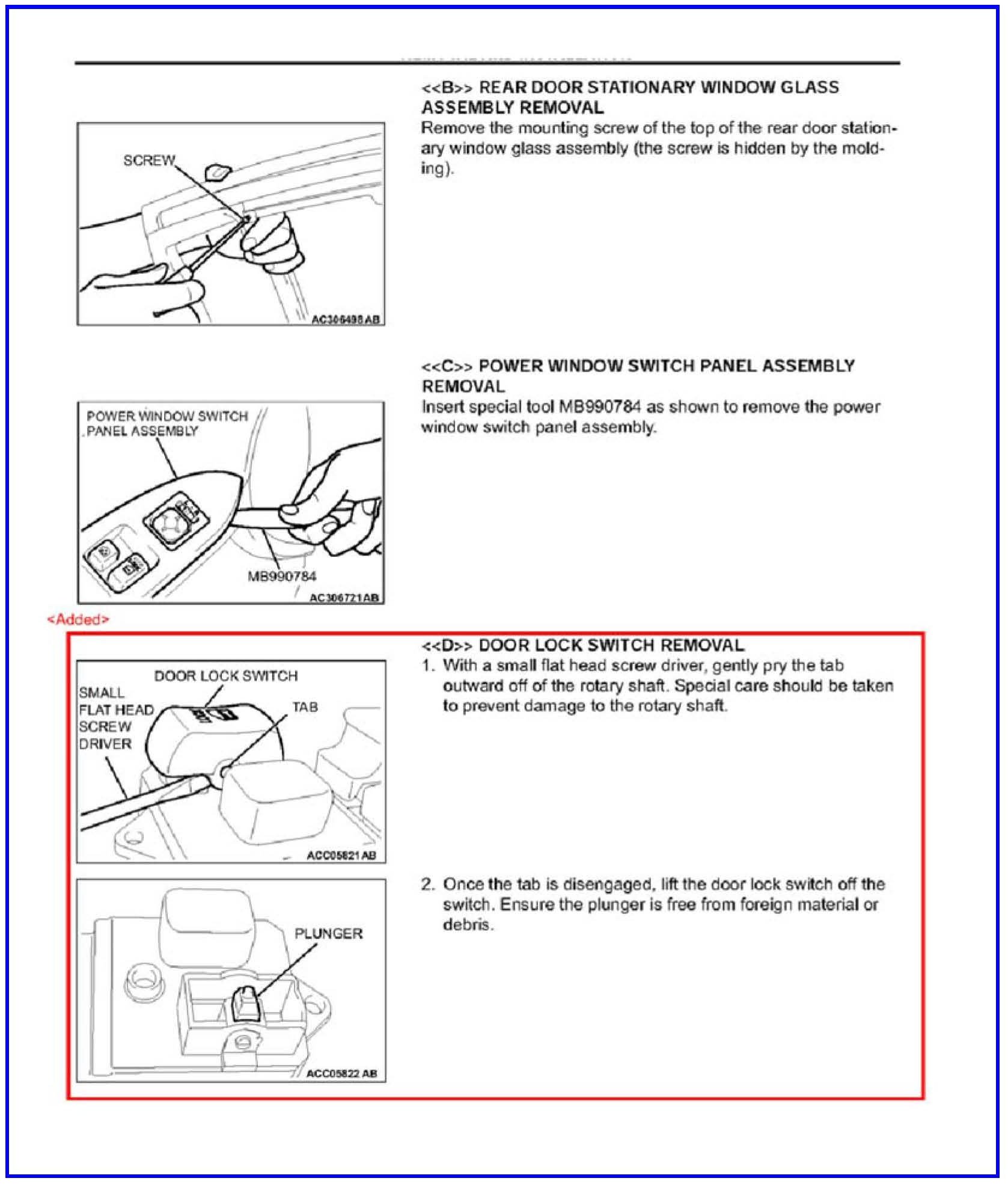

Group 42A > Body > Door > Door Glass and Regulator > Removal and Installation
