Road Test
Road Test
ROAD TEST
Check using the following procedures.

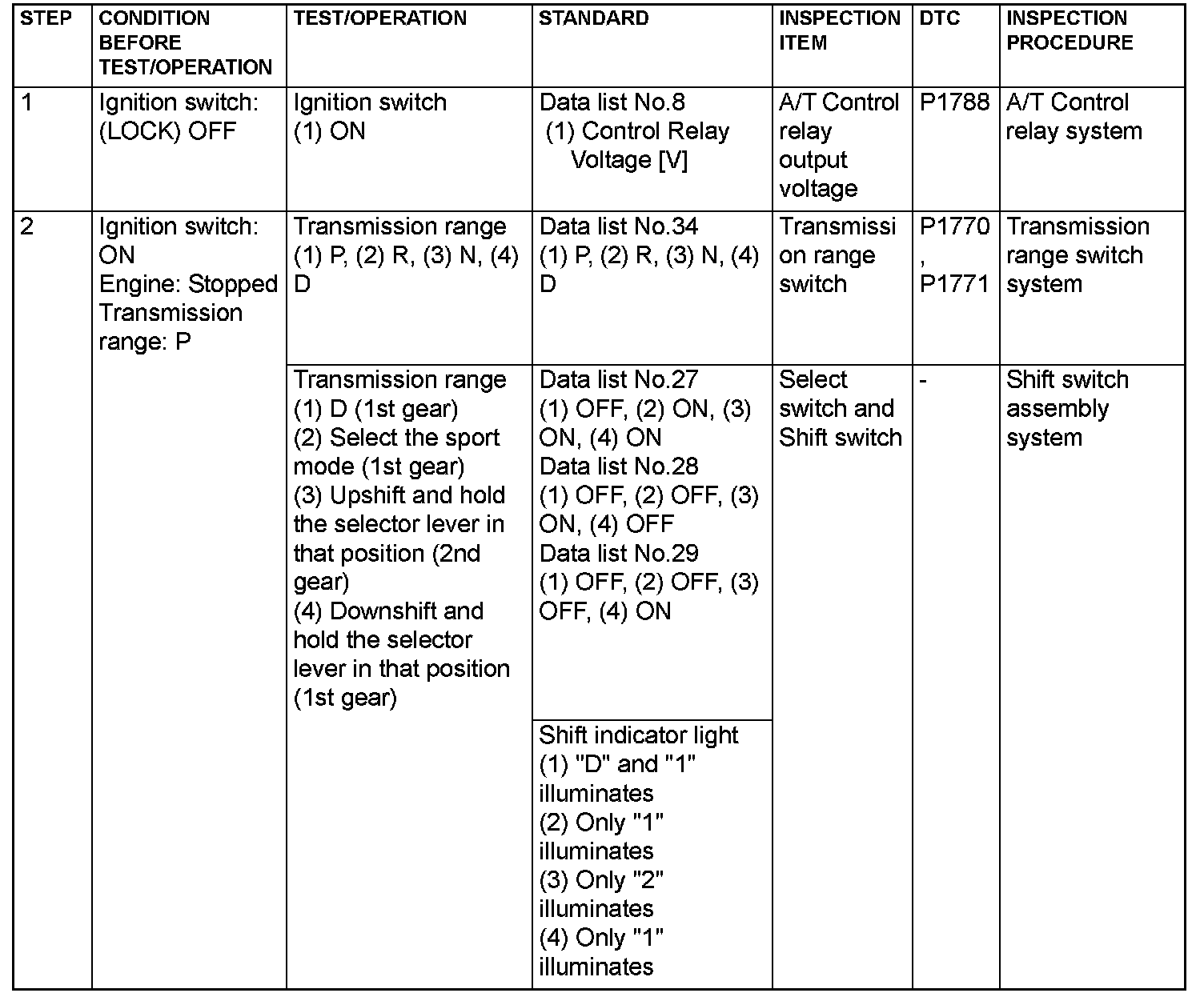

Step 1-2:

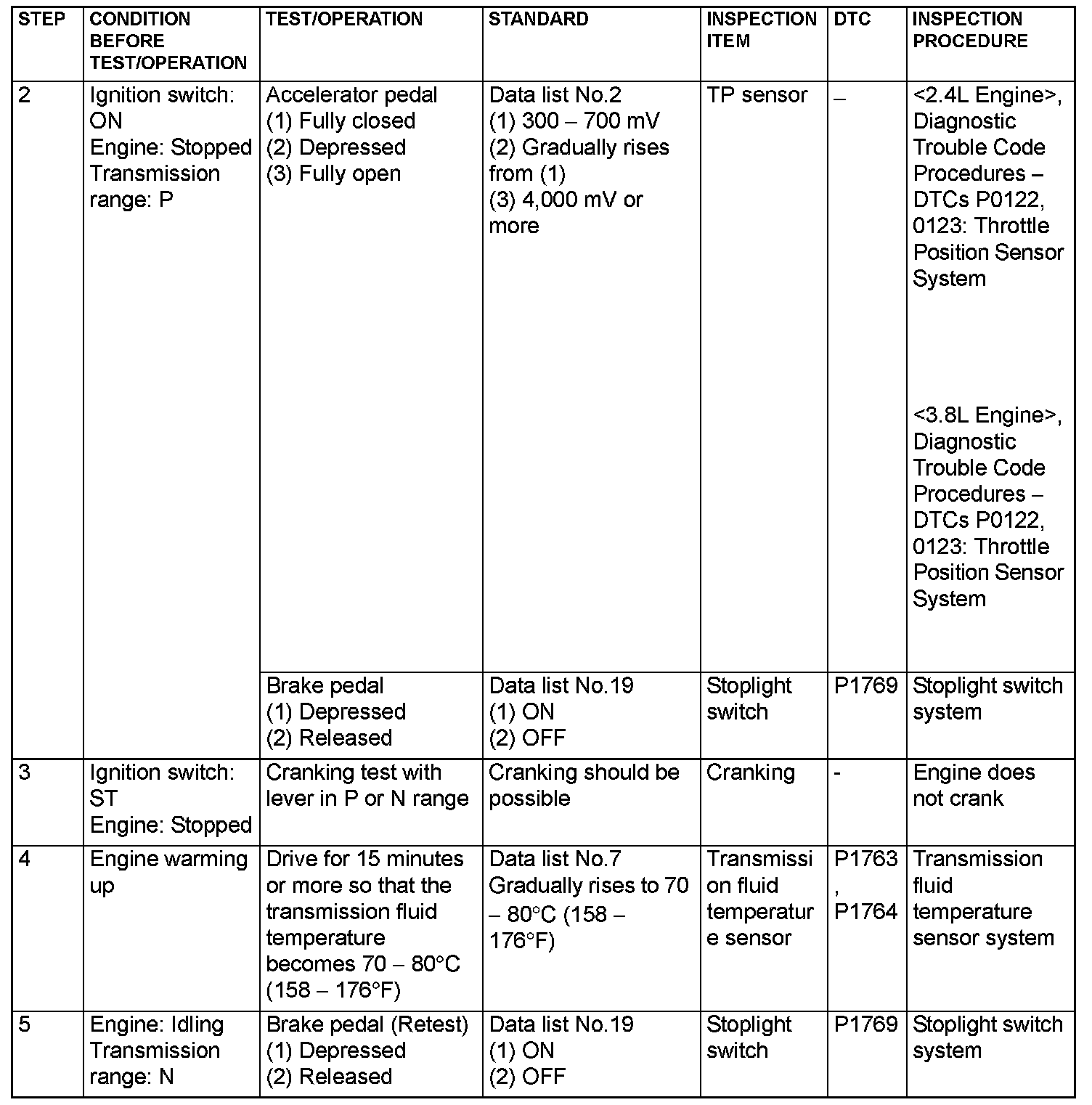

Step 2-5:
Step 5:

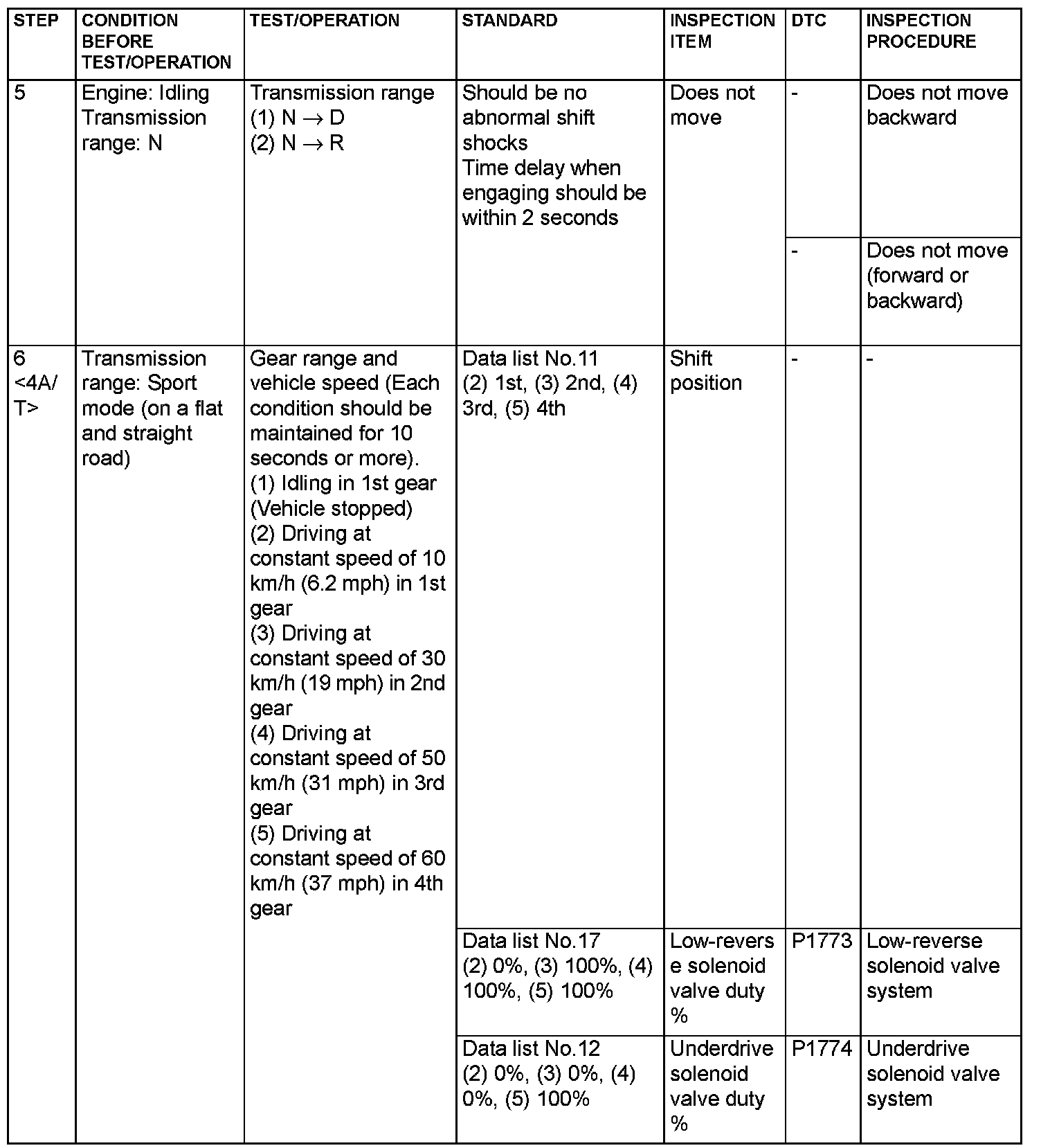

Step 5-6:
Step 6 (Part 1):

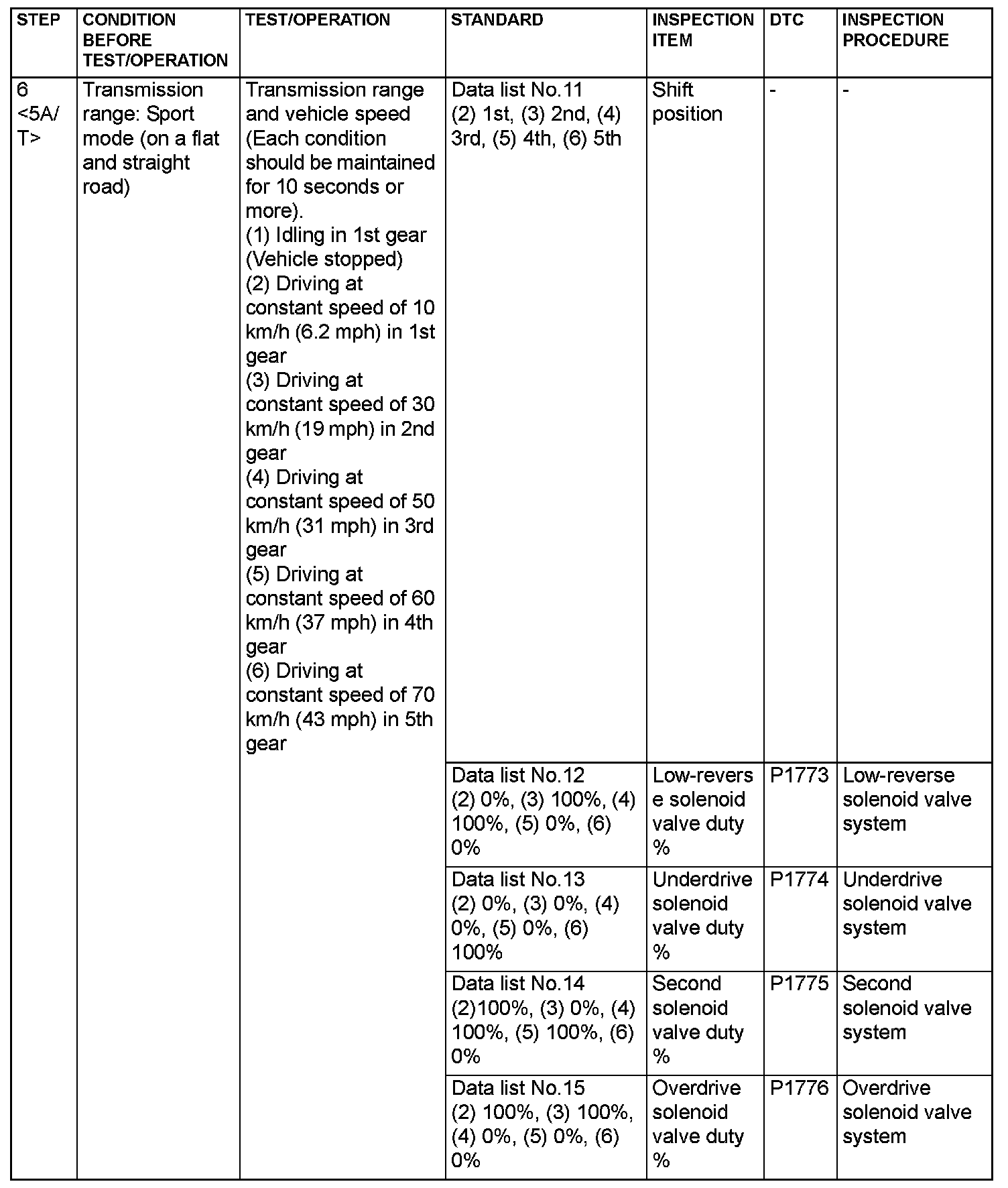

Step 6 (Part 2):

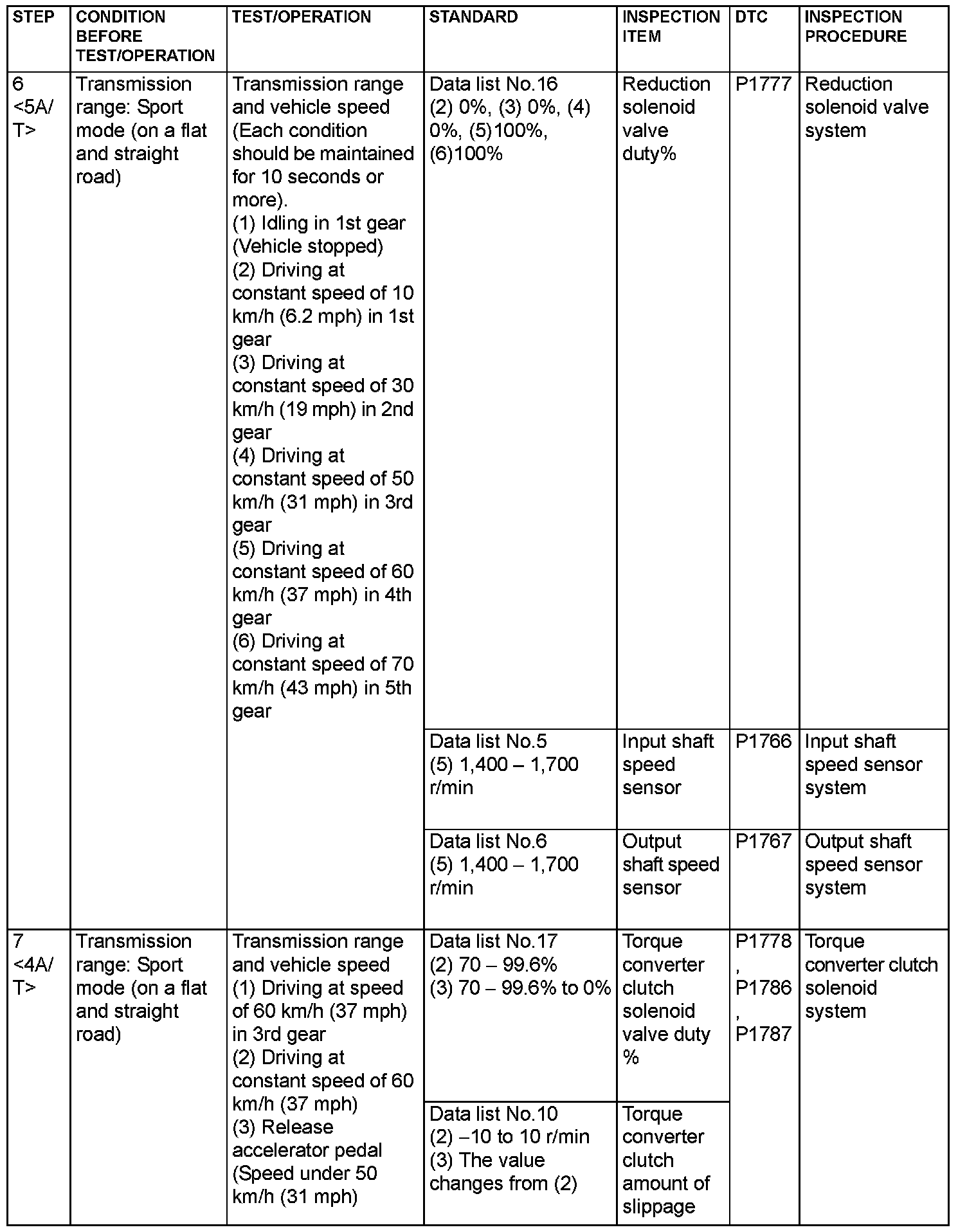

Step 6-7:

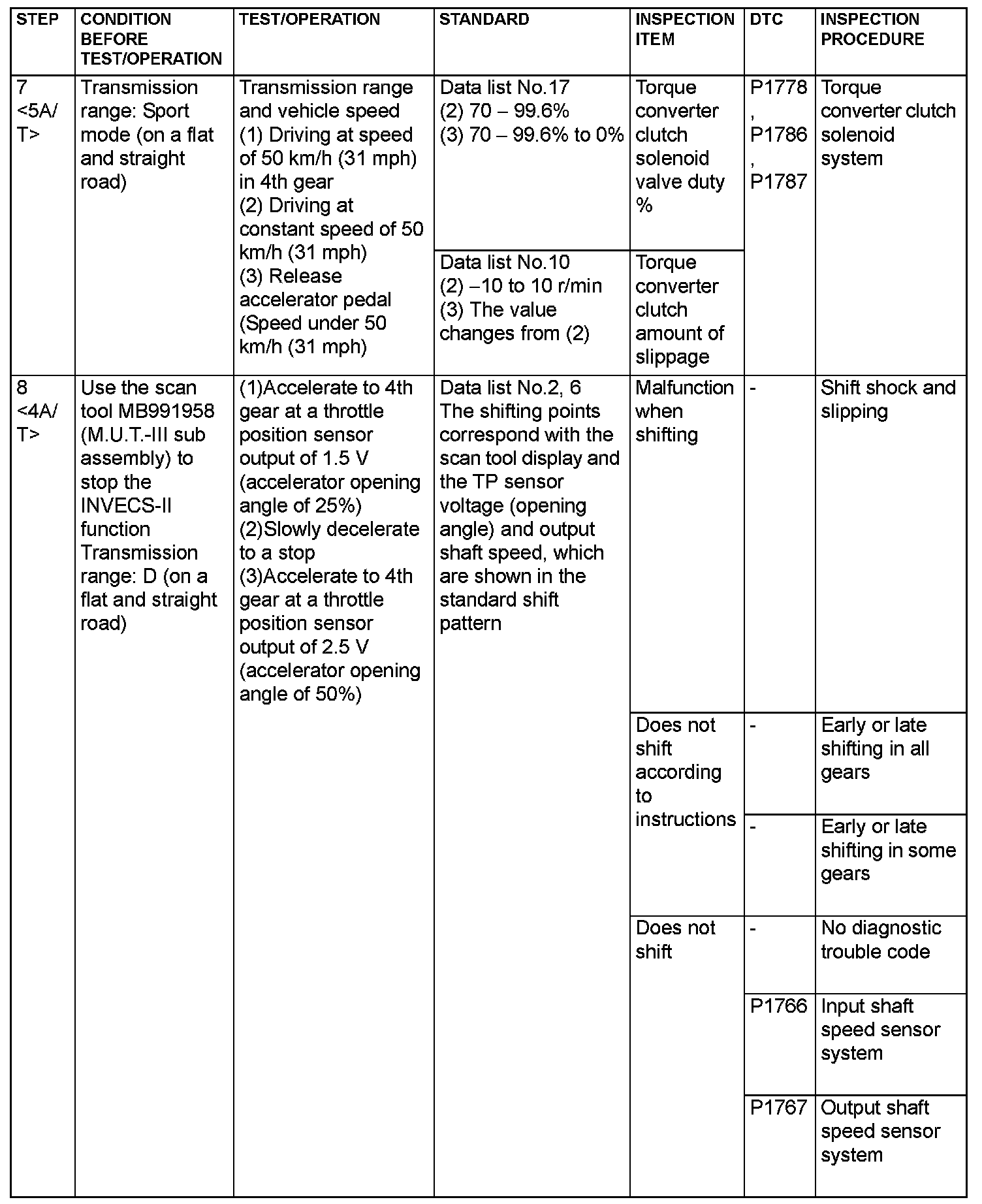

Step 7-8:

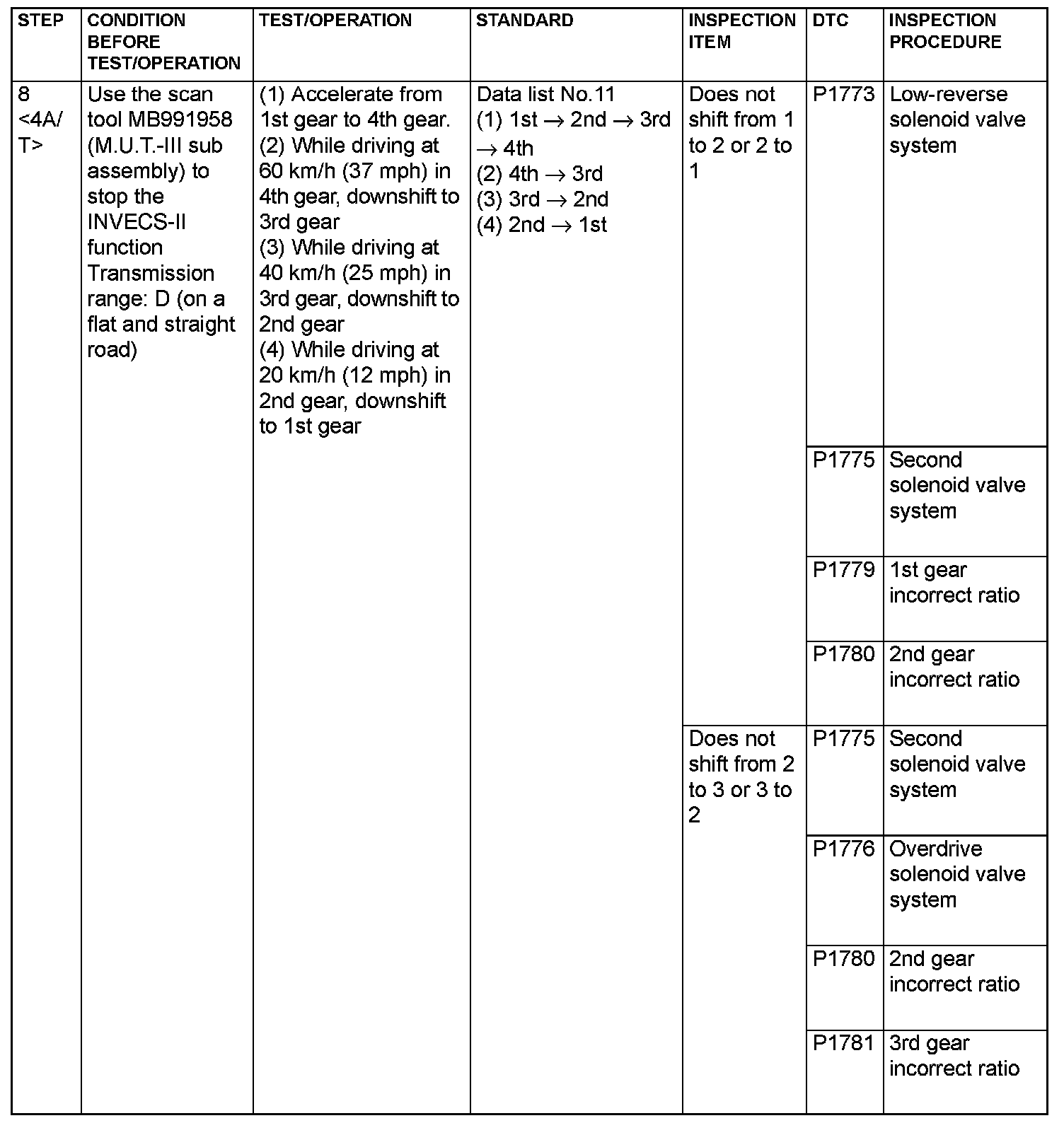

Step 8 (Part 1):

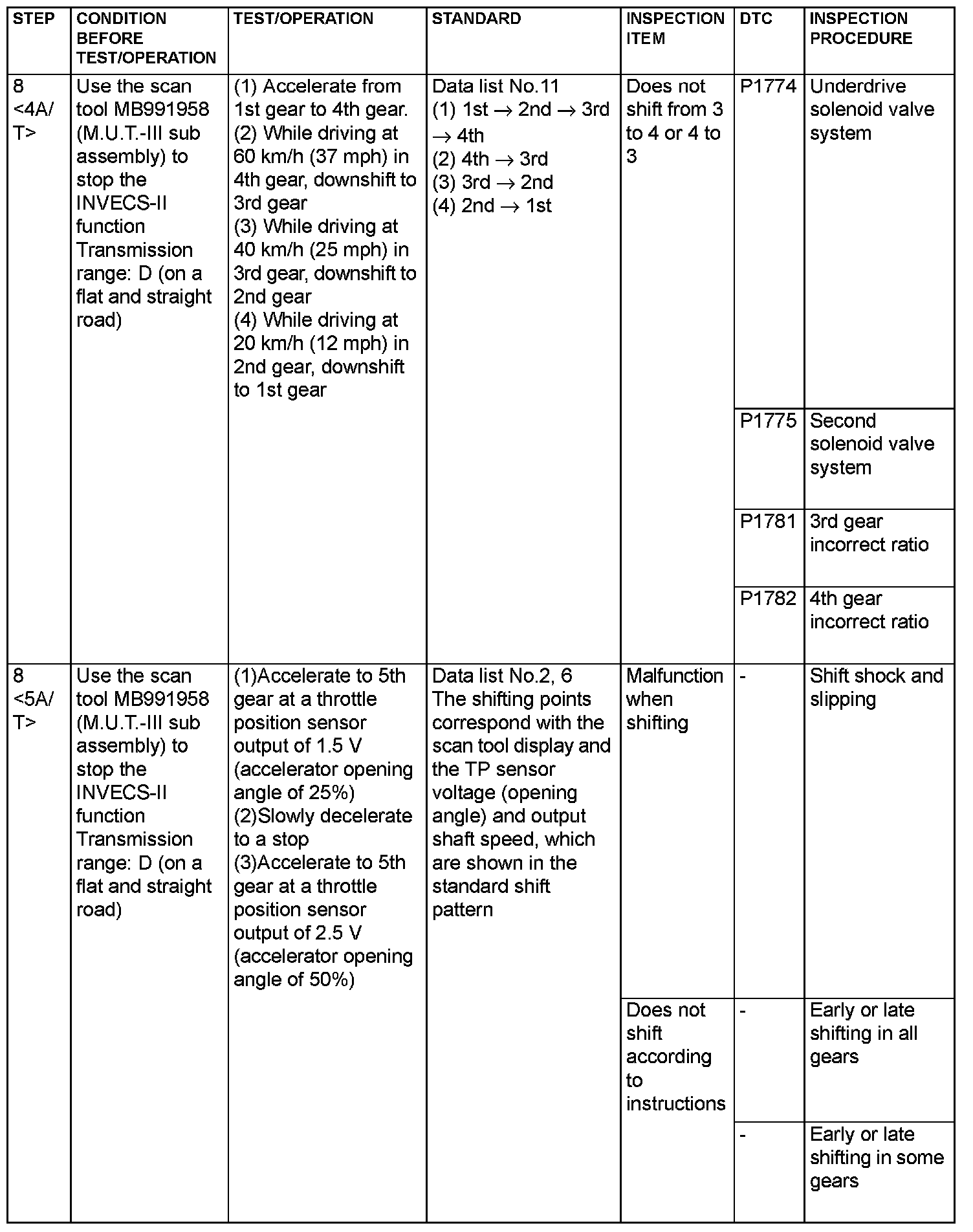

Step 8 (Part 2):

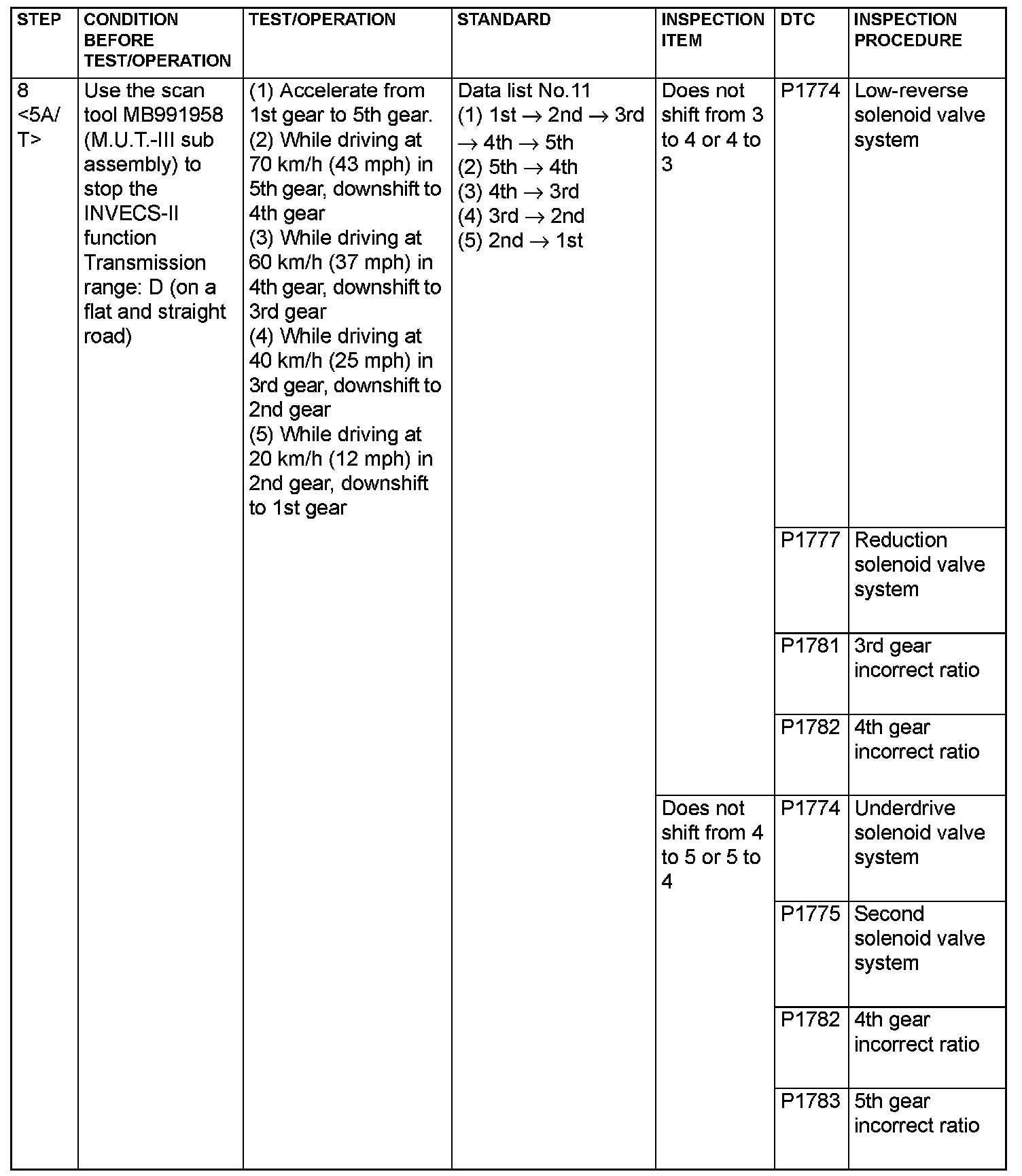

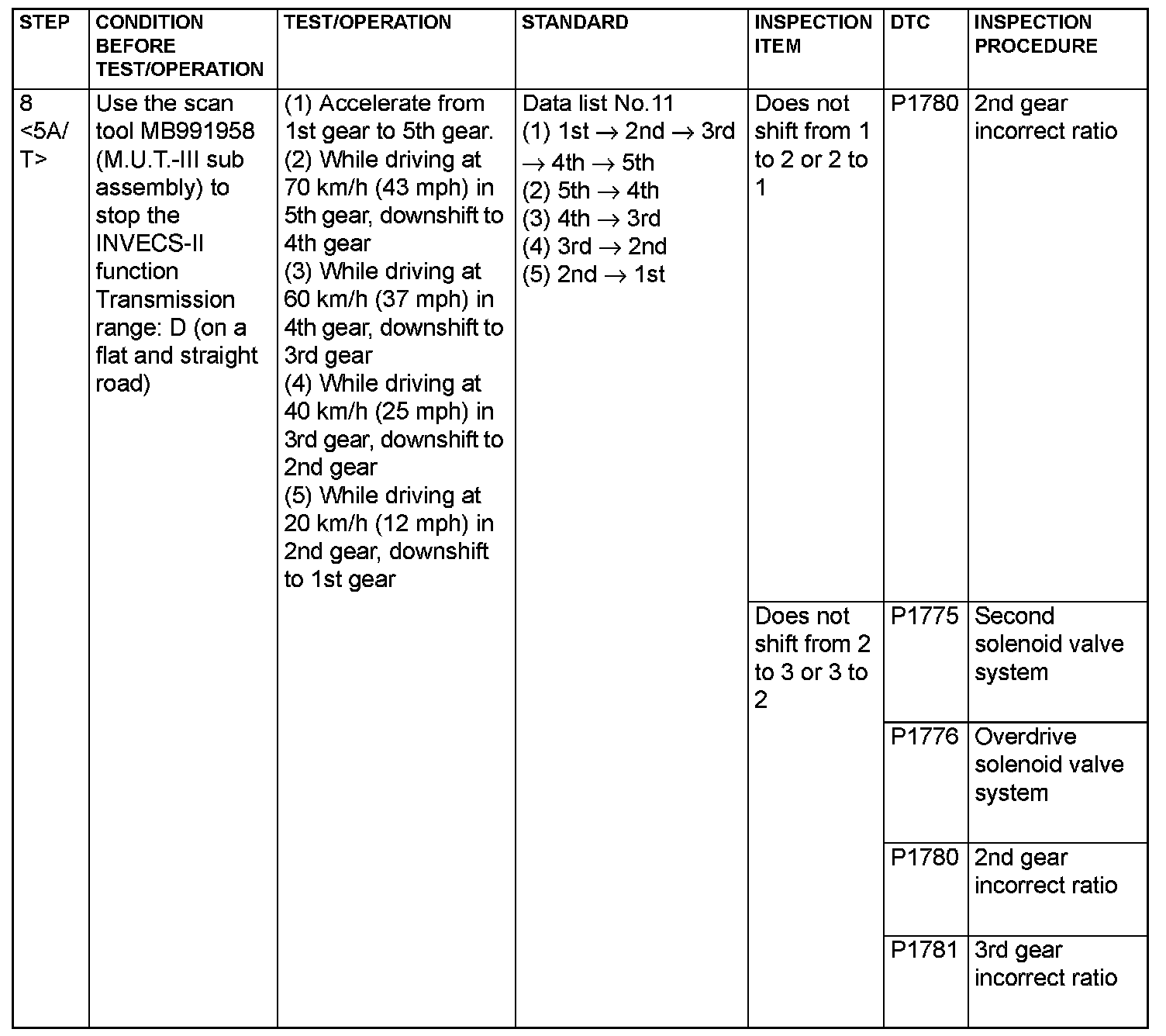

Step 8 (Part 3):

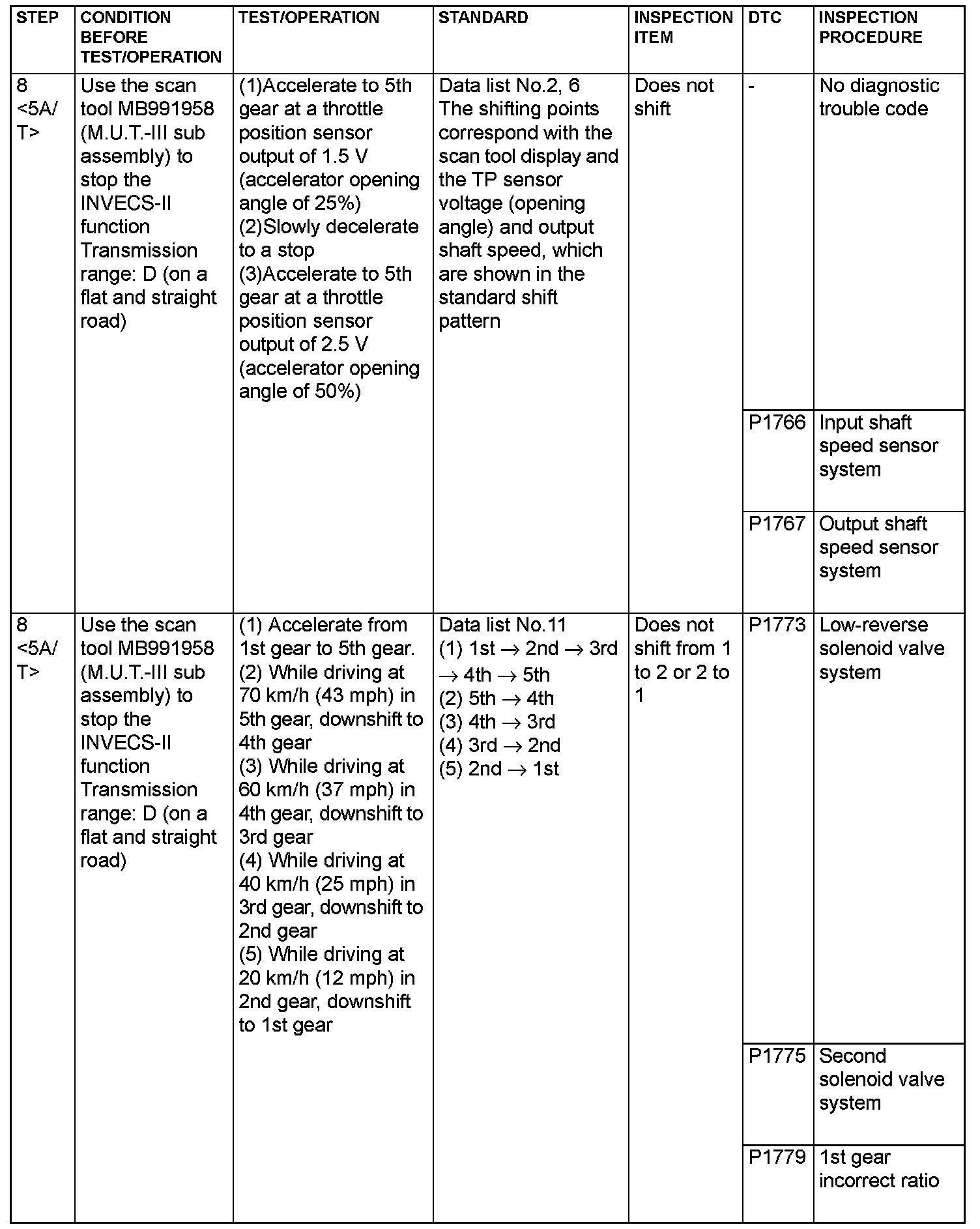

Step 8 (Part 4):
Step 8 (Part 5):

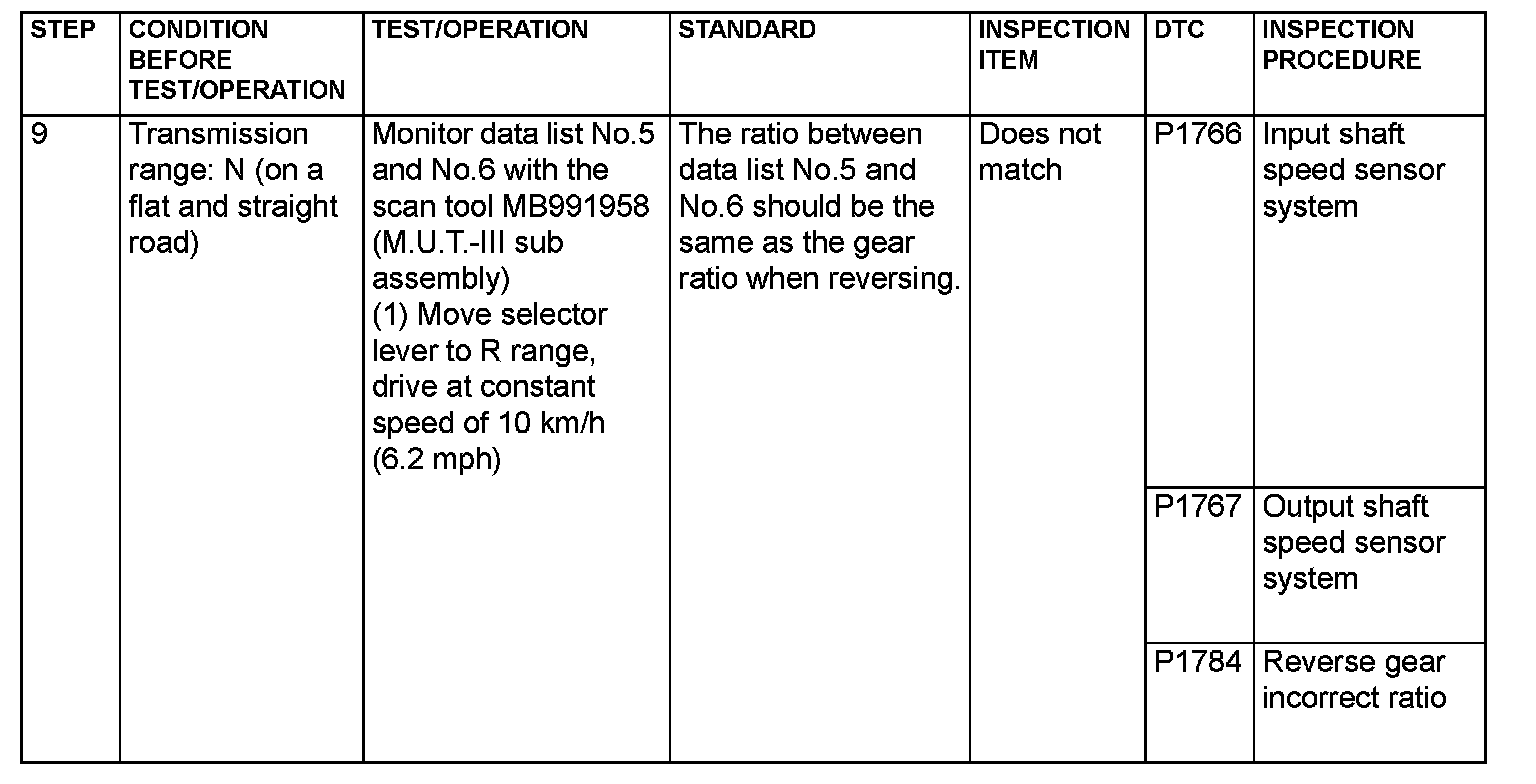

Step 9:
