Emission Control Systems: Description and Operation

GENERAL DESCRIPTION

The emission control system consists of the following subsystems:
- Positive crankcase ventilation PCV system
- Evaporative emission system
- Exhaust emission control system

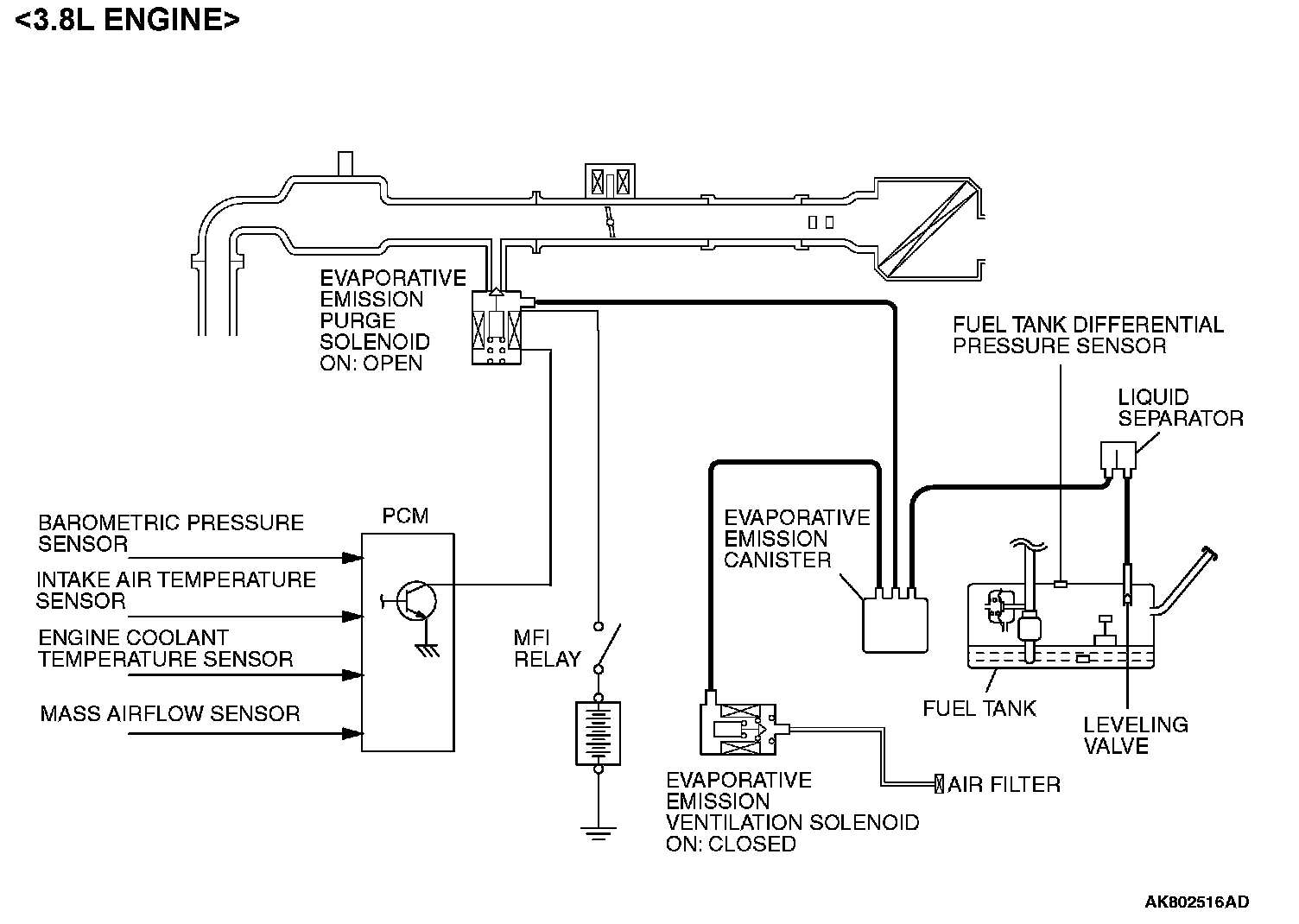

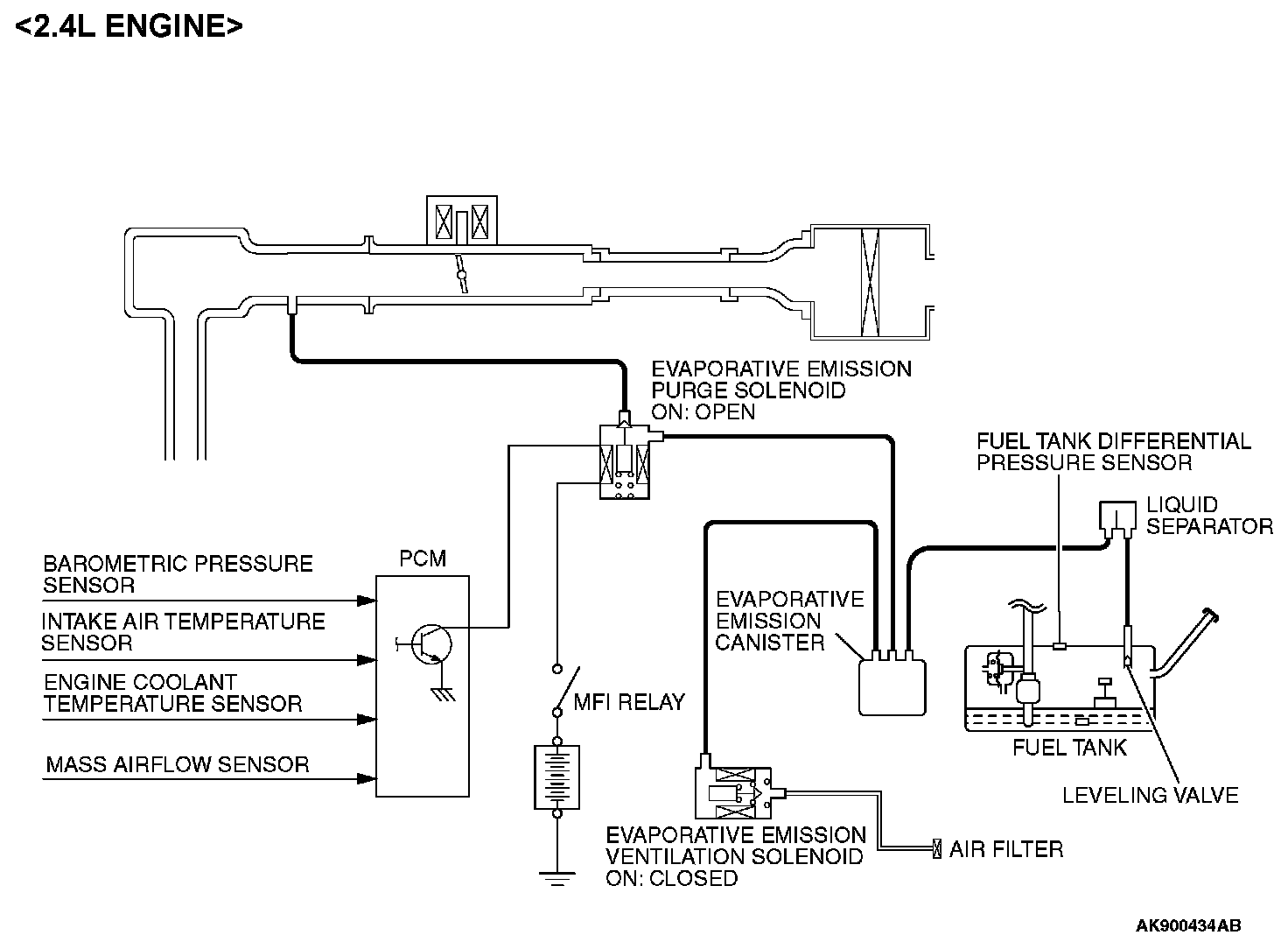

SYSTEM DIAGRAM
