Hazard Warning Switch: Service and Repair

HAZARD WARNING LIGHT SWITCH

REMOVAL AND INSTALLATION

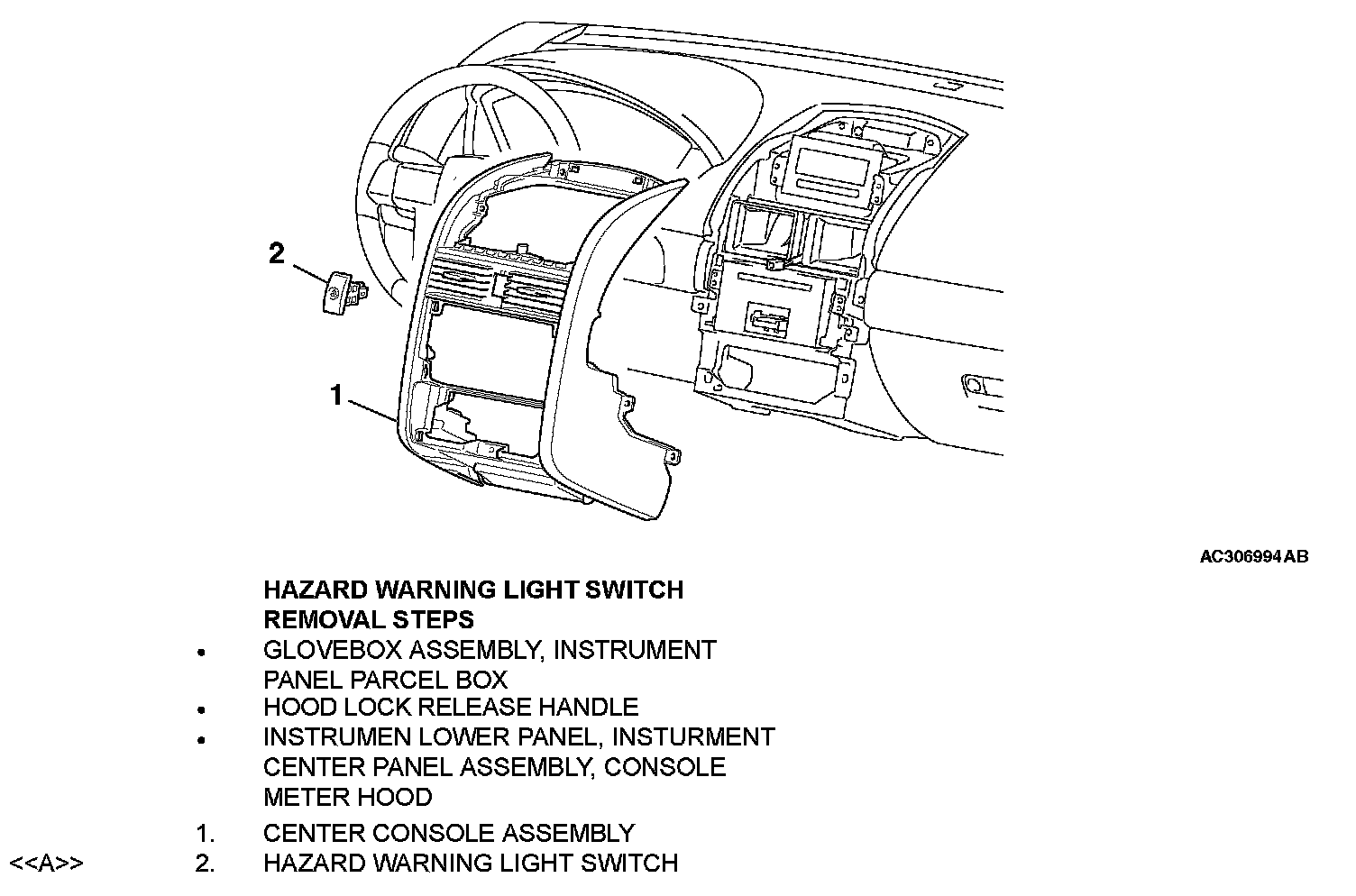

Removal Steps 1-2:

REMOVAL SERVICE POINT

[[A]] HAZARD WARNING LIGHT SWITCH

REMOVAL

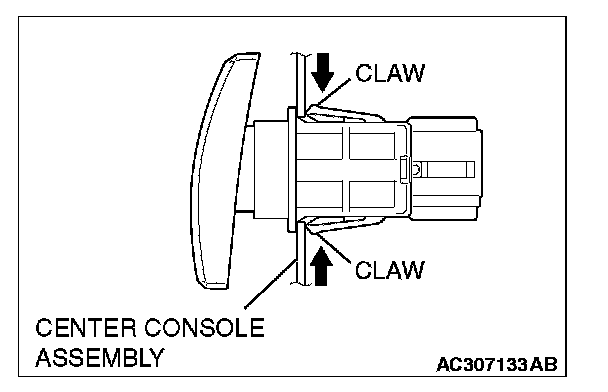

Remove the hazard warning light by pushing the claw toward the arrow in the illustration.
