DATA LIST REFERENCE TABLE
The following items of the ECU input data can be read using scan tool MB991958.

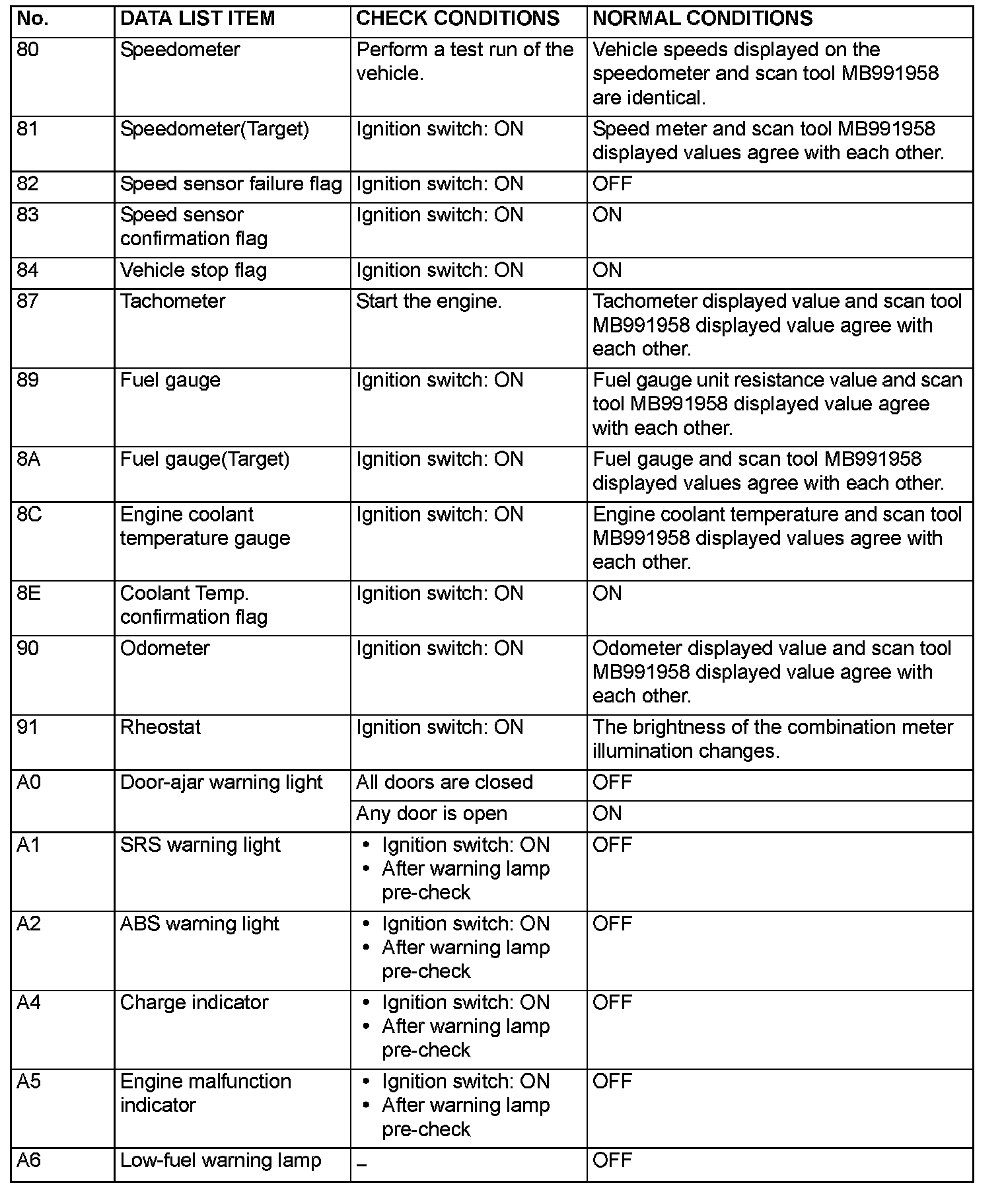

Data List Reference Table (Part 1):

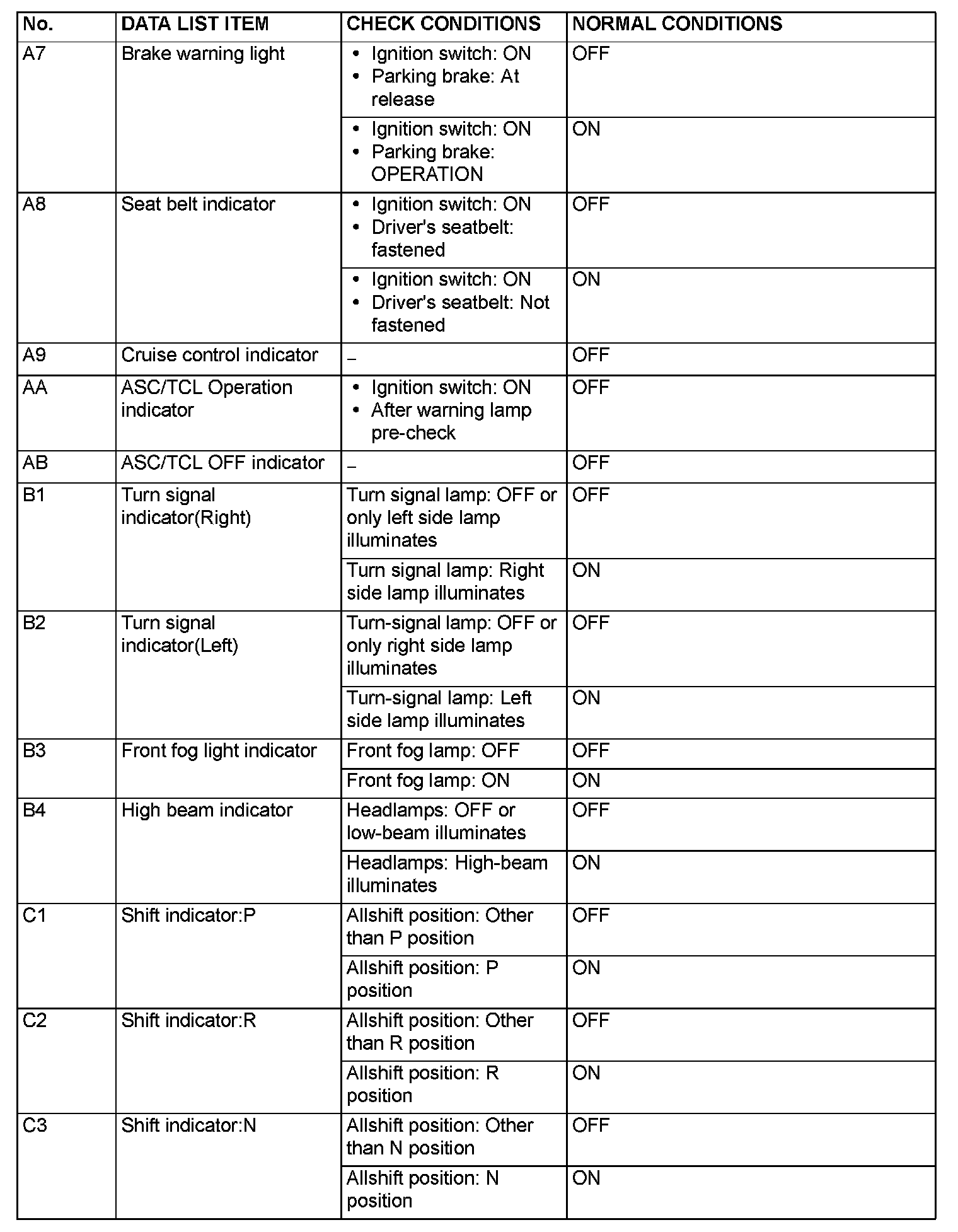

Data List Reference Table (Part 2):

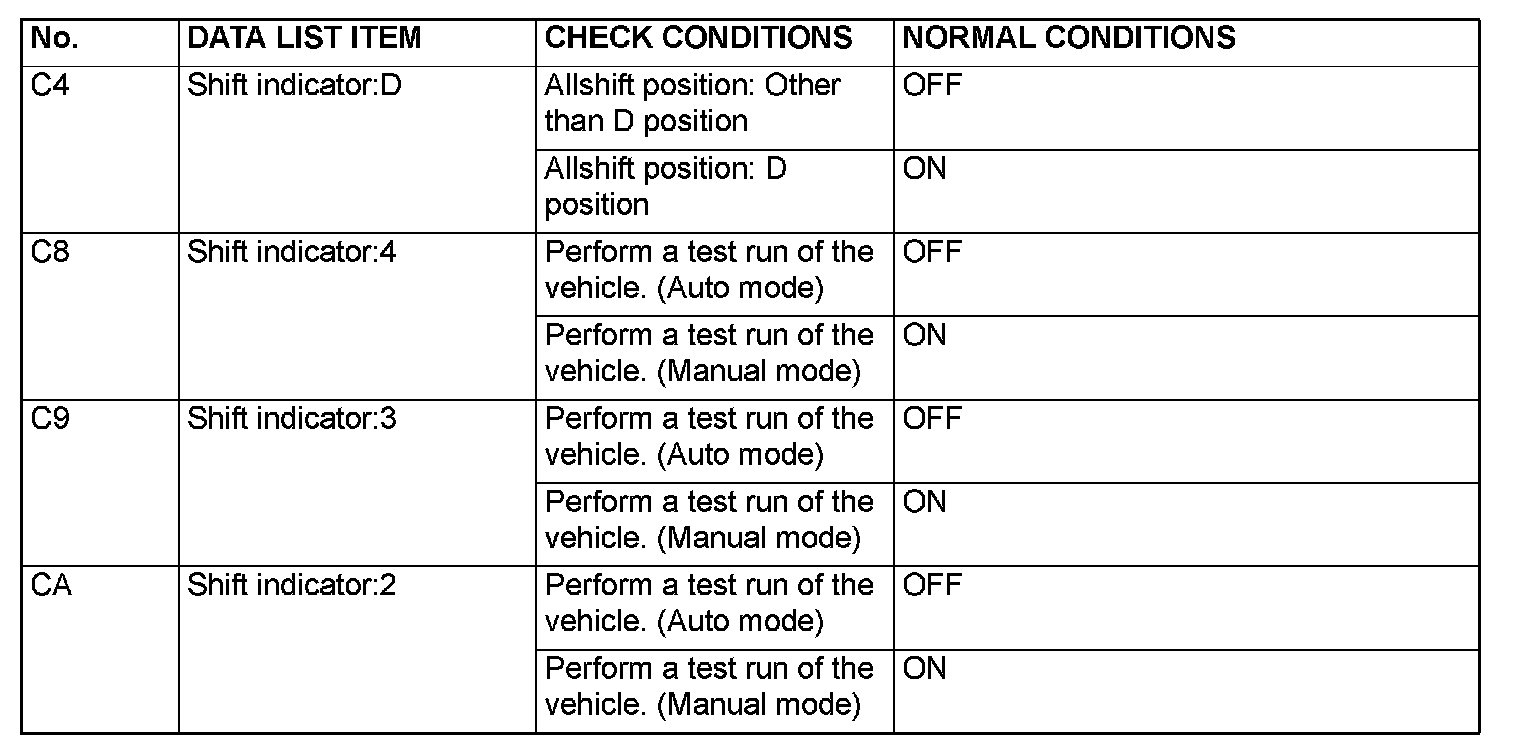

Data List Reference Table (Part 3):
