Combination Meter Terminal Check

COMBINATION METER TERMINAL CHECK

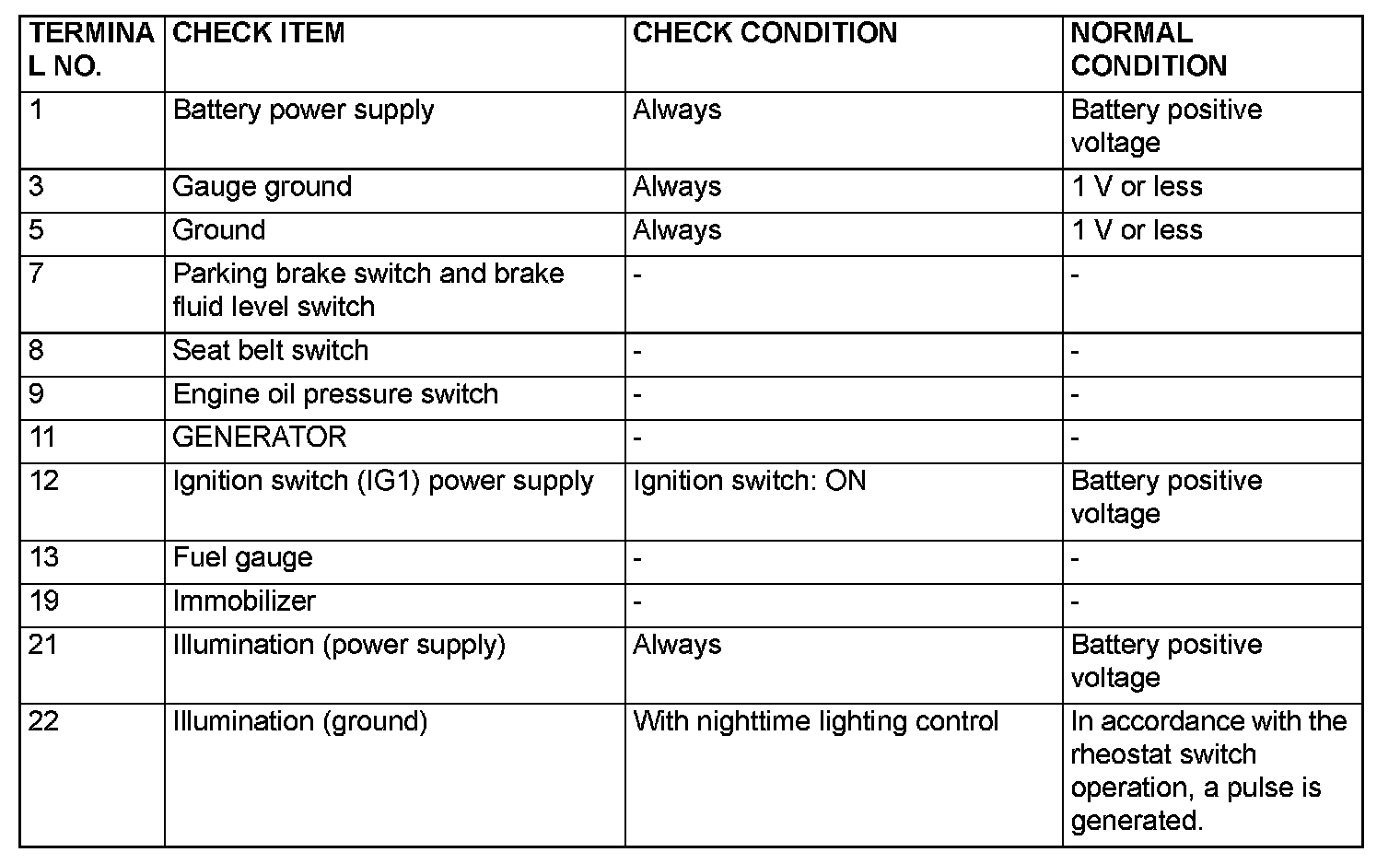

Measure the voltage between terminals using a voltmeter.

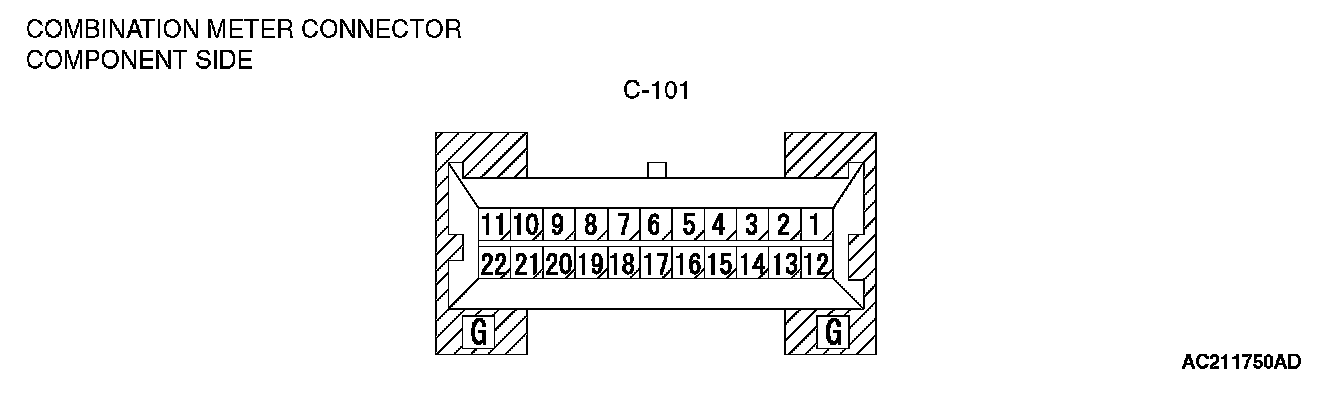

NOTE: The combination meter connector is fixed on the instrument panel directly, so you can not take measurement by backprobing.







CAUTION: Never take a measurement at terminals 14 and 15. If you do this, the CAN bus lines will be impaired.
