Outside Rear View Mirror

DOOR MIRROR

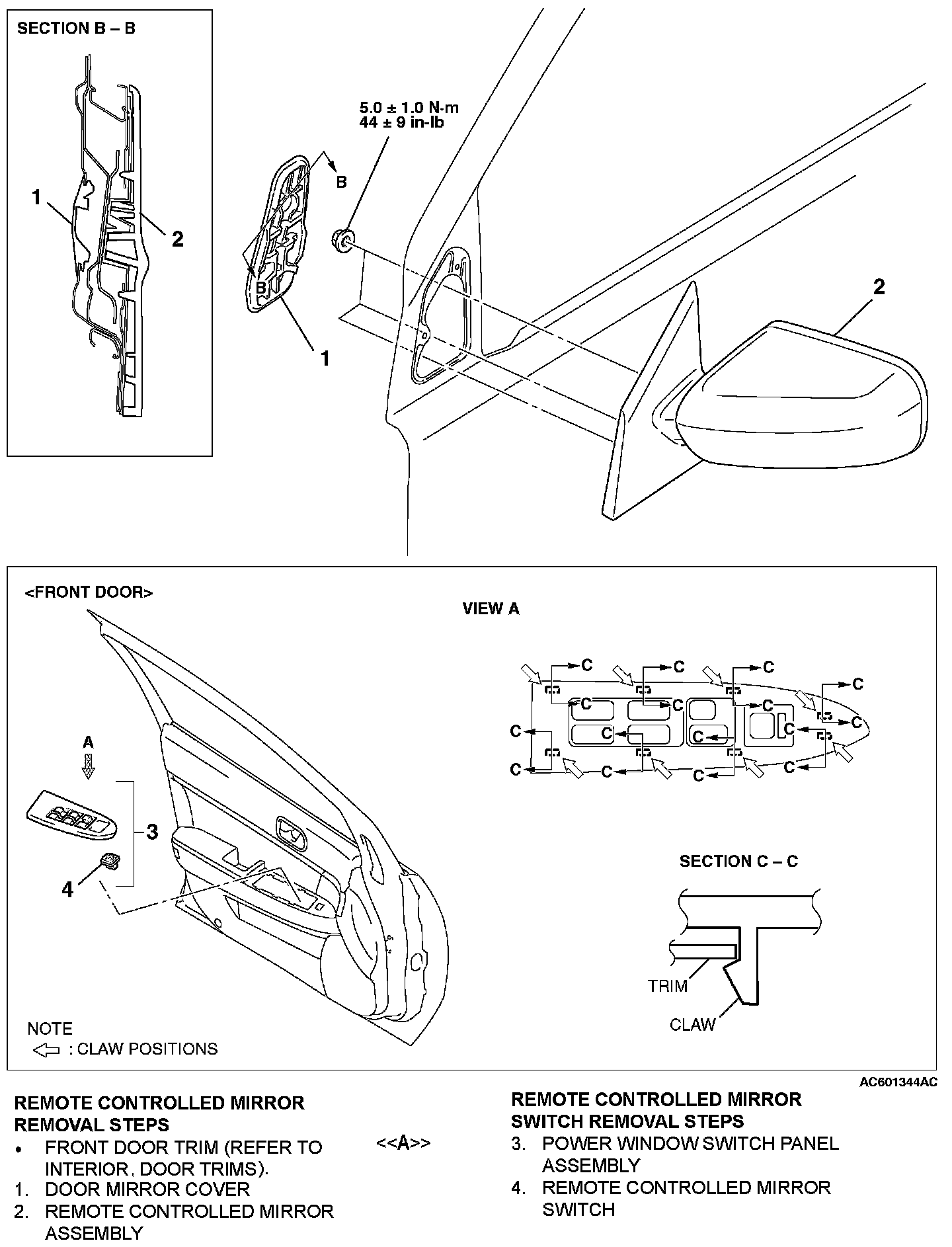

REMOVAL AND INSTALLATION

Removal Steps 1-4:

Required Special Tools:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

[[A]] POWER WINDOW SWITCH PANEL ASSEMBLY REMOVAL

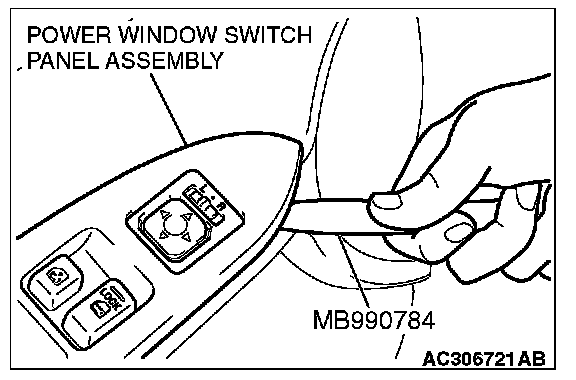

Insert the special tool ornament remover (MB990784) as shown to remove the power window switch panel assembly.
