Structural Brace: Service and Repair
The contents of this article and images reflect the changes identified in TSB-11-14-001.
LOOSE PANEL
REMOVAL AND INSTALLATION

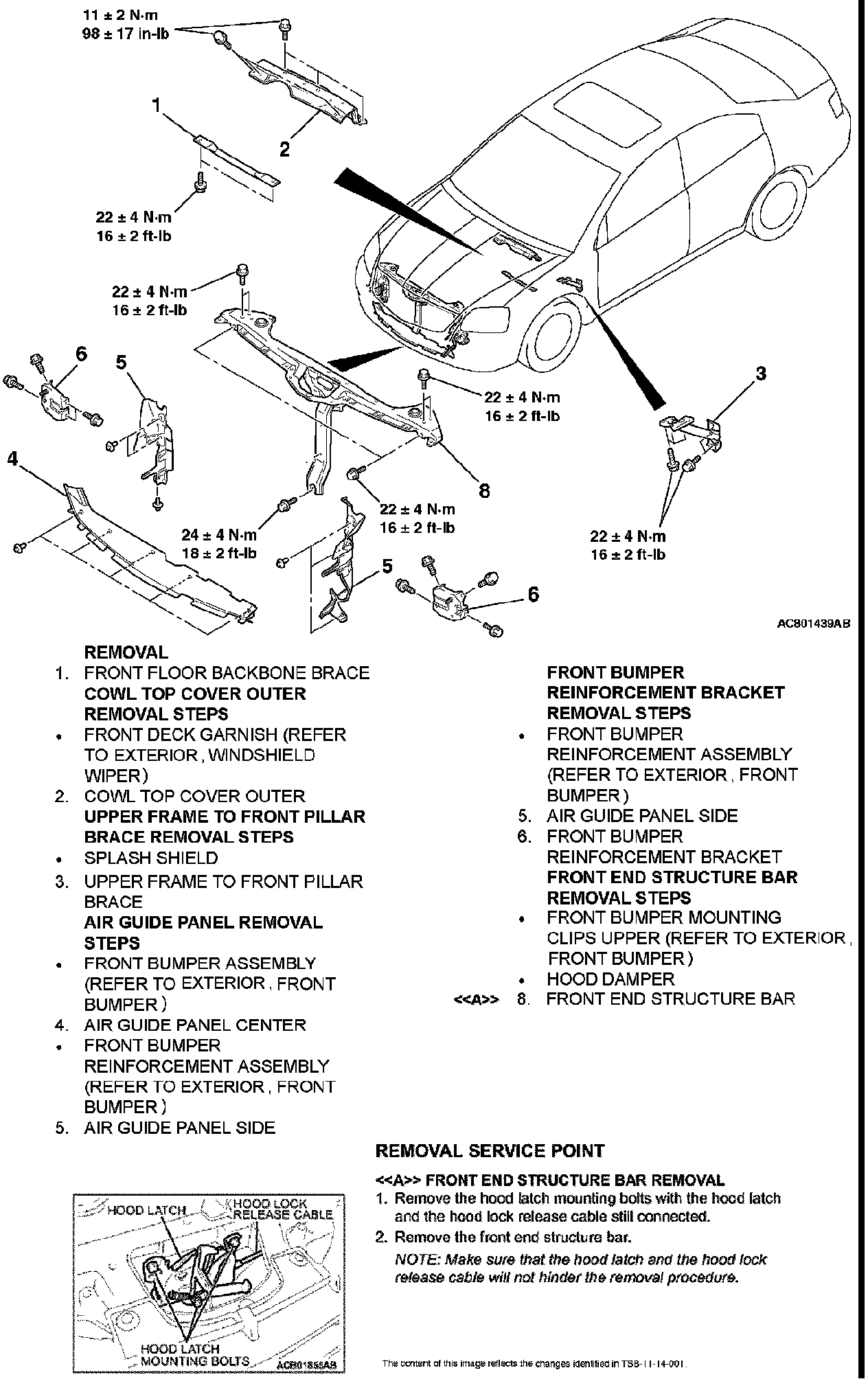

Removal Steps 1-8:
