Engine Roll Stopper and Center Member
ENGINE ROLL STOPPER AND CENTERMEMBERREMOVAL AND INSTALLATION
[2.4L ENGINE]
CAUTION
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
Pre-removal & Post-installation Operation:

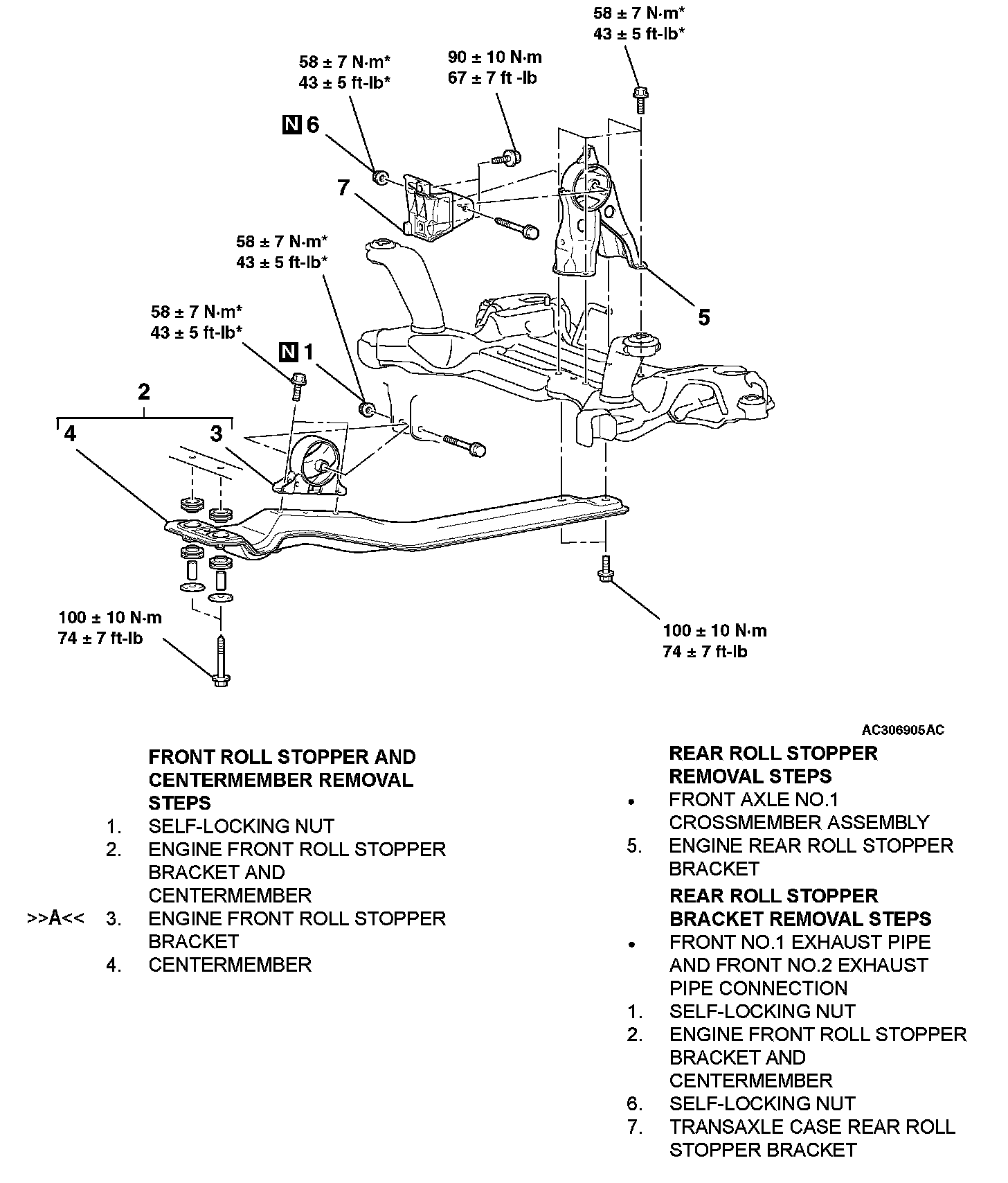

Removal Steps 1-7:
[3.8L ENGINE]
CAUTION
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle-horizontally and loading the full weight of the engine on the vehicle body.
Pre-removal & Post-installation Operation:
Removal Steps 1-7:
INSTALLATION SERVICE POINT
[A] ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION
Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
